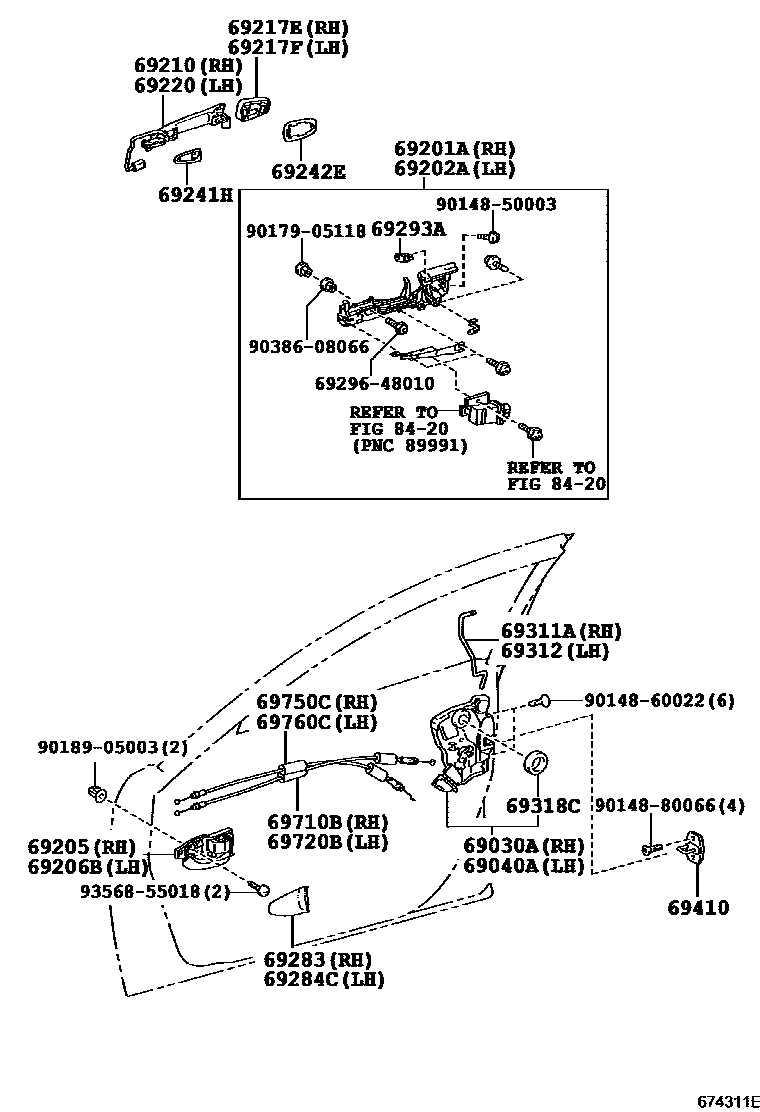

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42230iAHV40..JPP200603-200901

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-42250iAHV40..JPP200603-200901

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-33040iAHV40..JPP200603-200901

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-33040iAHV40..JPP200603-200901

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-33090-C0iAHV40..JPP200603-200901

BLACK,TRIM1#,4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-33100-C0iAHV40..JPP200603-200901

BLACK,TRIM1#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30300-A2iAHV40..JPP200901-201108

SUPER WHITE 2,040

main69210-30300-B2iAHV40..JPP200707-200901

SILVER ME.,1F7

main69210-30300-B4iAHV40..JPP200603-200707

SILVER ME.,1D4

main69210-30300-B5iAHV40..JPP200603-200901

GRAY ME.,1G3

main69210-30300-C0iAHV40..JPP200603-200901

BLACK,202

main69210-30300-D2iAHV40..JPP200901-201108

RED M.M.,3R3

main69210-30300-E1iAHV40..JPP200603-200901

BEIGE M. M.,4Q2

main69210-30300-E5iAHV40..JPP200901-201108

BEIGE ME.,4T8

main69210-30300-G1iAHV40..JPP200603-200710

LT.GREEN ME.,6U6

main69210-30300-G5iAHV40..JPP200901-201108

DK.GREEN MC.,6V4

main69210-30300-H0iAHV40..JPP200901-201108

TURQUOISE M.M.,776

main69210-30300-J4iAHV40..JPP200603-200901

LT.BLUE ME.,8S4

main69210-30300-J5iAHV40..JPP200901-201108

DK.BLUE MC.,8T5

main69210-30300-R1iAHV40..JPP200901-201108

LIGHT BLUE MICA METALLIC,8U8

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-60020-A2iAHV40..JPP200603-200901

SUPER WHITE 2,040

main69217-60020-B0iAHV40..JPP200603-200707

SILVER ME.,1D4

main69217-60020-C0iAHV40..JPP200901-201108

BLACK,202

main69217-60020-E7iAHV40..JPP200603-200901

BEIGE M. M.,4Q2

main69217-60020-G8iAHV40..JPP200603-200710

LT.GREEN ME.,6U6

main69217-60020-H1iAHV40..JPP200603-200901

TURQUOISE M.M.,776

main69217-60020-L1iAHV40..JPP200901-201108

BEIGE ME.,4T8

main69217-60020-P0iAHV40..JPP200707-200901

SILVER ME.,1F7

main69217-60020-P3iAHV40..JPP200901-201108

GRAY ME.,1G3

main69217-60020-Q3iAHV40..JPP200901-201108

DK.GREEN MC.,6V4

main69217-60020-R7iAHV40..JPP200603-200901

LT.BLUE ME.,8S4

main69217-60020-R8iAHV40..JPP200603-200901

DK.BLUE MC.,8T5

main69217-60020-V7iAHV40..JPP200901-201108

LIGHT BLUE MICA METALLIC,8U8

main69217-60020-X0iAHV40..JPP200901-201108

RED M.M.,3R3

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-28010-A0iAHV40..JPP200901-201108

SUPER WHITE 2,040

main69217-28010-B0iAHV40..JPP200603-200707

SILVER ME.,1D4

main69217-28010-C1iAHV40..JPP200901-201108

BLACK,202

main69217-28010-E7iAHV40..JPP200603-200901

BEIGE M. M.,4Q2

main69217-28010-G8iAHV40..JPP200603-200710

LT.GREEN ME.,6U6

main69217-28010-H1iAHV40..JPP200901-201108

TURQUOISE M.M.,776

main69217-28010-L1iAHV40..JPP200901-201108

BEIGE ME.,4T8

main69217-28010-P2iAHV40..JPP200901-201108

SILVER ME.,1F7

main69217-28010-P5iAHV40..JPP200901-201108

GRAY ME.,1G3

main69217-28010-Q3iAHV40..JPP200901-201108

DK.GREEN MC.,6V4

main69217-28010-V1iAHV40..JPP200603-200901

LT.BLUE ME.,8S4

main69217-28010-V2iAHV40..JPP200603-200901

DK.BLUE MC.,8T5

main69217-28010-W2iAHV40..JPP200901-201108

LIGHT BLUE MICA METALLIC,8U8

main69217-28010-X2iAHV40..JPP200901-201108

RED M.M.,3R3

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-30300-A2iAHV40..JPP200603-200901

SUPER WHITE 2,040

main69210-30300-B2iAHV40..JPP200707-200901

SILVER ME.,1F7

main69210-30300-B4iAHV40..JPP200603-200707

SILVER ME.,1D4

main69210-30300-B5iAHV40..JPP200603-200901

GRAY ME.,1G3

main69210-30300-C0iAHV40..JPP200901-201108

BLACK,202

main69210-30300-D2iAHV40..JPP200603-200901

RED M.M.,3R3

main69210-30300-E1iAHV40..JPP200603-200901

BEIGE M. M.,4Q2

main69210-30300-E5iAHV40..JPP200901-201108

BEIGE ME.,4T8

main69210-30300-G1iAHV40..JPP200603-200710

LT.GREEN ME.,6U6

main69210-30300-G5iAHV40..JPP200901-201108

DK.GREEN MC.,6V4

main69210-30300-H0iAHV40..JPP200603-200901

TURQUOISE M.M.,776

main69210-30300-J4iAHV40..JPP200603-200901

LT.BLUE ME.,8S4

main69210-30300-J5iAHV40..JPP200603-200901

DK.BLUE MC.,8T5

main69210-30300-R1iAHV40..JPP200901-201108

LIGHT BLUE MICA METALLIC,8U8

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-28060×2iAHV40..JPP200901-201108

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-33030×2iAHV40..JPP200705-200901

main69242-60030×2iAHV40..JPP200603-200704

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-33040-C0iAHV40..JPP200901-201108

BLACK,TRIM1#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-33040-C0iAHV40..JPP200603-200901

BLACK,TRIM1#,4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAHV40..JPP200901-201108

RH

main69293-12040iAHV40..JPP200603-200901

LH

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-33070iAHV40..JPP200603-200901

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-33070iAHV40..JPP200603-200901

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iAHV40..JPP200603-200901

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010×2iAHV40..JPP200603-200901

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-33060iAHV40..JPP200603-200901

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-33060iAHV40..JPP200603-200901

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-33040iAHV40..JPP200603-200901

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-33040iAHV40..JPP200603-200901

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9017905118

main90179-05118

9018905003

main90189-05003

9038608066

main90386-08066

9356855018

main93568-55018

32 parts on this diagram · 1 diagram in section
