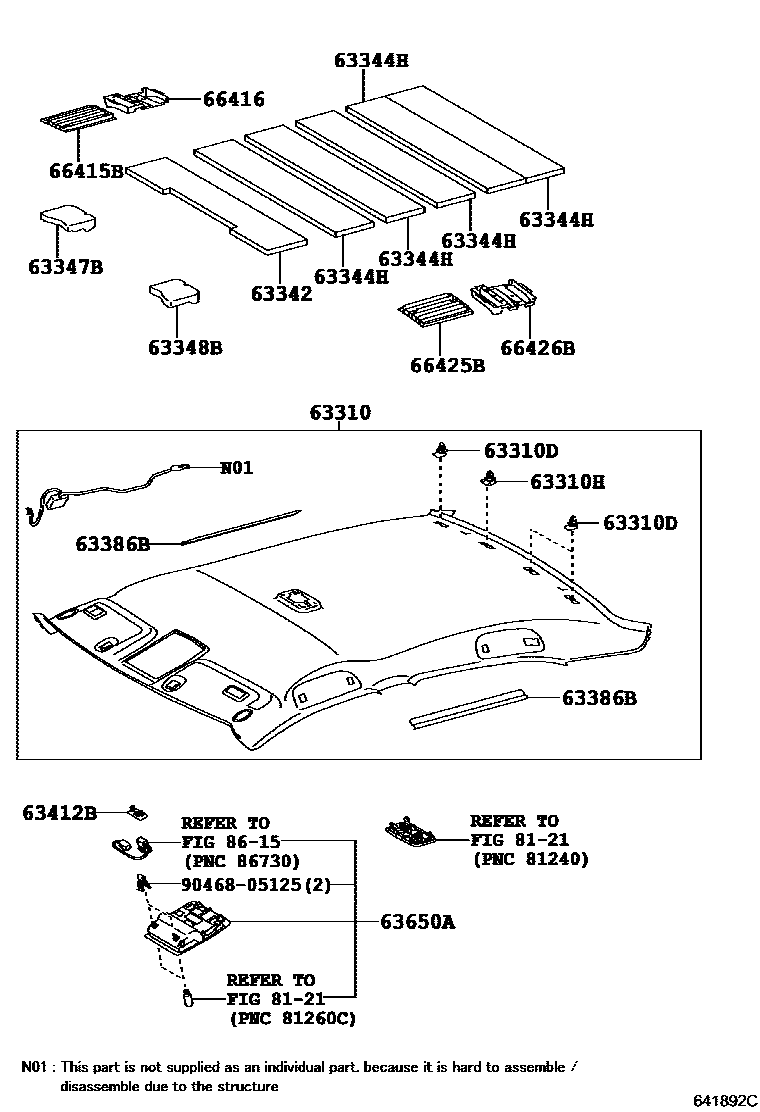

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF) 0003 1 0004 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-33510-B0supersedes 63310-33570-B0iAHV40..JPP200603-200901

MOON ROOF-WITH,GRAY,TRIM1#

main63310-33510-E0supersedes 63310-33570-E0iAHV40..JPP200603-200901

MOON ROOF-WITH,GREGE,TRIM4#

main63310-33620-B0supersedes 63310-33570-B0iAHV40..JPP200901-201108

MOON ROOF-WITH,GRAY,TRIM1#

main63310-33620-E0supersedes 63310-33570-E0iAHV40..JPP200901-201108

MOON ROOF-WITH,GREGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-09126×3iAHV40..JPP200603-200901

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181iAHV40..JPP200603-200901

63342PAD, ROOF SILENCER, NO.2

main63342-33080iAHV40..JPP200603-200901

63344HPAD, ROOF SILENCER, NO.4

main63344-33070×3iAHV40..JPP200901-201108

63347BPAD, ROOF SIDE RAIL SILENCER, RH

main63347-33020iAHV40..JPP200603-200901

63348BPAD, ROOF SIDE RAIL SILENCER, LH

main63348-33020iAHV40..JPP200603-200901

63386BREINFORCEMENT, ROOF HEADLINING TRIM

main63386-33010×2iAHV40..JPP200603-200901

63412BRETAINER, ROOF CONSOLE

main63412-33010iAHV40..JPP200603-200901

63650ABOX ASSY, ROOF CONSOLE

main63650-33090-B0supersedes 63650-33260-B0iAHV40..JPP200901-201108

GARAGE OPENER-WITHOUT,GRAY,TRIM1#

main63650-33090-E0supersedes 63650-33260-E0iAHV40..JPP200901-201108

GARAGE OPENER-WITHOUT,GREGE,TRIM4#

main63650-33120-B0supersedes 63650-33260-B0iAHV40..JPP200901-201108

MOON ROOF-WITH&GARAGE OPENER-WITHOUT,GRAY,TRIM1#

main63650-33120-E0supersedes 63650-33260-E0iAHV40..JPP200901-201108

MOON ROOF-WITH&GARAGE OPENER-WITHOUT,GREGE,TRIM4#

main63650-33140-B0supersedes 63650-33260-B0iAHV40..JPP200901-201108

MOON ROOF-WITH,GRAY,TRIM1#

main63650-33140-E0supersedes 63650-33260-E0iAHV40..JPP200901-201108

MOON ROOF-WITH,GREGE,TRIM4#

main63650-33310-B0supersedes 63650-33260-B0iAHV40..JPP200603-200712

MOON ROOF-WITH,GRAY,TRIM1#

main63650-33310-E0supersedes 63650-33260-E0iAHV40..JPP200603-200712

MOON ROOF-WITH,GREGE,TRIM4#

main63650-33311-B0supersedes 63650-33261-B0iAHV40..JPP200801-200901

MOON ROOF-WITH,GRAY,TRIM1#

main63650-33311-E0supersedes 63650-33261-E0iAHV40..JPP200801-200901

MOON ROOF-WITH,GREGE,TRIM4#

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-33040supersedes 66415-33030iAHV40..JPP200603-200901

MOON ROOF-WITH

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-33020iAHV40..JPP200603-200901

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66415-33040supersedes 66425-33030iAHV40..JPP200603-200901

MOON ROOF-WITH

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-33020iAHV40..JPP200603-200901

8121INTERIOR LAMP

→ Go to FIG 81-21

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

9046805125

main90468-05125

17 parts on this diagram · 4 diagrams in section
