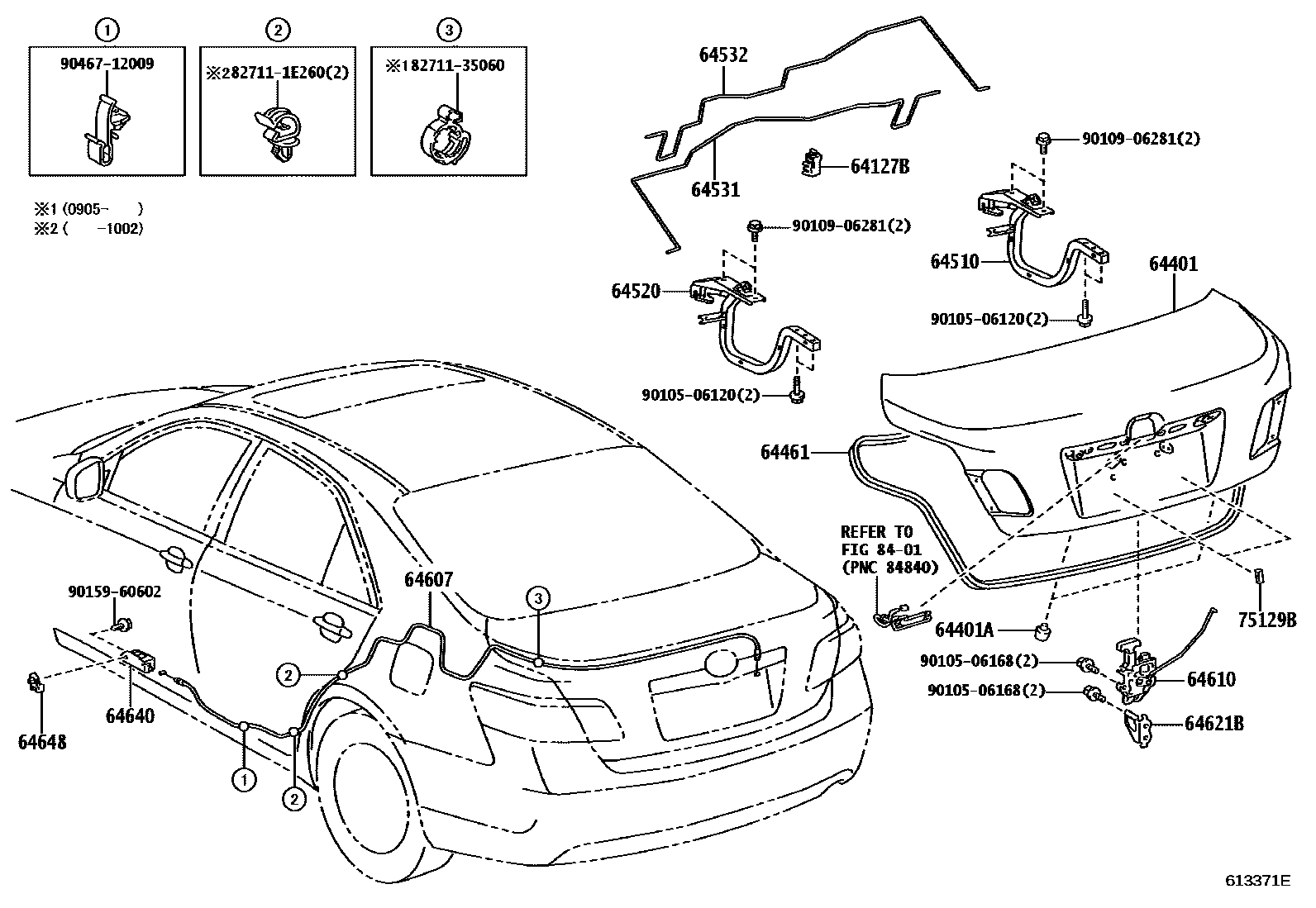

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iAHV40..JPP200603-200708

main64127-33070iAHV40..JPP200709-200901

main64127-33071iAHV40..JPP200901-201108

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33441iAHV40..JPP201001-201108

main64401-33461iAHV40..JPP200911-201001

main64401-33450supersedes 64401-33460iAHV40..JPP200901-200910

KOREA SPEC&BACK MONITOR-WITH

main64401-33451supersedes 64401-33460iAHV40..JPP200911-201108

KOREA SPEC&BACK MONITOR-WITH

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09116×2iAHV40..JPP200901-201108

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33070iAHV40..JPP200603-200901

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-33060iAHV40..JPP200603-200901

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-33060iAHV40..JPP200901-201108

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-33220iAHV40..JPP200603-200901

main64531-33221iAHV40..JPP200901-201108

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-33220iAHV40..JPP200603-200901

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33160iAHV40..JPP200603-200901

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-33120iAHV40..JPP200603-200901

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-33010iAHV40..JPP200603-200901

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-33050iAHV40..JPP200603-200901

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iAHV40..JPP200603-200901

75129BCUSHION, REAR LICENCE PLATE

main75129-13020×2iAHV40..JPP200603-200901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9015960602

main90159-60602

9046712009

main90467-12009

22 parts on this diagram · 1 diagram in section
