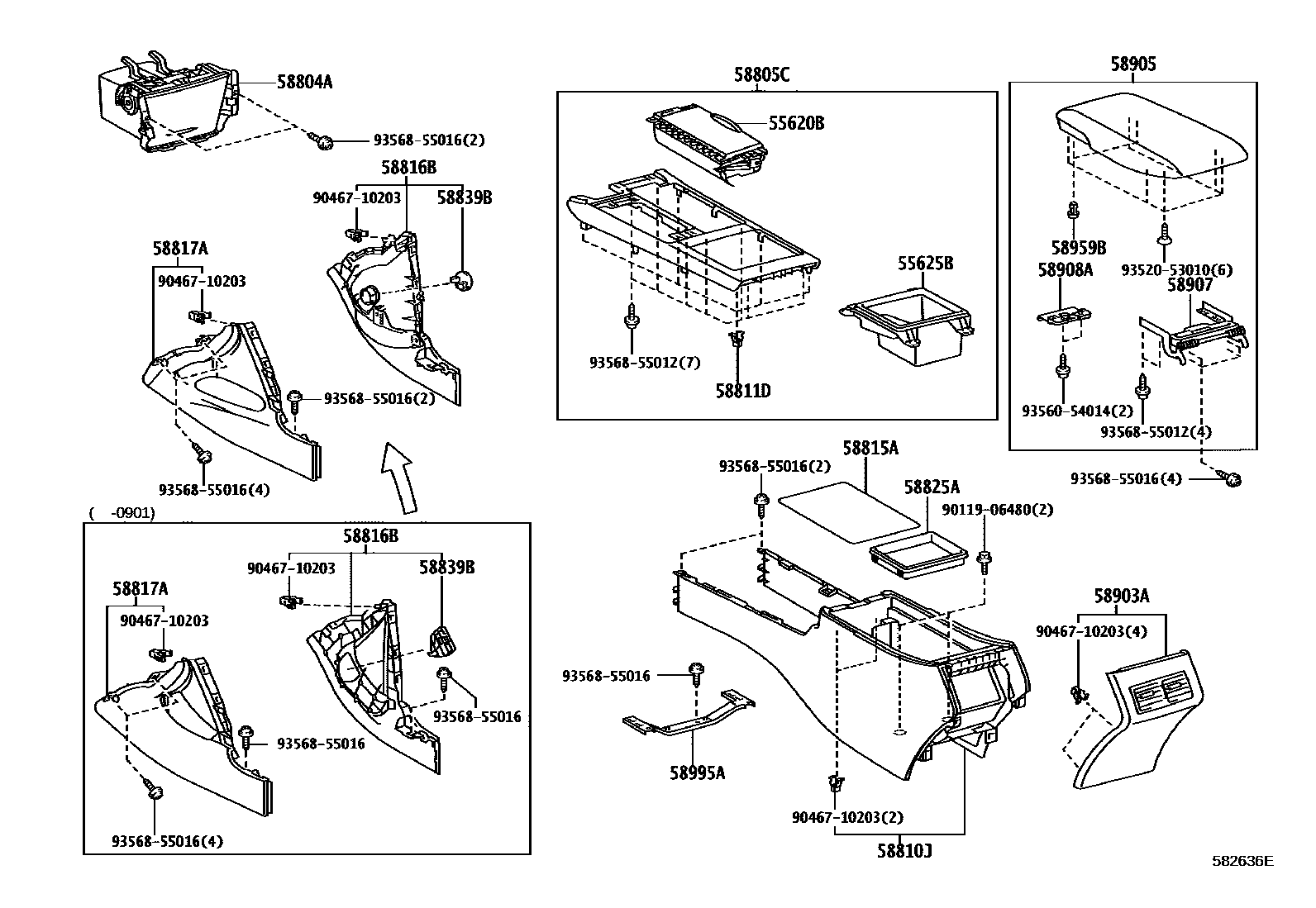

CONSOLE BOX & BRACKET
55620BHOLDER, INSTRUMENT PANEL CUP
HIGH PACKAGE
55625BTRAY, INSTRUMENT PANEL CUP HOLDER
HIGH PACKAGE
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
HIGH PACKAGE,GRAY,TRIM1#
HIGH PACKAGE,GREGE,TRIM4#
58810JBOX ASSY, CONSOLE
GRAY,TRIM1#
GREGE,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
58815ACARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
58825APOCKET, CONSOLE BOX
58839BCOVER, CONSOLE BOX HOLE, NO.2
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
58903APANEL SUB-ASSY, CONSOLE REAR END
GRAY,TRIM1#
GREGE,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
HIGH PACKAGE,GRAY,TRIM1#
HIGH PACKAGE,GREGE,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
HIGH PACKAGE
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9011906480
main90119-06480
9046710203
main90467-10203
9352053010
main93520-53010
9356054014
main93560-54014
9356855012
main93568-55012
9356855016
main93568-55016
23 parts on this diagram · 2 diagrams in section
