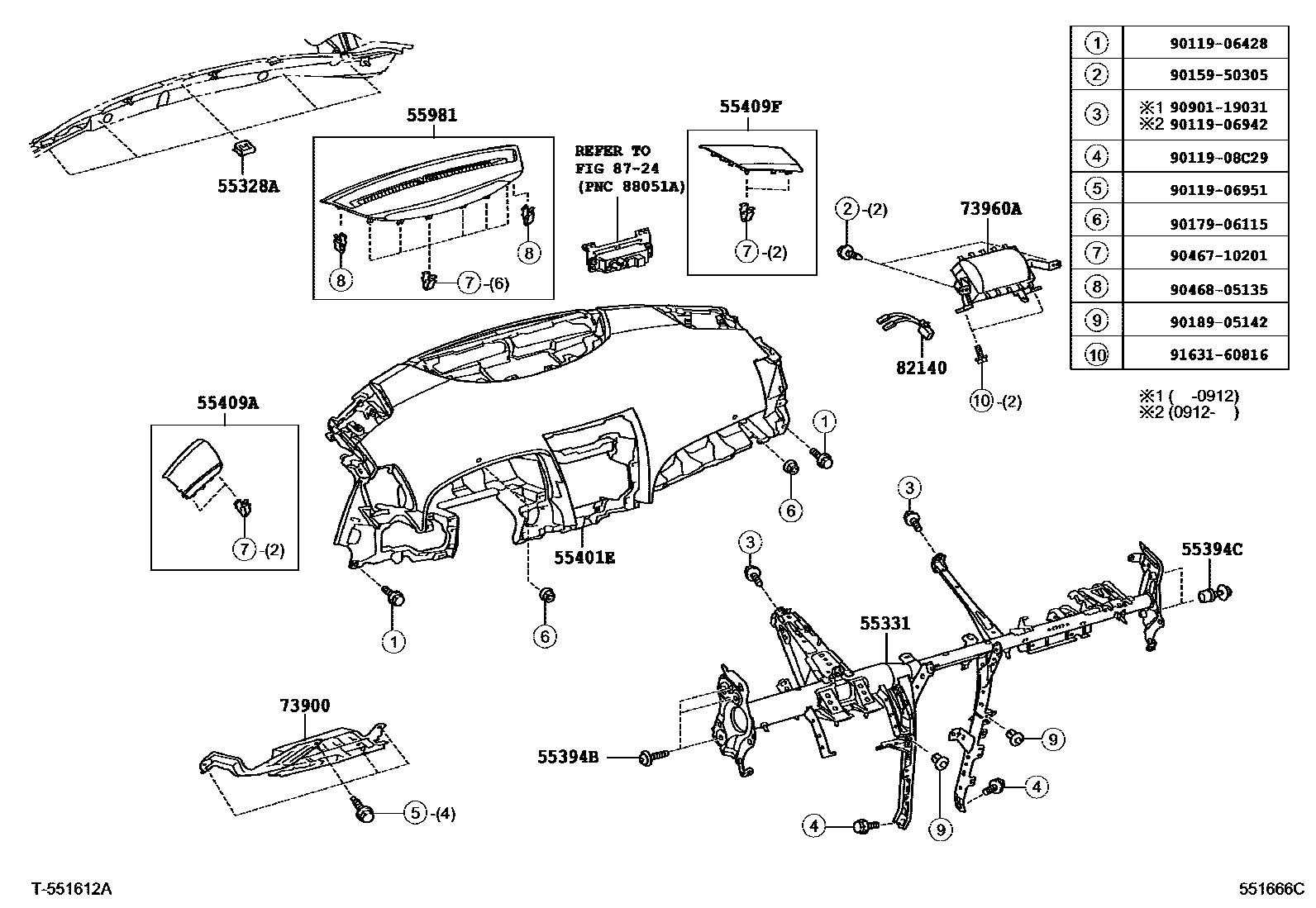

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160×5iAHV40..JPP200603-200703

main55328-33120×5iAHV40..JPP200704-200710

main55328-50170×5iAHV40..JPP200711-200901

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33330iAHV40..JPP200603-200802

main55330-33331iAHV40..JPP200803-200901

main55330-33360iAHV40..JPP200901-201108

55394BBOLT, INSTRUMENT PANEL

main55394-30021×3iAHV40..JPP200603-200901

55394CBOLT, INSTRUMENT PANEL

main55394-33040×2iAHV40..JPP200603-200604

main55394-33041×2iAHV40..JPP200604-200901

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33220-B0iAHV40..JPP200603-200807

MD.GRAY,TRIM1#

main55401-33220-E0iAHV40..JPP200603-200807

ASH BROWN,TRIM4#

main55401-33221-B0iAHV40..JPP200808-200901

MD.GRAY,TRIM1#

main55401-33221-E0iAHV40..JPP200901-201108

ASH BROWN,TRIM4#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-33080-B1iAHV40..JPP200901-201108

MD.GRAY,TRIM1#

main55472-33080-E0iAHV40..JPP200603-200901

ASH BROWN,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-33040-B1iAHV40..JPP200603-200901

MD.GRAY,TRIM1#

main55473-33040-E0iAHV40..JPP200603-200901

ASH BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33110-B1iAHV40..JPP200603-200901

MD.GRAY,TRIM1#

main55981-33110-E0iAHV40..JPP200603-200901

ASH BROWN,TRIM4#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-33020-B0iAHV40..JPP200901-201108

GRAY,TRIM1#

main73900-33020-E0iAHV40..JPP200901-201108

GREGE,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33090iAHV40..JPP200603-200901

main73960-33120iAHV40..JPP200901-201108

82140WIRE ASSY, INSTRUMENT PANEL

main82140-33010iAHV40..JPP200603-200901

8724AIR PURIFIER OR ION GENERATOR

→ Go to FIG 87-24

9011906428

main90119-06428

9011906942

main90119-06942

9011906951

main90119-06951

9011908C29

main90119-08C29

9015950305

main90159-50305

9017906115

main90179-06115

9018905142

main90189-05142

9046710201

main90467-10201

9046805135

main90468-05135

9090119031

main90901-19031

9163160816

main91631-60816

23 parts on this diagram · 4 diagrams in section
