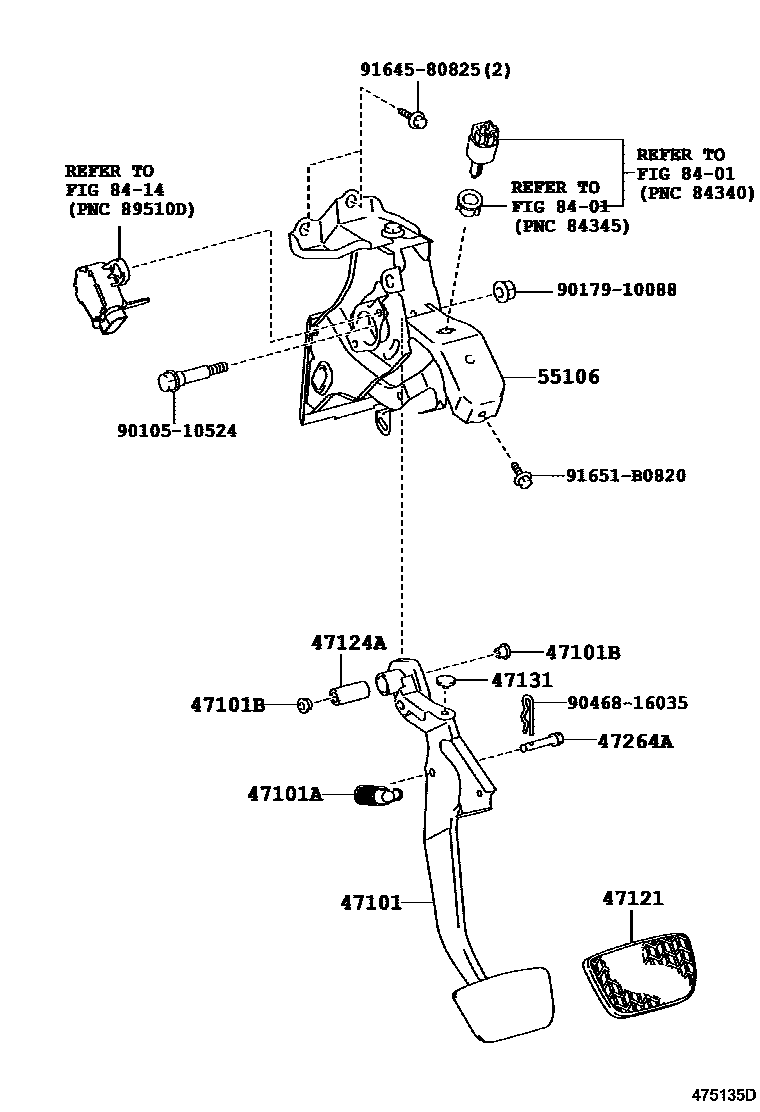

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-33140iAHV40..JPP200603-200901

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15003iAHV40..JPP200603-200901

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iAHV40..JPP200603-200901

47121PAD, BRAKE PEDAL

main47121-50020iAHV40..JPP200603-200901

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAHV40..JPP200603-200901

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAHV40..JPP200603-200901

47264APIN(FOR PUSH ROD)

main47148-33011iAHV40..JPP200603-200901

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33140iAHV40..JPP200603-200901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9010510524

main90105-10524

9017910088

main90179-10088

9046816035

main90468-16035

9164580825

main91645-80825

91651B0820

main91651-B0820

15 parts on this diagram · 1 diagram in section
