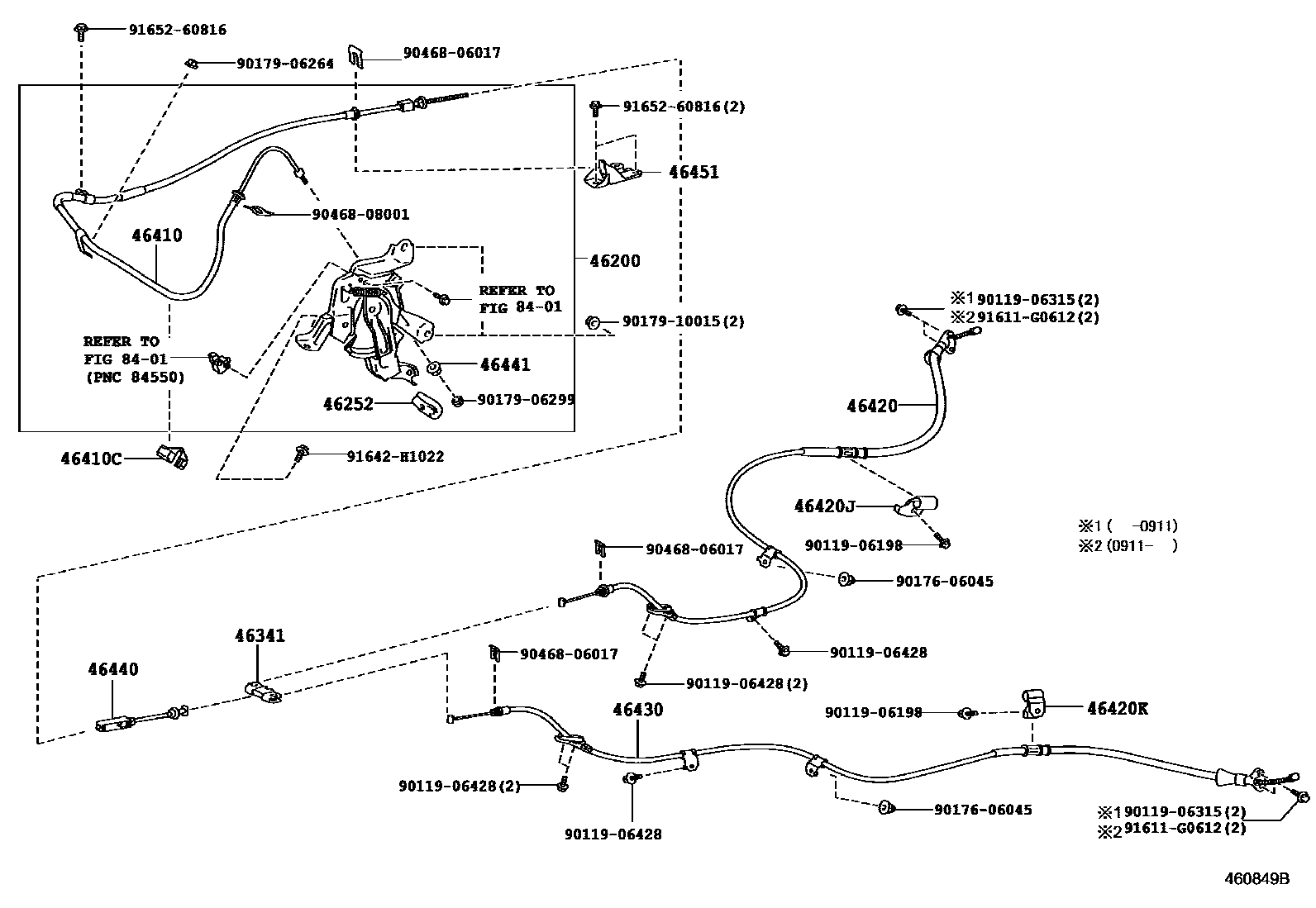

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-33090iAHV40..JPP200603-201108

46252PAD, PARKING PEDAL

main46252-22010iAHV40..JPP200603-201108

46341EQUALIZER, PARKING BRAKE

main46341-33030iAHV40..JPP200603-201108

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-33170iAHV40..JPP200603-201108

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-33010iAHV40..JPP200603-201108

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-33180iAHV40..JPP200603-201108

sub46420-33181

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C61iAHV40..JPP200603-201108

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01C62iAHV40..JPP200603-201108

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-33170iAHV40..JPP200603-201108

sub46430-33171

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-33061iAHV40..JPP200603-201108

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iAHV40..JPP200603-201108

46451BRACKET, CABLE SUPPORT

main46451-33100iAHV40..JPP200603-201108

8401

9011906198

main90119-06198

9011906315

main90119-06315

9011906428

main90119-06428

9017606045

main90176-06045

9017906264

main90179-06264

9017906299

main90179-06299

9017910015

main90179-10015

9046806017

main90468-06017

9046808001

main90468-08001

91611G0612

main91611-G0612

91642H1022

main91642-H1022

9165260816

main91652-60816

25 parts on this diagram · 2 diagrams in section
