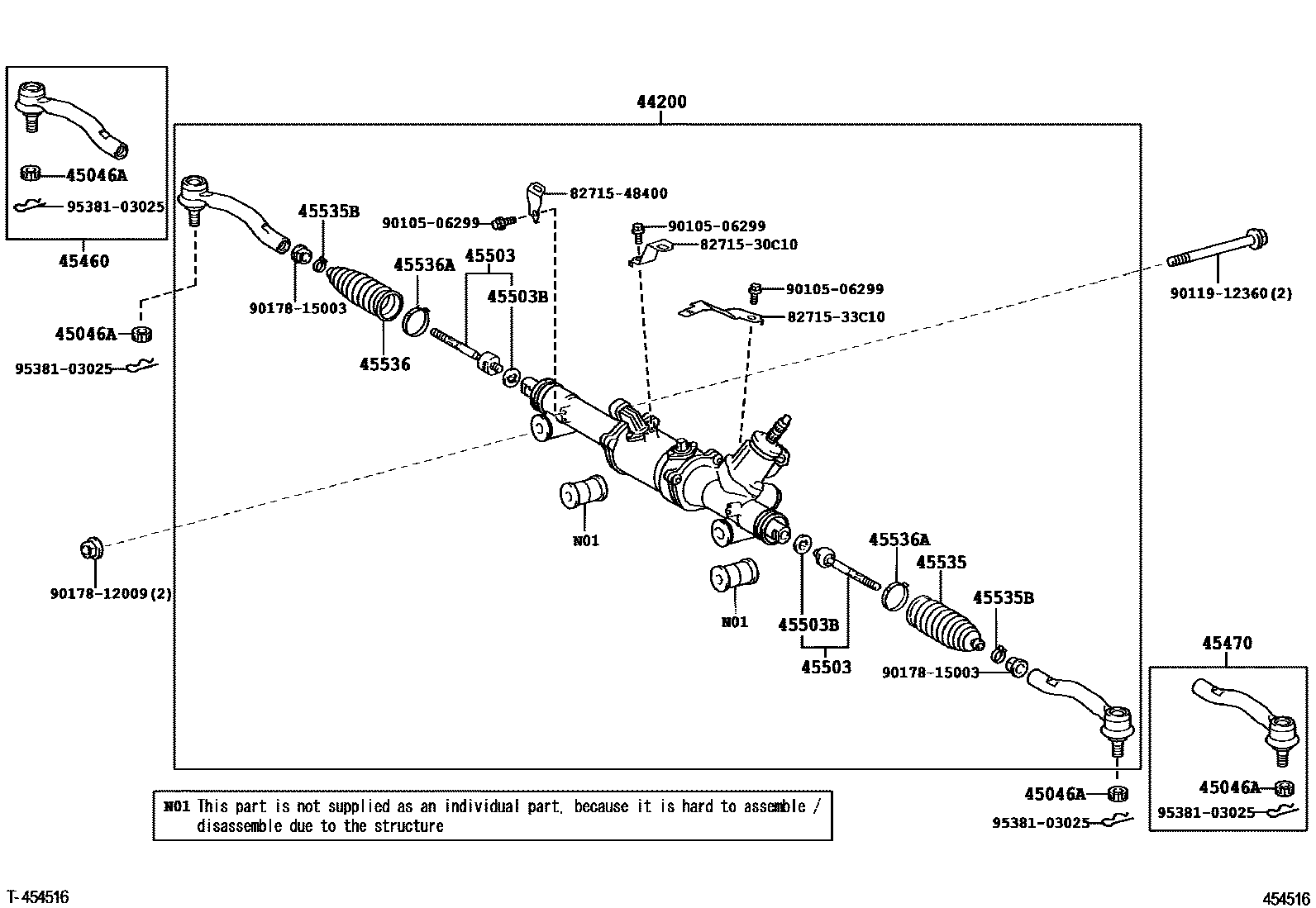

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-33470iAHV40..JPP200603-200608

main44200-33471iAHV40..JPP200609-200901

main44200-33472iAHV40..JPP201107-201108

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAHV40..JPP200603-200901

45460ROD ASSY, TIE, RH

main45460-39635iAHV40..JPP200603-200901

45470ROD ASSY, TIE, LH

main45470-39225iAHV40..JPP200603-200901

45503END SUB-ASSY, STEERING RACK

main45503-39315×2iAHV40..JPP200603-200901

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009×2iAHV40..JPP200603-200901

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-30030iAHV40..JPP200603-200901

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iAHV40..JPP200603-200901

45536BOOT, STEERING RACK, NO.2

main45535-30030iAHV40..JPP200603-200901

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016×2iAHV40..JPP200603-200901

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271533C10BRACKET,WIRING HARNESS CLAMP

main82715-33C10

8271548400BRACKET,WIRING HARNESS CLAMP

main82715-48400

9010506299

main90105-06299

9011912360

main90119-12360

9017812009

main90178-12009

9017815003

main90178-15003

9538103025

main95381-03025

18 parts on this diagram · 1 diagram in section
