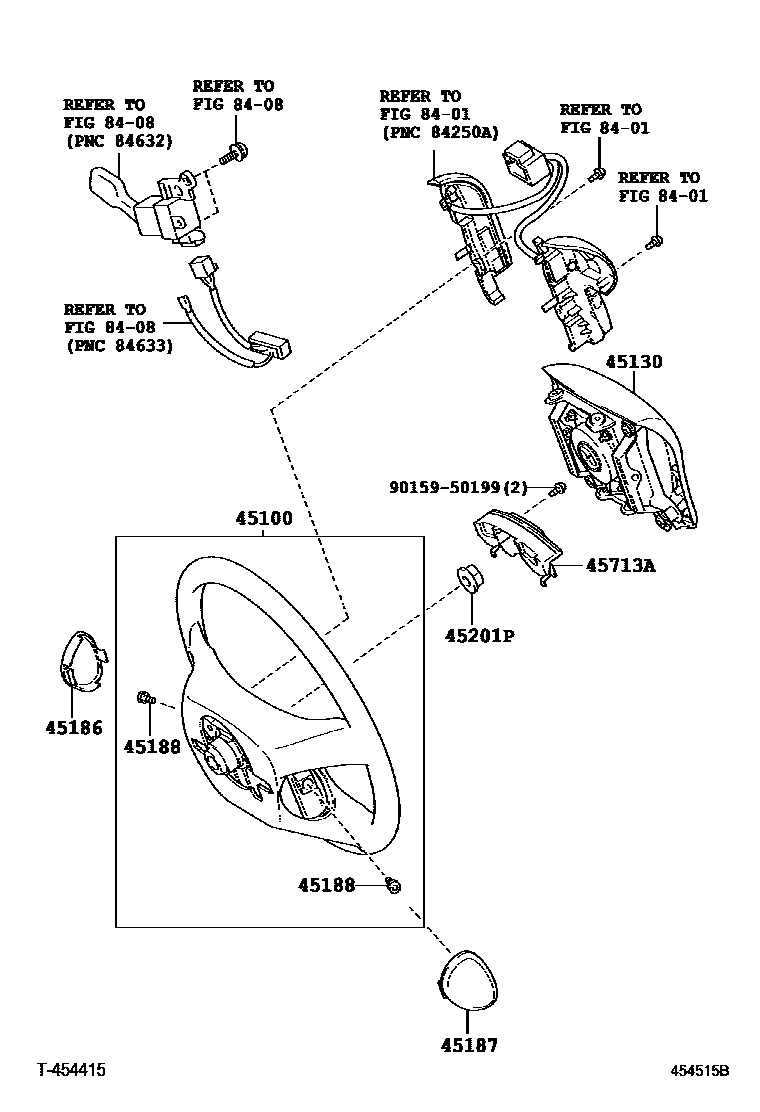

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0W300-B0iAHV40..JPP200603-200901

4-SPOKE,LEATHER,MD.GRAY,TRIM1#

main45100-0W300-E0iAHV40..JPP200603-200901

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

45130BUTTON ASSY, HORN

main45130-33470-B0iAHV40..JPP200603-200604

MD.GRAY,TRIM1#

main45130-33470-E0iAHV40..JPP200603-200604

ASH BROWN,TRIM4#

main45130-33471-B0iAHV40..JPP200605-200901

MD.GRAY,TRIM1#

main45130-33471-E0iAHV40..JPP200605-200901

ASH BROWN,TRIM4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33070-B1iAHV40..JPP200901-201108

MD.GRAY,TRIM1#

main45186-33070-E0iAHV40..JPP200603-200901

ASH BROWN,TRIM4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-33050-B1iAHV40..JPP200603-200901

MD.GRAY,TRIM1#

main45187-33050-E0iAHV40..JPP200603-200901

ASH BROWN,TRIM4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-07010×2iAHV40..JPP200603-200901

L=18.5

45201PNUT, STEERING WHEEL SET

main90179-12071iAHV40..JPP200603-200901

45713ADAMPER, STEERING SHAKE

main45713-33170iAHV40..JPP200603-200901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

10 parts on this diagram · 1 diagram in section
