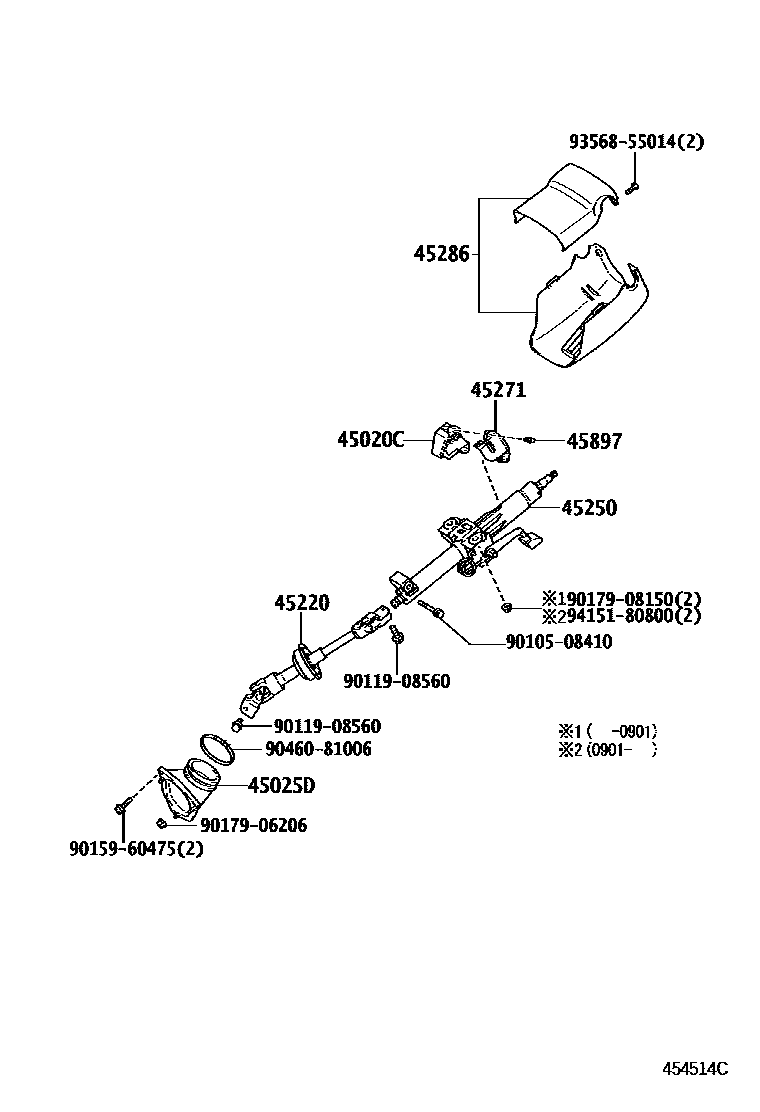

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-52140iAHV40..JPP200603-200901

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33110iAHV40..JPP200603-200901

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33230iAHV40..JPP200603-200604

main45220-33231iAHV40..JPP200605-200901

45250COLUMN ASSY, STEERING

main45250-33670iAHV40..JPP200603-200901

45271CLAMP, STEERING COLUMN, UPPER

main45271-22020iAHV40..JPP200901-201108

main45271-33050iAHV40..JPP200603-200810

45286COVER, STEERING COLUMN

main45286-33933-B2iAHV40..JPP200603-200810

MD.GRAY,TRIM1#

main45286-33933-E2iAHV40..JPP200603-200810

ASH BROWN,TRIM4#

main45286-33937-B2iAHV40..JPP200901-201004

MD.GRAY,TRIM1#

main45286-33937-E2iAHV40..JPP200810-200901

ASH BROWN,TRIM4#

main45286-33940-B1iAHV40..JPP201004-201108

MD.GRAY,TRIM1#

main45286-33940-E0iAHV40..JPP201004-201108

ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAHV40..JPP200603-200901

9010508410

main90105-08410

9011908560

main90119-08560

9015960475

main90159-60475

9017906206

main90179-06206

9017908150

main90179-08150

9046081006

main90460-81006

9356855014

main93568-55014

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
