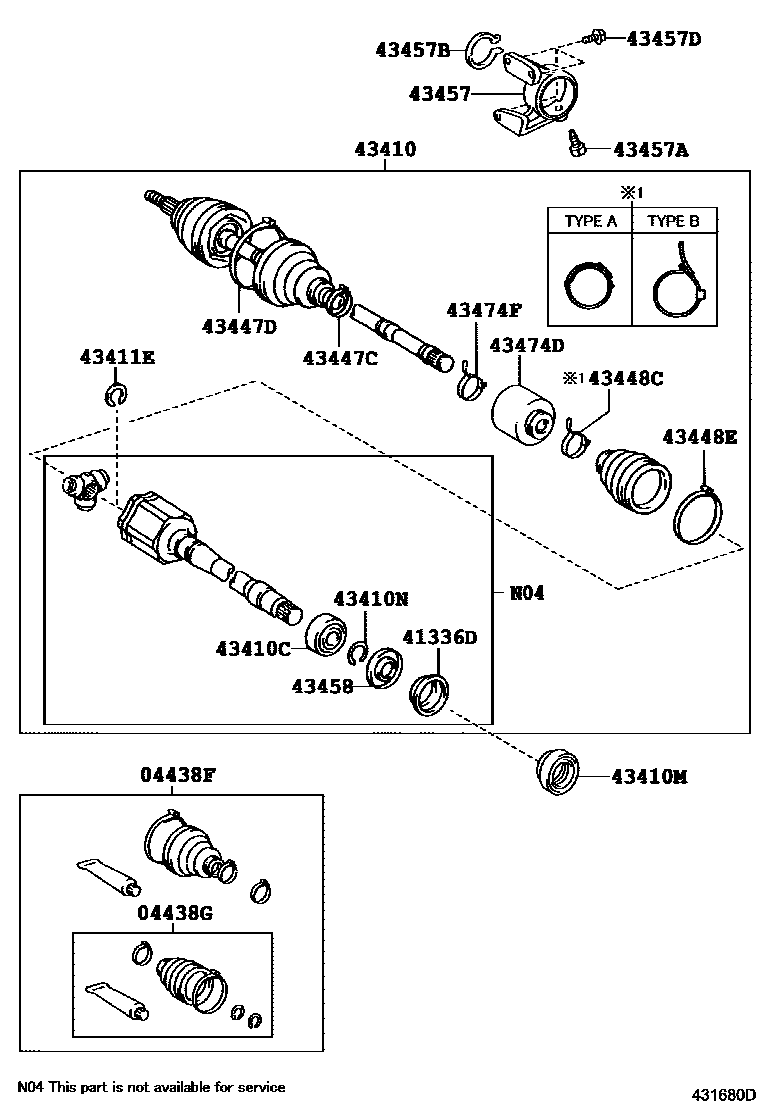

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-33030i200603-200901

sub04427-33031

main04427-44040i200901-201108

sub04427-44041

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33040i200603-200901

main04438-42180i200901-201108

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020i200603-200901

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33310i200603-200901

sub43410-33311

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41003i200603-200901

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40029i200603-200901

sub90311-40038

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015i200603-200901

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010i200603-200901

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-20040i200603-200901

main42345-42100i200901-201108

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-28020i200603-200901

main42345-42090i200901-201108

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010i200603-200901

TYPE A:REFER ILLUST.

main90949-01559i200901-201108

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160i200603-200901

43457BRACKET, DRIVE SHAFT BEARING

main43457-33040i200901-201108

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461i200603-200901

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002i200603-200901

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3i200603-200901

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010i200603-200901

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-48020i200603-200901

sub43474-48080

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010i200603-200901

19 parts on this diagram · 2 diagrams in section
