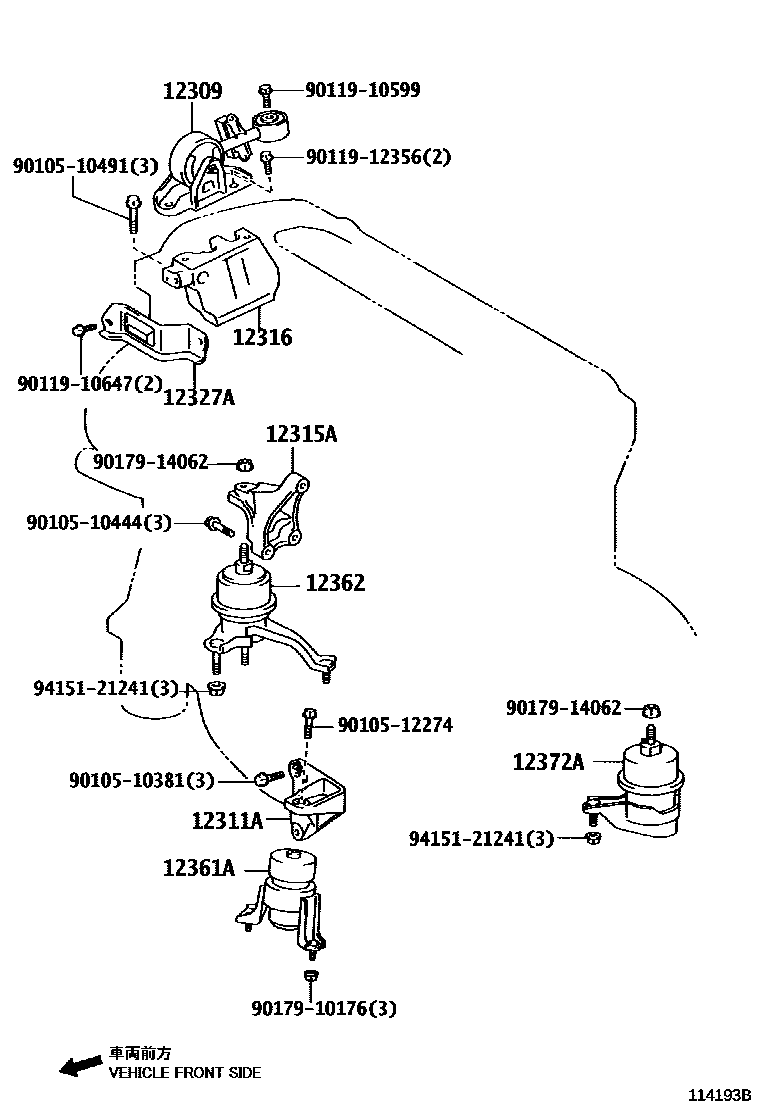

MOUNTING

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-28160i2AZFXE..AHV40..JPP200603-200901

main12309-28161i2AZFXE..AHV40..JPP201011-201108

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28210i2AZFXE..AHV40..JPP200603-200901

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-28070i2AZFXE..AHV40..JPP200603-200901

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-28061i2AZFXE..AHV40..JPP200603-200901

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-28030i2AZFXE..AHV40..JPP200603-200901

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28220i2AZFXE..AHV40..JPP200603-200901

main12361-28221i2AZFXE..AHV40..JPP200910-201108

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-28190i2AZFXE..AHV40..JPP200603-200901

main12362-36030i2AZFXE..AHV40..JPP200901-201108

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28250i2AZFXE..AHV40..JPP200603-200901

9010510381

main90105-10381

9010510444

main90105-10444

9010510491

main90105-10491

9010512274

main90105-12274

9011910599

main90119-10599

9011910647

main90119-10647

9011912356

main90119-12356

9017910176

main90179-10176

9017914062

main90179-14062

9415121241

main94151-21241

18 parts on this diagram · 1 diagram in section
