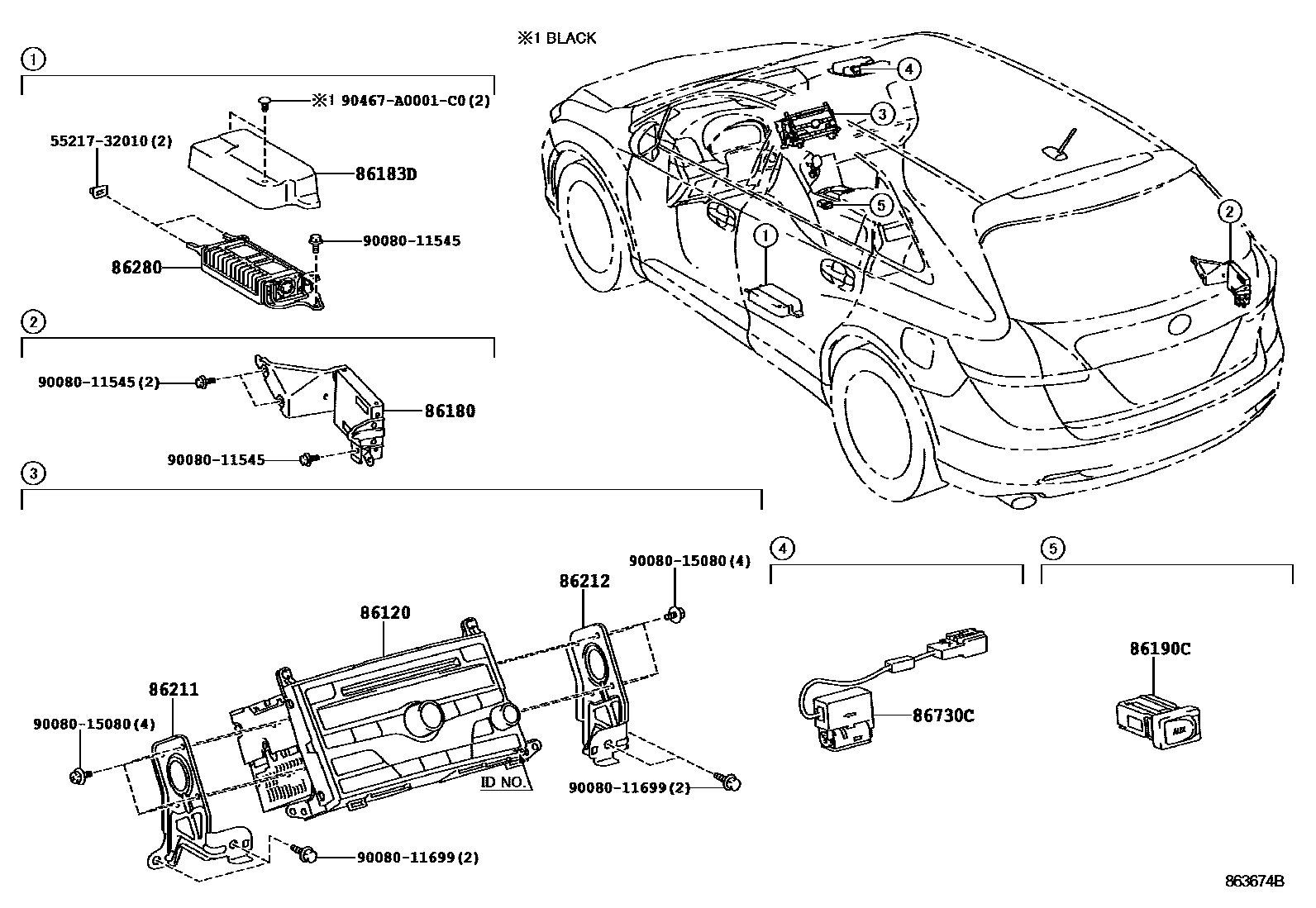

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
PANASONIC,ID=A51869,AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH,TYPE A:REFER ILLUST.; PANASONIC,ID=A51869,CANADA SPEC&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH,TYPE A:REFER ILLUST.; PANASONIC,ID=A51869,CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH,TYPE A:REFER ILLUST.; PANASONIC,ID=A51869,CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH,TYPE A:REFER ILLUST.; PANASONIC,ID=A51869,TYPE A:REFER ILLUST.
PANASONIC,ID=A51870,CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,TYPE A:REFER ILLUST.
PANASONIC,ID=A51872,CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,TYPE A:REFER ILLUST.
PANASONIC,ID=A51871,CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,TYPE A:REFER ILLUST.
PANASONIC,ID=A51873,CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,TYPE A:REFER ILLUST.
PANASONIC,ID=A518AA,CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,TYPE B:REFER ILLUST.
PANASONIC,ID=A518AB,CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,TYPE B:REFER ILLUST.
PANASONIC,ID=A518AC,CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,TYPE B:REFER ILLUST.
PANASONIC,ID=A518AD,CANADA SPEC&CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,TYPE B:REFER ILLUST.
86180TUNER ASSY, STEREO COMPONENT
PIONEER,AUDIO-13CY AVN 6SP (T3); PIONEER,AUDIO-13CY AVN JBL 13SP (T4); PIONEER,AUDIO-13CY DA DLX 6SP (T2)
PIONEER,AUDIO-13CY AVN 6SP (T3); PIONEER,AUDIO-13CY AVN JBL 13SP (T4); PIONEER,AUDIO-13CY DA DLX 6SP (T2)
CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH
CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH
86183DCOVER, AUDIO AMPLIFIER
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION); AUDIO-DISP JBL 13SPEAKER VOICE
86190CADAPTER ASSY, STEREO JACK, NO.1
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH
AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION)
AUDIO-13CY AVN JBL 13SP (T4)
86730CMICROPHONE ASSY, TELEPHONE
AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9008011545
main90080-11545
9008011699
main90080-11699
9008015080
main90080-15080
90467A0001C0
main90467-A0001C0
13 parts on this diagram · 6 diagrams in section
