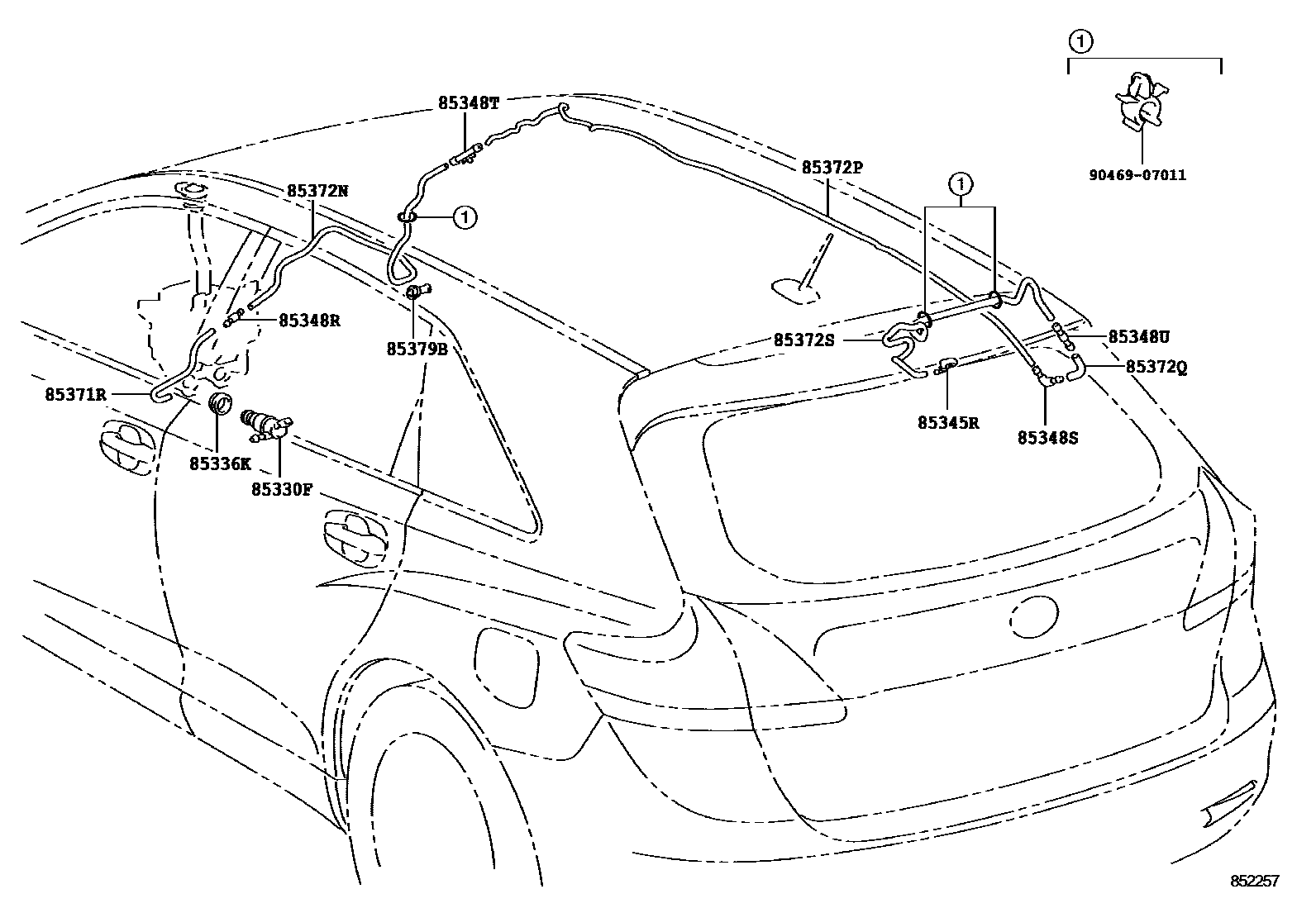

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
WITH
85336KPROTECTOR, WASHER JAR
WITH
85345RNOZZLE, REAR WASHER
WITH
85348RJOINT, REAR WASHER HOSE, NO.1
WITH
85348SJOINT, REAR WASHER ELBOW, NO.1
WITH
85348TJOINT, REAR WASHER HOSE, NO.2
WITH
85348UJOINT, REAR WASHER HOSE, NO.3
WITH
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=260; L=260,WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1300; L=1300,WITH
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2900; L=2900,WITH
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
WITH
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=970; L=970,WITH
85379BGROMMET, WASHER, A
WITH
9046907011
main90469-07011
14 parts on this diagram · 1 diagram in section
