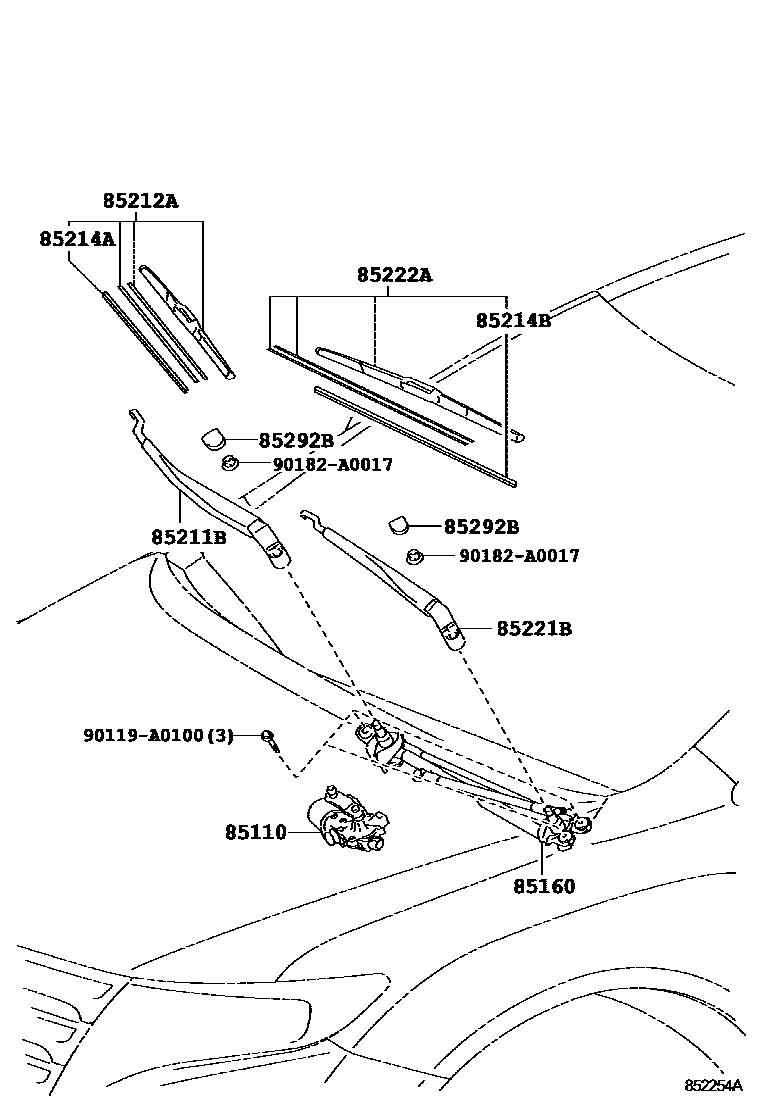

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0T010iAGV1#,GGV1#200811-201205

85160LINK ASSY, WINDSHIELD WIPER

main85150-0T010iAGV1#,GGV1#200811-201205

85211BARM, FRONT WIPER, RH

main85211-0T010iAGV1#,GGV1#200811-201205

85212ABLADE, FR WIPER, RH

main85212-0T020iAGV1#,GGV1#200811-201205

85214ARUBBER, WIPER, RH

main85214-0T040iAGV1#,GGV1#200811-201205

85214BRUBBER, WIPER, LH

main85214-0T050iAGV1#,GGV1#200811-201205

85221BARM, FRONT WIPER, LH

main85221-0T010iAGV1#,GGV1#200811-201205

85222ABLADE, FR WIPER, LH

main85222-0T030iAGV1#,GGV1#200811-201205

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2iAGV1#,GGV1#200811-201205

90119A0100

main90119-A0100

90182A0017

main90182-A0017

11 parts on this diagram · 1 diagram in section
