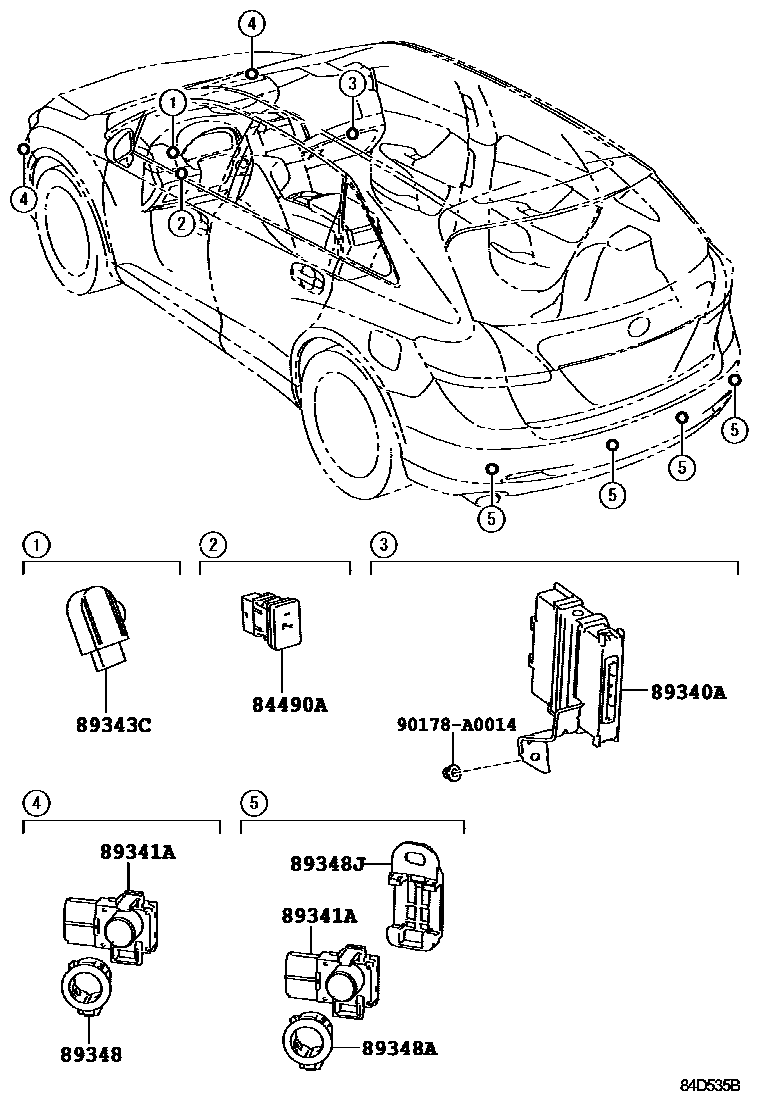

CLEARANCE & BACK SONAR
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE
89340ACOMPUTER ASSY, CLEARANCE WARNING
KOREA SPEC
89341ASENSOR, ULTRASONIC, NO.1
KOREA SPEC,WHITE PEARL CS.,070
KOREA SPEC,SILVER ME.,1F7
KOREA SPEC,GRAY ME.,1G3
KOREA SPEC,DK. STEEL MC.,1H2
KOREA SPEC,ATTITUDE BLACK MC.,218
KOREA SPEC,RED M.M.,3R3
KOREA SPEC,BROWN M.M.,4U2
KOREA SPEC,DK. BROWN M.M.,4U3
KOREA SPEC,OLIVE M.M.,6T7
KOREA SPEC,WHITE PEARL CS.,070
KOREA SPEC,SILVER ME.,1F7
KOREA SPEC,GRAY ME.,1G3
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,DK. STEEL MC.,1H2
WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,SILVER ME.,1J9
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,ATTITUDE BLACK MC.,218
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,RED M.M.,3R3; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,RED M.M.,3R3
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,BROWN M.M.,4U2; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,BROWN M.M.,4U2
KOREA SPEC,DK. BROWN M.M.,4U3
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,OLIVE M.M.,6T7; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,OLIVE M.M.,6T7
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,DK.BLUE M.M.,8W6
89343CBUZZER, CLEARANCE WARNING, NO.1
WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM
89348RETAINER, ULTRASONIC SENSOR, NO.1
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,WHITE PEARL CS.,070
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,SILVER ME.,1F7; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,SILVER ME.,1F7
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,GRAY ME.,1G3
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,DK. STEEL MC.,1H2
WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,ATTITUDE BLACK MC.,218
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,RED M.M.,3R3; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,RED M.M.,3R3
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,BROWN M.M.,4U2; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,BROWN M.M.,4U2
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,DK. BROWN M.M.,4U3; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,DK. BROWN M.M.,4U3
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,OLIVE M.M.,6T7; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,OLIVE M.M.,6T7
WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE M.M.,8W6
WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,SILVER ME.,1J9
89348ARETAINER, ULTRASONIC SENSOR, NO.2
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,WHITE PEARL CS.,070
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,SILVER ME.,1F7; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,SILVER ME.,1F7
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,GRAY ME.,1G3
KOREA SPEC,DK. STEEL MC.,1H2
KOREA SPEC,ATTITUDE BLACK MC.,218
KOREA SPEC,RED M.M.,3R3
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,BROWN M.M.,4U2; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,BROWN M.M.,4U2
KOREA SPEC,DK. BROWN M.M.,4U3
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,OLIVE M.M.,6T7; WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM,OLIVE M.M.,6T7
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,DK.BLUE M.M.,8W6
KOREA SPEC&WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE,SILVER ME.,1J9
89348JCLIP, ULTRASONIC SENSOR
WITH(LEATHER & MEMORY)&HEADLAMP-DISCHARGE & AUTOMATIC HIGH BEAM SYSTEM
90178A0014
main90178-A0014
8 parts on this diagram · 1 diagram in section
