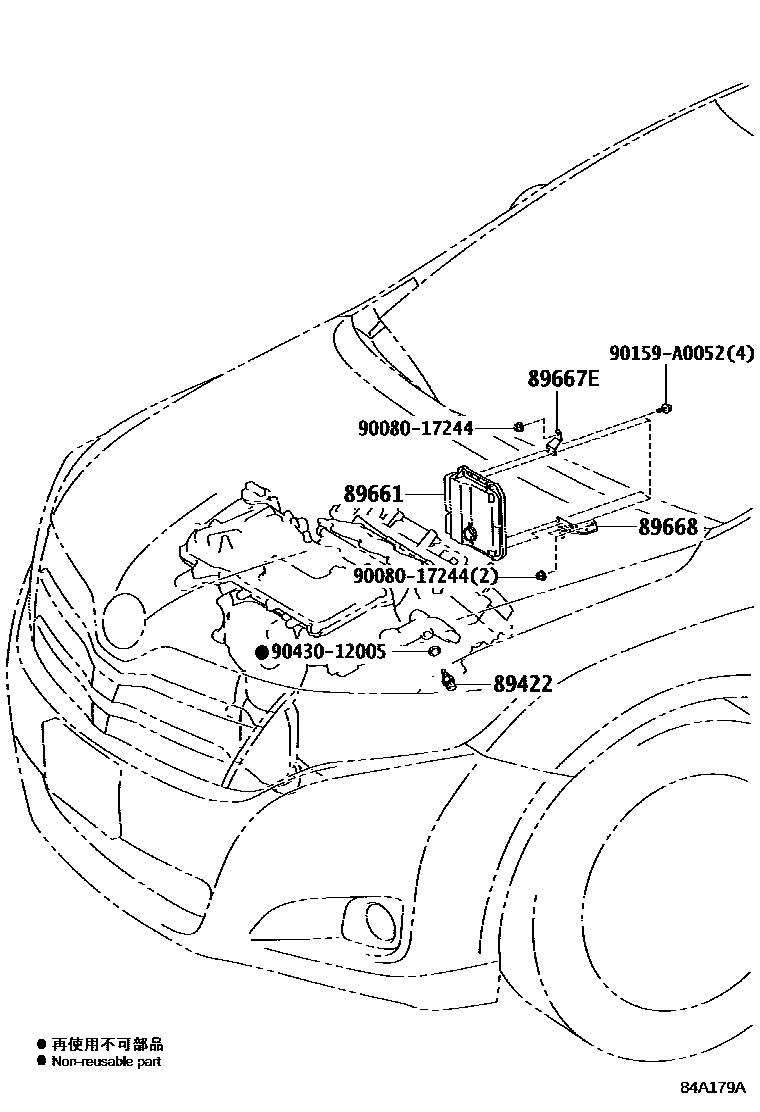

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAGV1#,GGV1#200811-201205

89661COMPUTER, ENGINE CONTROL

main89661-0T010iGGV10200811-201003

main89661-0T020iGGV15200811-201003

main89661-0T030iAGV10200901-201003

main89661-0T040iAGV15200901-201003

main89661-0T050iAGV10201004-201010

main89661-0T051iAGV10201011-201108

main89661-0T052iAGV10201109-201205

main89661-0T060iAGV15201004-201010

main89661-0T061iAGV15201011-201108

main89661-0T062iAGV15201109-201205

main89661-0T070iGGV10201004-201108

main89661-0T071iGGV10201108-201110

main89661-0T080iGGV15201004-201108

main89661-0T081iGGV15201108-201110

main89661-0T090iGGV10201110-201205

main89661-0T100iGGV15201110-201205

main89661-0T110iAGV10201205-201208

main89661-0T111iAGV10201209-201408

main89661-0T120iAGV15201205-201208

main89661-0T121iAGV15201209-201408

main89661-0T150iGGV10201205-201303

main89661-0T151iGGV10201304-201408

main89661-0T160iGGV15201205-201303

main89661-0T161iGGV15201304-201408

main89661-0T170iAGV10201408-201611

main89661-0T180iAGV15201408-201611

main89661-0T210iGGV10201408-201611

main89661-0T220iGGV15201408-201611

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0T010iGGV1#200811-201205

main89667-0T020iAGV1#200901-201205

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0T010iGGV1#200811-201205

main89668-0T020iAGV1#201205-201612

9008017244

main90080-17244

90159A0052

main90159-A0052

9043012005

main90430-12005

7 parts on this diagram · 2 diagrams in section
