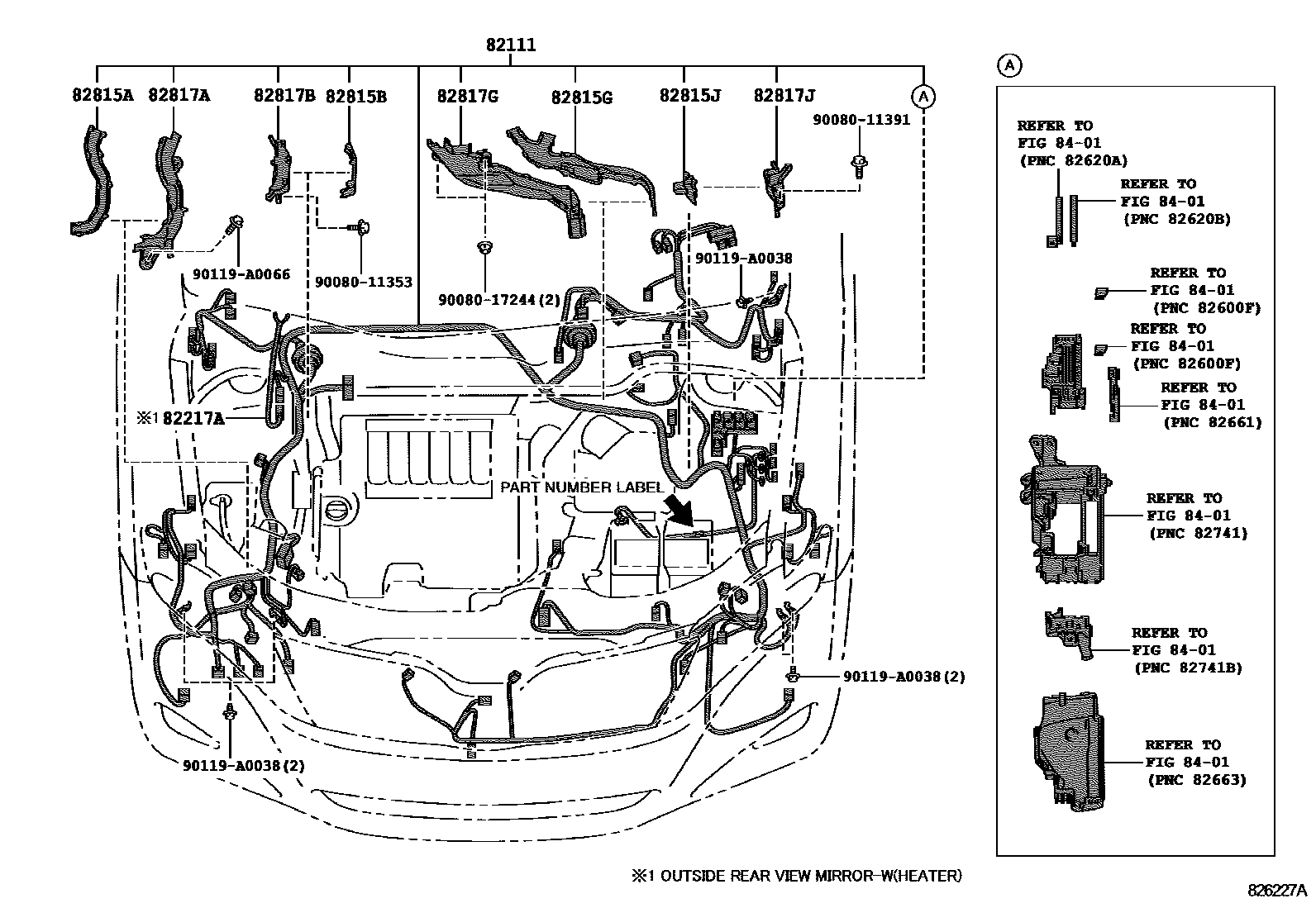

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
CORE PACKAGE&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&WITH(EASY CLOSER BACK DOOR)&AUDIO-6CD CHANGER,6SPEAKER
CORE PACKAGE&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&WITH(EASY CLOSER BACK DOOR)&AUDIO-CD,6SPEAKER,BLUETOOTH
CORE PACKAGE&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&WITH(EASY CLOSER BACK DOOR)&AUDIO-CD,6SPEAKER,BLUETOOTH
82217AWIRE, FRONT WINDOW DEFOGGER
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817GPROTECTOR, WIRING HARNESS, NO.8
82817JPROTECTOR, WIRING HARNESS, NO.9
8401SWITCH & RELAY & COMPUTER
9008011353
main90080-11353
9008011391
main90080-11391
9008017244
main90080-17244
90119A0038
main90119-A0038
90119A0066
main90119-A0066
16 parts on this diagram · 14 diagrams in section
