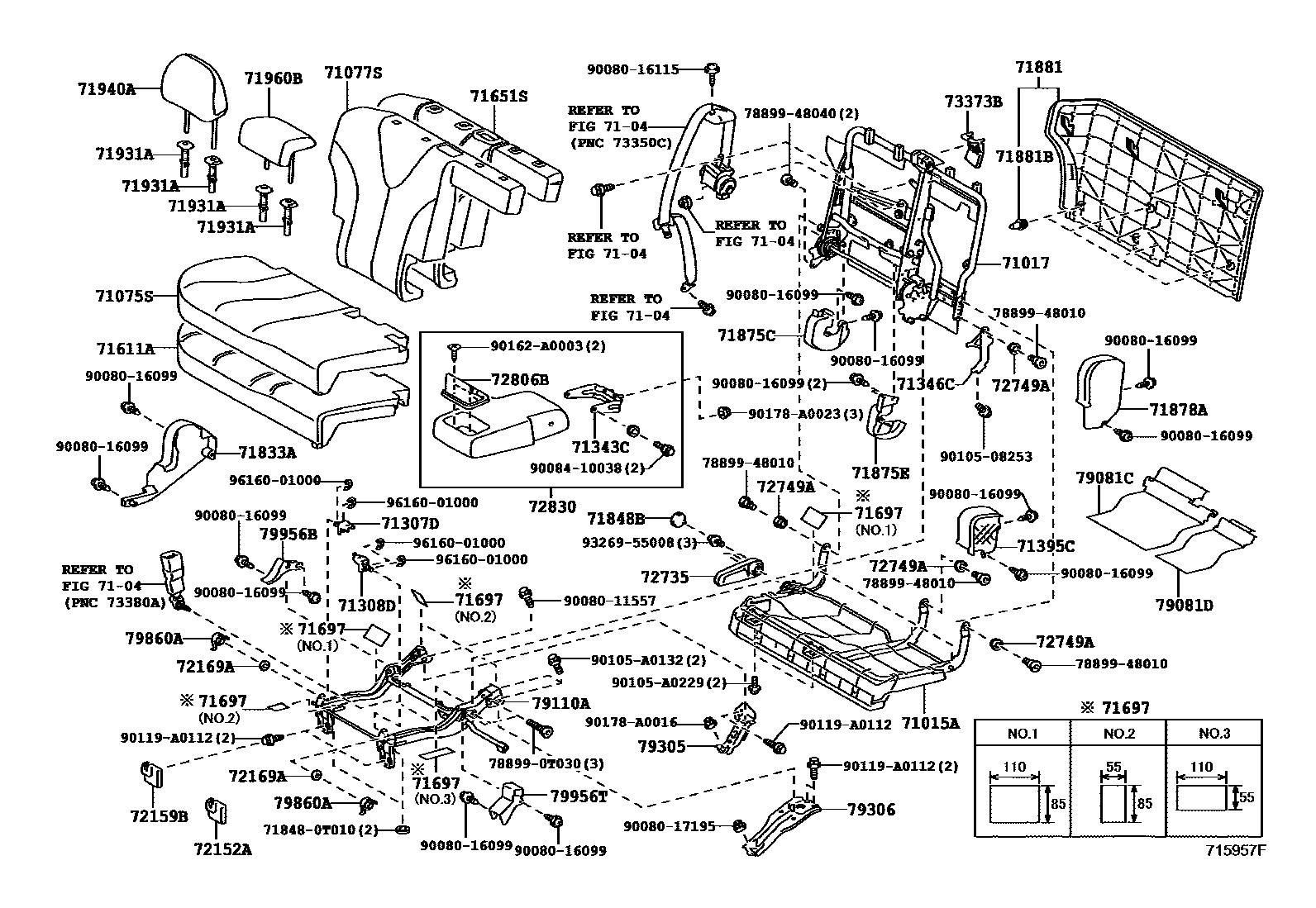

REAR SEAT & SEAT TRACK
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
71017FRAME SUB-ASSY, REAR SEATBACK, RH
7104SEAT BELT & CHILD RESTRAINT SEAT
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM01; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM01
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM12; CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM12
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM01; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM01
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM12; CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM12
71307DBRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH
71308DBRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH
71343CHINGE, REAR SEATBACK, CENTER
71346CHINGE, REAR SEATBACK, LH
71395CCOVER, CENTER SEAT HINGE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71611APAD, REAR SEAT CUSHION, RH
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71697PROTECTOR, REAR SEATBACK EDGE
NO.1
NO.2
NO.3
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71848BCAP, SEAT ADJUSTER COVER, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
IVORY,TRIM0#; WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
LT.GRAY,TRIM1#; WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#
BLACK,TRIM2#; WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
71875ECOVER, RECLINING ADJUSTER INSIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71878ACOVER, REAR SEAT RECLINING, INNER RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71881BOARD, REAR SEATBACK, RH
IVORY,TRIM0#
LT. GRAY,TRIM1#
BLACK,TRIM2#
71881BCLIP, REAR SEATBACK BOARD
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),IVORY,TRIM0#
W(LOCK),LT.GRAY,TRIM1#
W(LOCK),BLACK,TRIM2#
W/O(LOCK),IVORY,TRIM0#
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),LT.GRAY,TRIM1#
71940AHEADREST ASSY, REAR SEAT
BLACK,TRIM2#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#,RH SEAT; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#,RH SEAT; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
71960BHEADREST ASSY, REAR SEAT, CENTER
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1#; WITH(LEATHER & MEMORY),LIGHT GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
72152ACOVER, REAR SEAT TRACK BRACKET, INNER
BLACK,TRIM0#,1#,2#,LH SEAT
BLACK,TRIM0#,1#,2#,RH SEAT
72159BCOVER, REAR SEAT TRACK BRACKET, OUTER
BLACK,TRIM0#,1#,2#,RH SEAT
BLACK,TRIM0#,1#,2#,LH SEAT
72169ASPACER, RR SEAT TRACK
72735LEVER, REAR SEAT RECLINING RELEASE
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
72749ASPACER, REAR SEAT RECLINING
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
BLACK,TRIM2#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#
72830ARMREST ASSY, REAR SEAT, CENTER
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT GRAY,TRIM1#
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#
73373BCOVER, REAR NO.1 SEAT SHOULDER BELT
79081CCOVER, REAR SEAT, NO.1
79081DCOVER, REAR SEAT, NO.2
79110ALEG ASSY, NO.1 SEAT, RH
79305LEG SUB-ASSY, NO.3 SEAT
RH SEAT
LH SEAT
79306LEG SUB ASSY, NO.3 SEAT, LH
LH SEAT; WITH,LH SEAT
LH SEAT; WITH,LH SEAT
RH SEAT; WITH,RH SEAT
79860ASPRING ASSY, FOLD SEAT CUSHION, RH
WITH(LEATHER & MEMORY); WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER)
79956BCOVER, REAR SEAT LEG SIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
79956TCOVER, REAR SEAT LEG SIDE
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
718480T010ORNAMENT, FRONT SEAT BRACKET, LH
main71848-0T010
788990T030BOLT, FRONT SEAT
main78899-0T030
7889948010BOLT, FRONT SEAT
main78899-48010
7889948040BOLT, FRONT SEAT
main78899-48040
9008011557
main90080-11557
9008016099
main90080-16099
9008016115
main90080-16115
9008017195
main90080-17195
9008410038
main90084-10038
9010508253
main90105-08253
90105A0132
main90105-A0132
90105A0229
main90105-A0229
90119A0112
main90119-A0112
90162A0003
main90162-A0003
90178A0016
main90178-A0016
90178A0023
main90178-A0023
9326955008
main93269-55008
9616001000
main96160-01000
57 parts on this diagram · 3 diagrams in section
