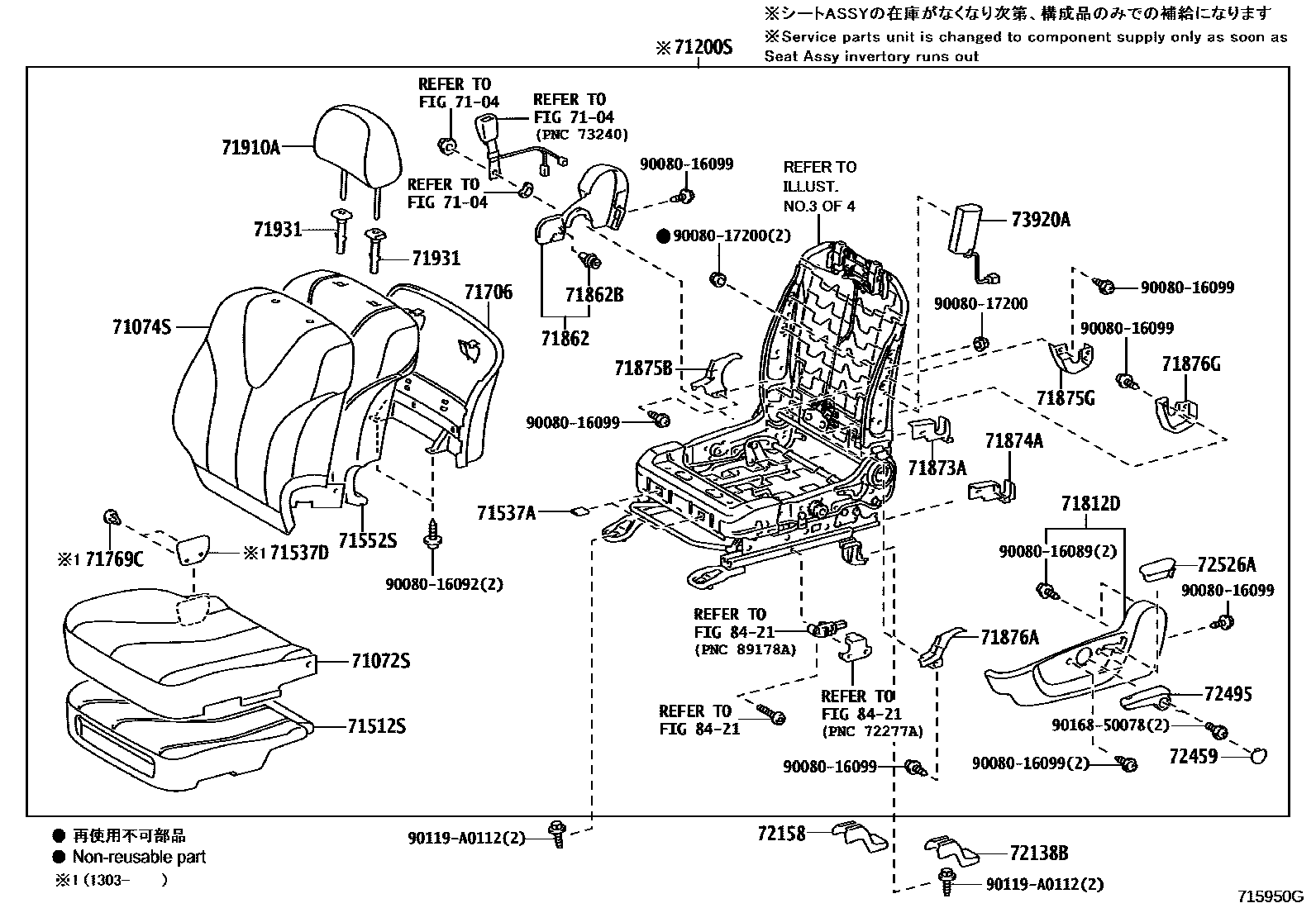

FRONT SEAT & SEAT TRACK

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0T010-A1supersedes 71072-0T030-A1i200811-201205

CORE PACKAGE,IVORY,TRIM0#

main71072-0T010-B1supersedes 71072-0T030-B1i200811-201205

CORE PACKAGE,LT. GRAY,TRIM1#

main71072-0T020-A0supersedes 71072-0T030-A1i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71072-0T020-B0supersedes 71072-0T030-B1i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#

main71072-0T021-A0supersedes 71072-0T030-A1i201010-201205

CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71072-0T021-B0supersedes 71072-0T030-B1i201010-201205

CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#

main71072-0T022-A1supersedes 71072-0T030-A1i201205-201303

WITH(LEATHER & MEMORY),IVORY,TRIM0#

main71072-0T022-B1supersedes 71072-0T030-B1i201205-201303

WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#

main71072-0T022-C0supersedes 71072-0T012-C0i201205-201303

WITH(LEATHER & MEMORY),BLACK,TRIM2#

main71072-0T023-A1i201303-201408

WITH(LEATHER & MEMORY),IVORY,TRIM0#

main71072-0T023-B1i201303-201408

WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#

main71072-0T023-C0i201303-201408

WITH(LEATHER & MEMORY),BLACK,TRIM2#

main71072-0T024-A2i201408-201612

WITH(LEATHER & MEMORY),IVORY,TRIM0#

main71072-0T024-B2i201408-201612

WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#

main71072-0T024-C0i201408-201612

WITH(LEATHER & MEMORY),BLACK,TRIM2#

main71072-0T040-A0supersedes 71072-0T030-A1i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71072-0T040-B0supersedes 71072-0T030-B1i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#

main71072-0T041-A0supersedes 71072-0T030-A1i201010-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71072-0T041-B0supersedes 71072-0T030-B1i201010-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#

main71072-0T042-A1supersedes 71072-0T030-A1i201205-201303

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71072-0T042-B1supersedes 71072-0T030-B1i201205-201303

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

main71072-0T042-C0supersedes 71072-0T012-C0i201205-201303

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71072-0T043-A1i201303-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71072-0T043-B1i201303-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#

main71072-0T043-C0i201303-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71072-0T044-A2i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71072-0T044-B2i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#

main71072-0T044-C0i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71072-0T050-A0supersedes 71072-0T030-A1i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71072-0T050-B0supersedes 71072-0T030-B1i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM1#

main71072-0T060-A0supersedes 71072-0T030-A1i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71072-0T060-B0supersedes 71072-0T030-B1i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0T011-B1i201205-201612

BLACK,TRIM2#

main71074-0T010-A0supersedes 71074-0T030-A0i200811-201205

CORE PACKAGE,IVORY,TRIM0#

main71074-0T010-B0supersedes 71074-0T030-B0i200811-201205

CORE PACKAGE,LT. GRAY,TRIM1#

main71074-0T020-A0supersedes 71074-0T030-A0i201010-201205

CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71074-0T020-B0supersedes 71074-0T030-B0i201010-201205

CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#

main71074-0T021-A1i201205-201408

WITH(LEATHER & MEMORY),IVORY,TRIM0#

main71074-0T021-B1i201205-201408

WITH(LEATHER & MEMORY),BLACK,TRIM2#

main71074-0T021-B2i201205-201408

WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#

main71074-0T022-A2i201408-201612

WITH(LEATHER & MEMORY),IVORY,TRIM0#

main71074-0T022-B1i201408-201612

WITH(LEATHER & MEMORY),BLACK,TRIM2#

main71074-0T022-B3i201408-201612

WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#

main71074-0T040-A0supersedes 71074-0T030-A0i201010-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71074-0T040-B0supersedes 71074-0T030-B0i201010-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#

main71074-0T041-A1i201205-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71074-0T041-B1i201205-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71074-0T041-B2i201205-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

main71074-0T042-A2i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71074-0T042-B1i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71074-0T042-B3i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#

main71074-0T050-A0supersedes 71074-0T030-A0i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71074-0T050-B0supersedes 71074-0T030-B0i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM1#

main71074-0T060-A0supersedes 71074-0T030-A0i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71074-0T060-B0supersedes 71074-0T030-B0i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1#

71200SSEAT ASSY, FRONT LH

main71200-0T010-A4supersedes 71200-0T040-A2i200811-201205

CORE PACKAGE,IVORY,TRIM0#

main71200-0T010-B4supersedes 71200-0T040-B2i200811-201205

CORE PACKAGE,LT GRAY,TRIM1#

main71200-0T020-A1supersedes 71200-0T040-A2i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71200-0T020-B1supersedes 71200-0T040-B2i201010-201110

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1#

main71200-0T021-A0supersedes 71200-0T040-A2i201110-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71200-0T021-B0supersedes 71200-0T040-B2i201110-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1#

main71200-0T030-A1supersedes 71200-0T040-A2i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71200-0T030-B1supersedes 71200-0T040-B2i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM1#

main71200-0T031-A0supersedes 71200-0T040-A2i201110-201205

CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71200-0T031-B0supersedes 71200-0T040-B2i201110-201205

CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM1#

main71200-0T080-A1supersedes 71200-0T040-A2i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71200-0T080-B1supersedes 71200-0T040-B2i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM1#

main71200-0T090-A1supersedes 71200-0T040-A2i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71200-0T090-B1supersedes 71200-0T040-B2i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0T010supersedes 71512-0T020i200811-201205

CORE PACKAGE; CORE PACKAGE&WITH(LEATHER PACKAGE); CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER)

71537APROTECTOR, FRONT SEAT CUSHION

main71537-AA020×2i200911-201205

CORE PACKAGE

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-0T010i201303-201612

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0T010i201205-201612

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71706-06010-C2i201205-201612

BLACK,TRIM2#

main71706-06010-A0supersedes 71706-06060-A0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#; CORE PACKAGE,IVORY,TRIM0#

main71706-06010-B2supersedes 71706-06060-B1i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#; CORE PACKAGE,LT.GRAY,TRIM1#

71769CCLIP, FRONT SEAT CUSHION COVER

main71769-60010-A0×2i201303-201612

IVORY,TRIM0#

main71769-60010-C0×2i201303-201612

BLACK,TRIM2#

main71769-60010-P1×2i201303-201612

LT.GRAY,TRIM1#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0T010-C0i201205-201612

BLACK,TRIM2#

main71812-0T010-A0supersedes 71812-0T020-A0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#; CORE PACKAGE,IVORY,TRIM0#

main71812-0T010-B0supersedes 71812-0T020-B0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#; CORE PACKAGE,LT.GRAY,TRIM1#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06060-C0i201205-201612

BLACK,TRIM2#

main71862-06060-A0supersedes 71862-AA090-A0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#; CORE PACKAGE,IVORY,TRIM0#

main71862-06060-B2supersedes 71862-AA090-B5i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#; CORE PACKAGE,LT.GRAY,TRIM1#

71862BCLIP(FOR FRONT SEAT SHIELD, LH)

main67921-50050-B0supersedes 71769-33020i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY; CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY; CORE PACKAGE,LT.GRAY

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06040supersedes 71873-0C060-C0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE); CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER)

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71806-0C020-C0supersedes 71873-0C060-C0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK; CORE PACKAGE&WITH(LEATHER PACKAGE),BLACK; CORE PACKAGE,BLACK

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06070supersedes 71874-0C030-C0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE); CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER)

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71806-07020supersedes 71874-0C030-C0i200811-201205

CORE PACKAGE; CORE PACKAGE&WITH(LEATHER PACKAGE); CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER)

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71876-AA090-C0i201205-201612

BLACK,TRIM2#

main71876-AA090-A0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#; CORE PACKAGE,IVORY,TRIM0#

main71876-AA090-B4i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#; CORE PACKAGE,LT.GRAY,TRIM1#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71814-0E020supersedes 71875-AA060i200811-201205

CORE PACKAGE; CORE PACKAGE&WITH(LEATHER PACKAGE); CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER)

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-AA090-A0supersedes 71876-02130-A0i201205-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#

main71875-AA090-B2supersedes 71876-02130-B3i201205-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#

main71875-AA090-C0supersedes 71876-02130-C0i201205-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71875-0E020-C0i201205-201612

BLACK,TRIM2#

main71875-0E020-A0supersedes 71876-AD020-A0i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#; CORE PACKAGE,IVORY,TRIM0#

main71875-0E020-B0supersedes 71876-AD020-B2i200811-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#; CORE PACKAGE,LT.GRAY,TRIM1#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71813-0E020supersedes 71876-AA060i200811-201205

CORE PACKAGE; CORE PACKAGE&WITH(LEATHER PACKAGE); CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER)

71910AHEADREST ASSY, FRONT SEAT

main71910-0T011-C0×2i201205-201612

BLACK,TRIM2#

main71910-0T020-A1×2supersedes 71910-0T011-A1i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71910-0T020-B1×2supersedes 71910-0T011-B1i200811-200909

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#

main71910-0T021-A1×2supersedes 71910-0T011-A1i201110-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71910-0T021-B1×2supersedes 71910-0T011-B1i201110-201205

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#

main71910-0T030-A0×2i201205-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#

main71910-0T030-B0×2i201205-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#

main71910-0T030-C0×2i201205-201408

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#

main71910-0T031-A1×2i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; WITH(LEATHER & MEMORY),IVORY,TRIM0#

main71910-0T031-B1×2i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#

main71910-0T031-C0×2i201408-201612

WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; WITH(LEATHER & MEMORY),BLACK,TRIM2#

main71910-0T040-A1×2supersedes 71910-0T011-A1i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#

main71910-0T040-B1×2supersedes 71910-0T011-B1i200909-201010

CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1#; CORE PACKAGE&WITH(LEATHER PACKAGE),LT GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-A0×2i200811-201205

W(LOCK),IVORY,TRIM0#

main71930-44020-B8×2i201205-201612

W(LOCK),LT.GRAY,TRIM1#

main71930-44020-C0×2i201205-201612

W(LOCK),BLACK,TRIM2#

main71931-47010-A0×2i201205-201612

W/O(LOCK),IVORY,TRIM0#

main71931-47010-C0×2i201205-201612

W/O(LOCK),BLACK,TRIM2#

main71931-47010-P3×2i201205-201612

W/O(LOCK),LT.GRAY,TRIM1#

72138BCOVER, SEAT TRACK, LH

main72138-0T020-C0supersedes 72138-0T010-C0i201205-201612

BLACK,TRIM0#,1#,2#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-0T010-C0supersedes 72158-0T020-C0i201205-201612

BLACK,TRIM0#,1#,2#

72459CAP, VERTICAL SEAT ADJUSTER KNOB

main72459-06010-A0i200811-201205

IVORY,TRIM0#

main72459-06010-B3i200811-201205

LT.GRAY,TRIM1#

72495HANDLE, VERTICAL ADJUSTING, LH

main72494-06010-A0i200811-201205

IVORY,TRIM0#

main72494-06010-B2i200811-201205

LT.GRAY,TRIM1#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-06020-A0i200811-201205

IVORY,TRIM0#

main72526-06020-B3i200811-201205

LT.GRAY,TRIM1#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0T010i200811-201205

8421AIR BAG

→ Go to FIG 84-21

9008016089

main90080-16089

9008016092

main90080-16092

9008016099

main90080-16099

9008017200

main90080-17200

90119A0112

main90119-A0112

9016850078

main90168-50078

37 parts on this diagram · 8 diagrams in section
