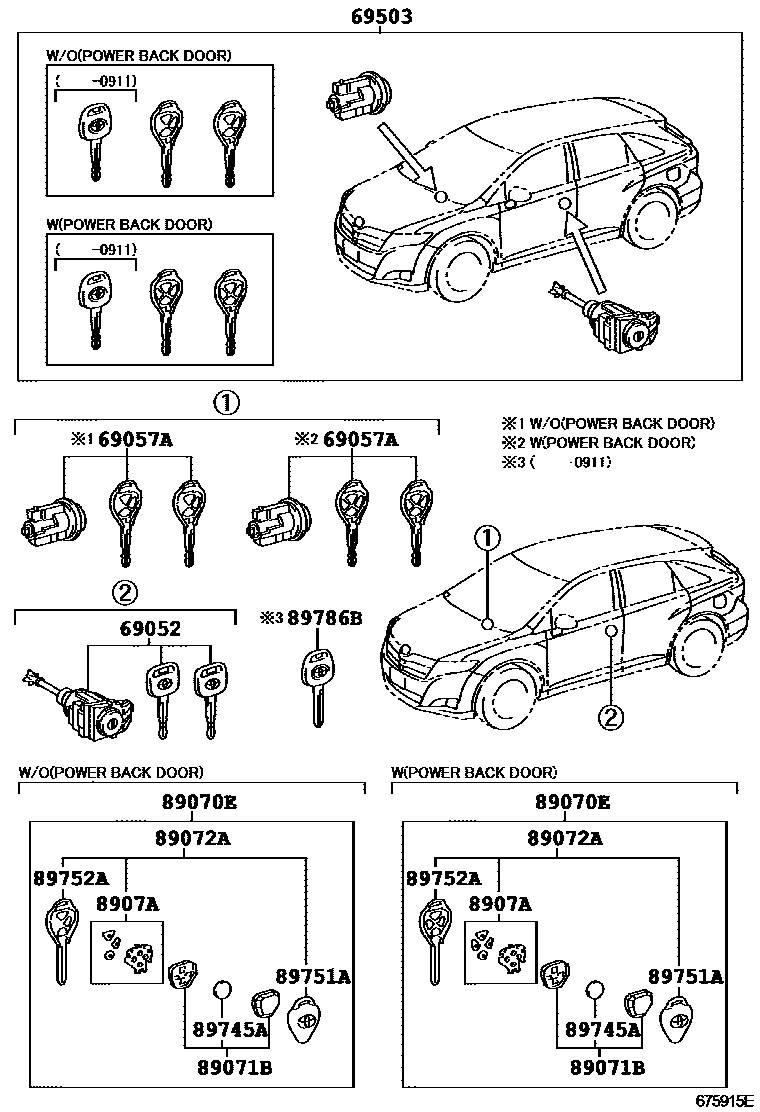

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0T010i201205

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02350supersedes 69057-02150i200811-200911

WITH(EASY CLOSER & POWER BACK DOOR)

main69057-0T030supersedes 69057-0T020i200911-201205

WITH(EASY CLOSER & POWER BACK DOOR)

69503CYLINDER SET, LOCK

main69005-0T020supersedes 69005-0T011i200811-201205

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main69005-0T030supersedes 69005-0T010i200811-200911

WITH(EASY CLOSER & POWER BACK DOOR)

main69005-0T031supersedes 69005-0T011i200911-201205

WITH(EASY CLOSER & POWER BACK DOOR)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0T030×2supersedes 89070-0T070i200811-200911

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main89070-0T040×2supersedes 89070-0T030i200811-200911

WITH(EASY CLOSER & POWER BACK DOOR)

main89070-0T070×2i200911-201205

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main89070-0T080×2supersedes 89070-0T070i200911-201205

WITH(EASY CLOSER & POWER BACK DOOR)

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-02060×2supersedes 89071-02061i200811-201205

WITH(SMART KEY); WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main89071-02061×2i201209

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR)

main89071-02070×2supersedes 89071-02061i201205-201208

WITH(EASY CLOSER & POWER BACK DOOR)

main89071-02071×2supersedes 89071-02061i201209

WITH(EASY CLOSER & POWER BACK DOOR)

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-0T030×2supersedes 89072-0T070i200811-200911

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main89072-0T040×2supersedes 89072-0T030i200811-200911

WITH(EASY CLOSER & POWER BACK DOOR)

main89072-0T070×2i200911-201205

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main89072-0T080×2supersedes 89072-0T070i200911-201205

WITH(EASY CLOSER & POWER BACK DOOR)

8907ASWITCH SET, TRANSMITTER

main8907A-0T010×2supersedes 8907A-12010i201205

WITH(EASY CLOSER & POWER BACK DOOR)

main8907A-12010×2i200811-201205

WITH(SMART KEY); WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

89745ABATTERY, TRANSMITTER

main89745-02040i200811-201205

WITH(SMART KEY); WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main89745-52020supersedes 89745-02040i200811-201205

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

89751ACOVER, TRANSMITTER HOUSING

main89751-02090×2i200811-201205

WITH(SMART KEY); WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

89752ACASE, TRANSMITTER HOUSING

main89752-02070×2supersedes 89752-02210i200811-200911

WITH(EASY CLOSER & POWER BACK DOOR)

main89752-02210×2supersedes 89752-0K080i200811-200911

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main89752-0K080×2i200911-201205

WITH(SMART KEY)&WITH(EASY CLOSER & POWER BACK DOOR); WITH(SMART KEY)&WITH(EASY CLOSER BACK DOOR)

main89752-0T030×2supersedes 89752-0K080i200911-201205

WITH(EASY CLOSER & POWER BACK DOOR)

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08020i200811-200911

BLANK KEY; BLANK KEY,WITH(SMART KEY)

11 parts on this diagram · 3 diagrams in section
