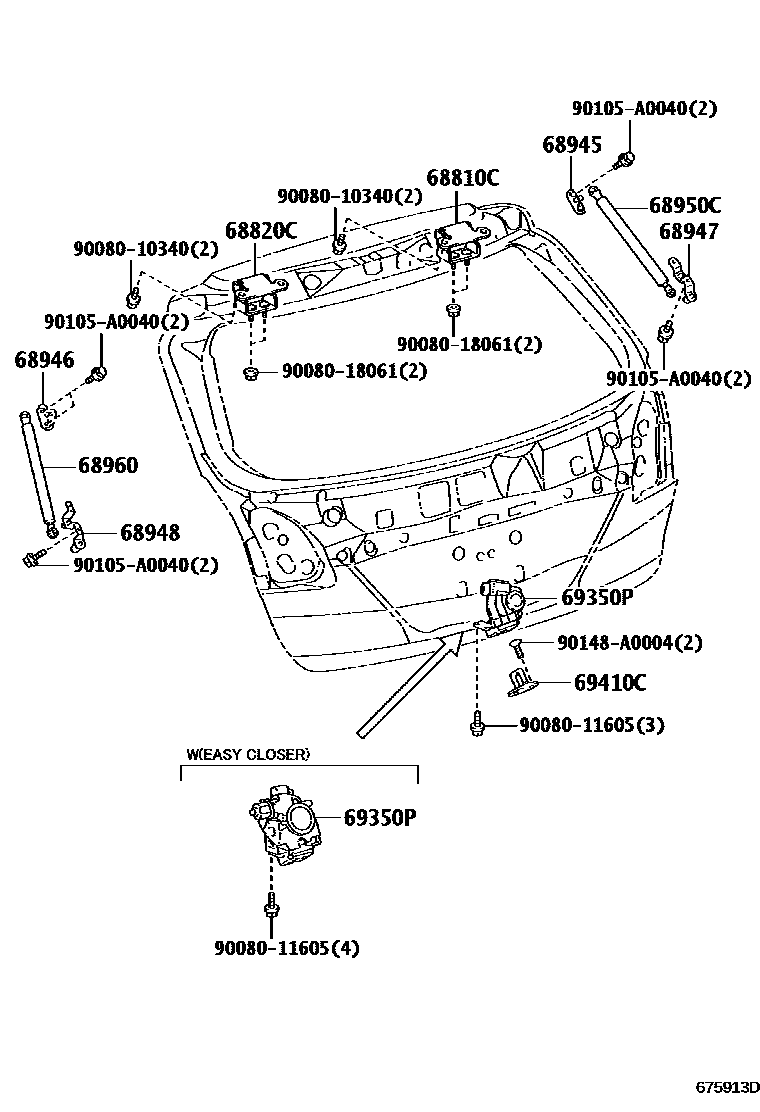

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
WITH(EASY CLOSER & POWER BACK DOOR)
WITH(EASY CLOSER & POWER BACK DOOR)
WITH(EASY CLOSER & POWER BACK DOOR)
WITH(EASY CLOSER & POWER BACK DOOR)
68960STAY ASSY, BACK DOOR, LH
WITH(EASY CLOSER & POWER BACK DOOR)
WITH(EASY CLOSER & POWER BACK DOOR)
WITH(EASY CLOSER & POWER BACK DOOR)
WITH(EASY CLOSER & POWER BACK DOOR)
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
WITH(EASY CLOSER & POWER BACK DOOR); WITH(EASY CLOSER BACK DOOR)
WITH(EASY CLOSER & POWER BACK DOOR); WITH(EASY CLOSER BACK DOOR)
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
9008010340
main90080-10340
9008011605
main90080-11605
9008018061
main90080-18061
90105A0040
main90105-A0040
90148A0004
main90148-A0004
15 parts on this diagram · 2 diagrams in section
