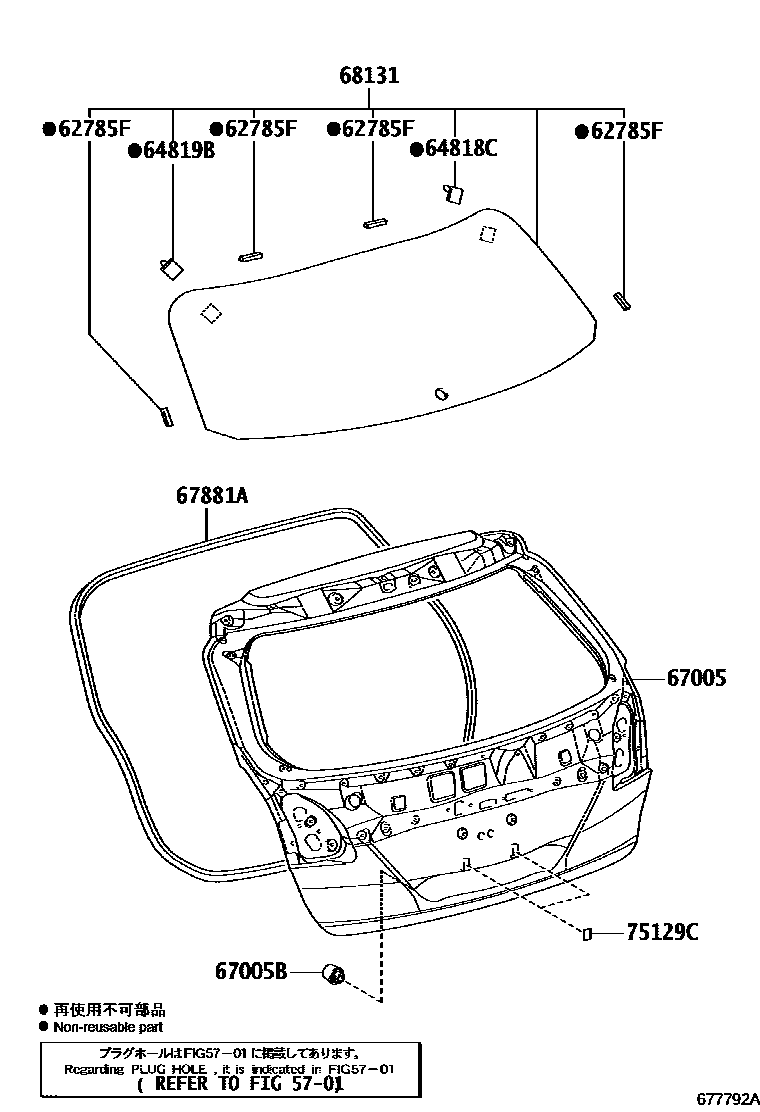

BACK DOOR PANEL & GLASS
5701
62785FSPACER, BACK DOOR GLASS
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
WITH(EASY CLOSER & POWER BACK DOOR)
WITH(EASY CLOSER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
WITH(EASY CLOSER & POWER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
sub82184-0T071
sub84930-08010
WITH(EASY CLOSER & POWER BACK DOOR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
WITH(EASY CLOSER & POWER BACK DOOR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHT,T=3.5,PRIVACY
*EHT,T=3.5,PRIVACY
75129CCUSHION, REAR LICENCE PLATE
9 parts on this diagram · 2 diagrams in section
