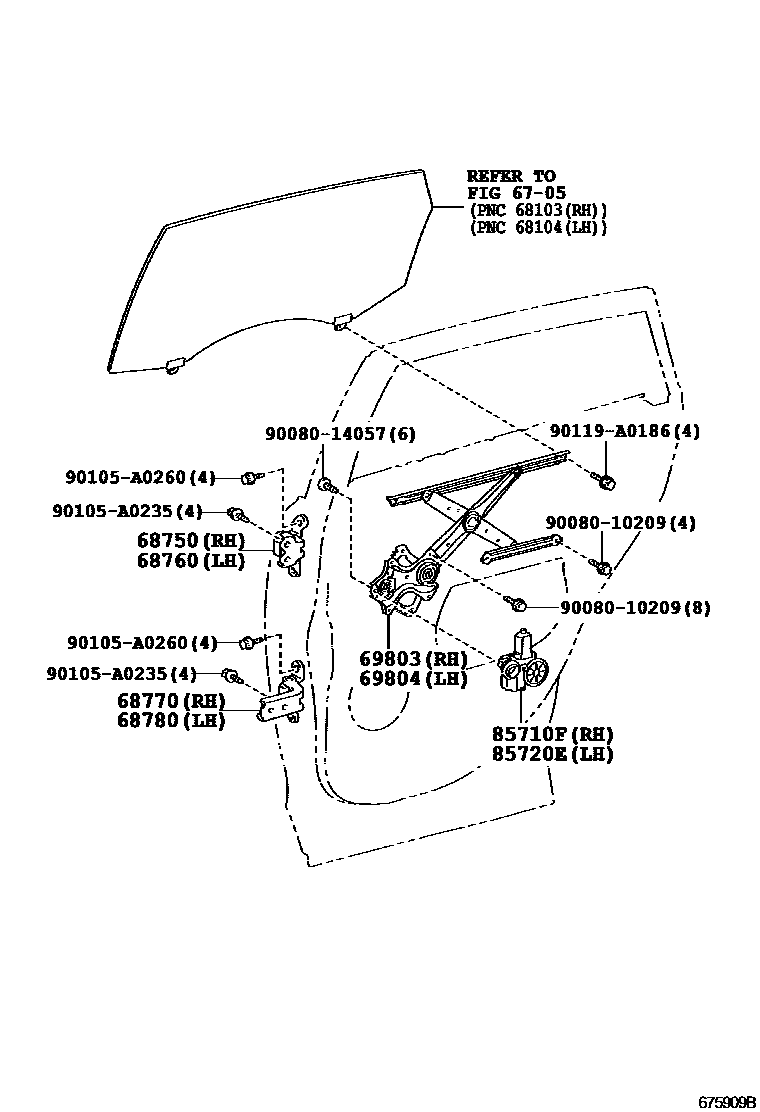

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-04010iAGV1#,GGV1#200811-201205

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-04010iAGV1#,GGV1#200811-201205

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-04010iAGV1#,GGV1#200811-201205

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-04010iAGV1#,GGV1#200811-201205

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-0T010iAGV1#,GGV1#200811-201205

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-0T010iAGV1#,GGV1#200811-201205

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0T020iAGV1#,GGV1#200811-201109

main85710-0T040iAGV1#,GGV1#201109-201205

main85710-0T041iAGV1#,GGV1#201309

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0T020iAGV1#,GGV1#200811-201109

main85720-0T040iAGV1#,GGV1#201109-201205

main85720-0T041iAGV1#,GGV1#201309

9008010209

main90080-10209

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90119A0186

main90119-A0186

14 parts on this diagram · 1 diagram in section
