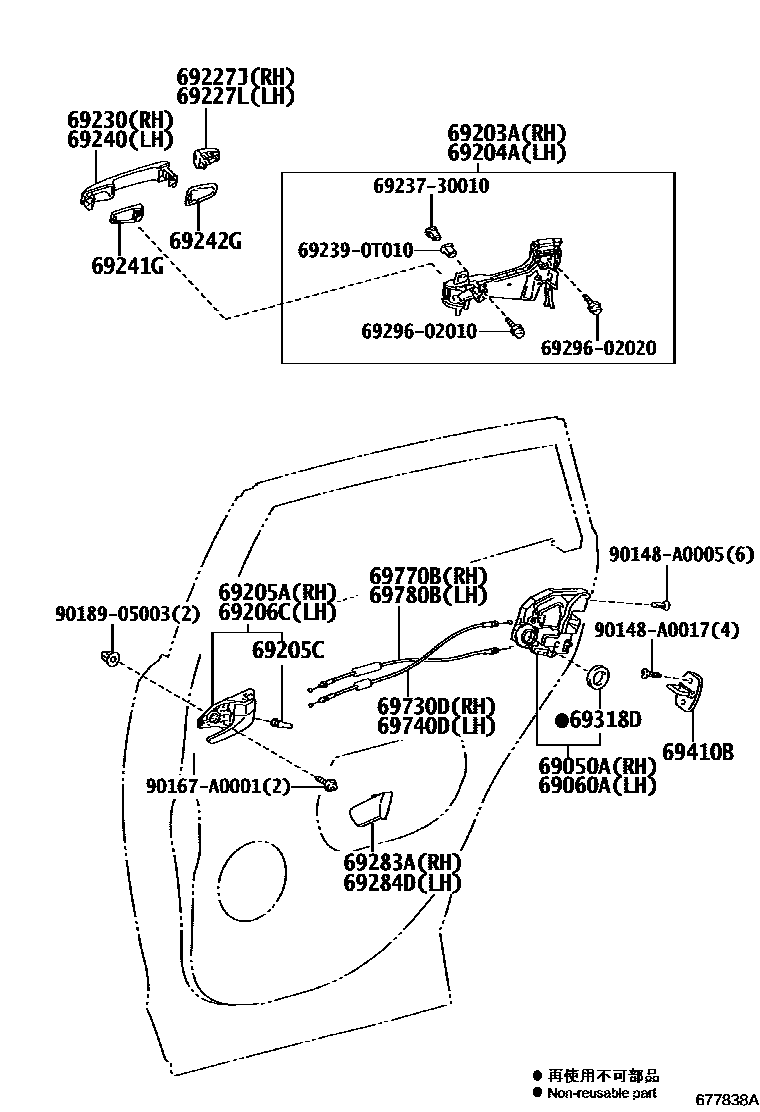

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WITH(SMART KEY),WHITE PEARL CS.,070
WITH(SMART KEY),SILVER ME.,1F7
WITH(SMART KEY),GRAY ME.,1G3
WITH(SMART KEY),DK. STEEL MC.,1H2
WITH(SMART KEY),SILVER ME.,1J9
WITH(SMART KEY),BLACK,202
WITH(SMART KEY),ATTITUDE BLACK MC.,218
WITH(SMART KEY),RED M.M.,3R3
WITH(SMART KEY),BROWN M.M.,4U2
WITH(SMART KEY),DK. BROWN M.M.,4U3
WITH(SMART KEY),OLIVE M.M.,6T7
WITH(SMART KEY),TURQUOISE M.M.,776
WITH(SMART KEY),BLUE ME.,8U6
WITH(SMART KEY),DK.BLUE M.M.,8W6
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WITH(SMART KEY),WHITE PEARL CS.,070
WITH(SMART KEY),SILVER ME.,1F7
WITH(SMART KEY),GRAY ME.,1G3
WITH(SMART KEY),DK. STEEL MC.,1H2
WITH(SMART KEY),SILVER ME.,1J9
WITH(SMART KEY),BLACK,202
WITH(SMART KEY),ATTITUDE BLACK MC.,218
WITH(SMART KEY),RED M.M.,3R3
WITH(SMART KEY),BROWN M.M.,4U2
WITH(SMART KEY),DK. BROWN M.M.,4U3
WITH(SMART KEY),OLIVE M.M.,6T7
WITH(SMART KEY),TURQUOISE M.M.,776
WITH(SMART KEY),BLUE ME.,8U6
WITH(SMART KEY),DK.BLUE M.M.,8W6
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WITH(SMART KEY),WHITE PEARL CS.,070
WITH(SMART KEY),SILVER ME.,1F7
WITH(SMART KEY),GRAY ME.,1G3
WITH(SMART KEY),DK. STEEL MC.,1H2
WITH(SMART KEY),SILVER ME.,1J9
WITH(SMART KEY),BLACK,202
WITH(SMART KEY),ATTITUDE BLACK MC.,218
WITH(SMART KEY),RED M.M.,3R3
WITH(SMART KEY),BROWN M.M.,4U2
WITH(SMART KEY),DK. BROWN M.M.,4U3
WITH(SMART KEY),OLIVE M.M.,6T7
WITH(SMART KEY),TURQUOISE M.M.,776
WITH(SMART KEY),BLUE ME.,8U6
WITH(SMART KEY),DK.BLUE M.M.,8W6
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WITH(SMART KEY),WHITE PEARL CS.,070
WITH(SMART KEY),SILVER ME.,1F7
WITH(SMART KEY),GRAY ME.,1G3
WITH(SMART KEY),DK. STEEL MC.,1H2
WITH(SMART KEY),SILVER ME.,1J9
WITH(SMART KEY),BLACK,202
WITH(SMART KEY),ATTITUDE BLACK MC.,218
WITH(SMART KEY),RED M.M.,3R3
WITH(SMART KEY),BROWN M.M.,4U2
WITH(SMART KEY),DK. BROWN M.M.,4U3
WITH(SMART KEY),OLIVE M.M.,6T7
WITH(SMART KEY),TURQUOISE M.M.,776
WITH(SMART KEY),BLUE ME.,8U6
WITH(SMART KEY),DK.BLUE M.M.,8W6
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
692390T010PIN, BACK DOOR OUTSIDE HANDLE
main69239-0T010
6929602010SCREW, DOOR INSIDE HANDLE
main69296-02010
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
90148A0005
main90148-A0005
90148A0017
main90148-A0017
90167A0001
main90167-A0001
9018905003
main90189-05003
29 parts on this diagram · 1 diagram in section
