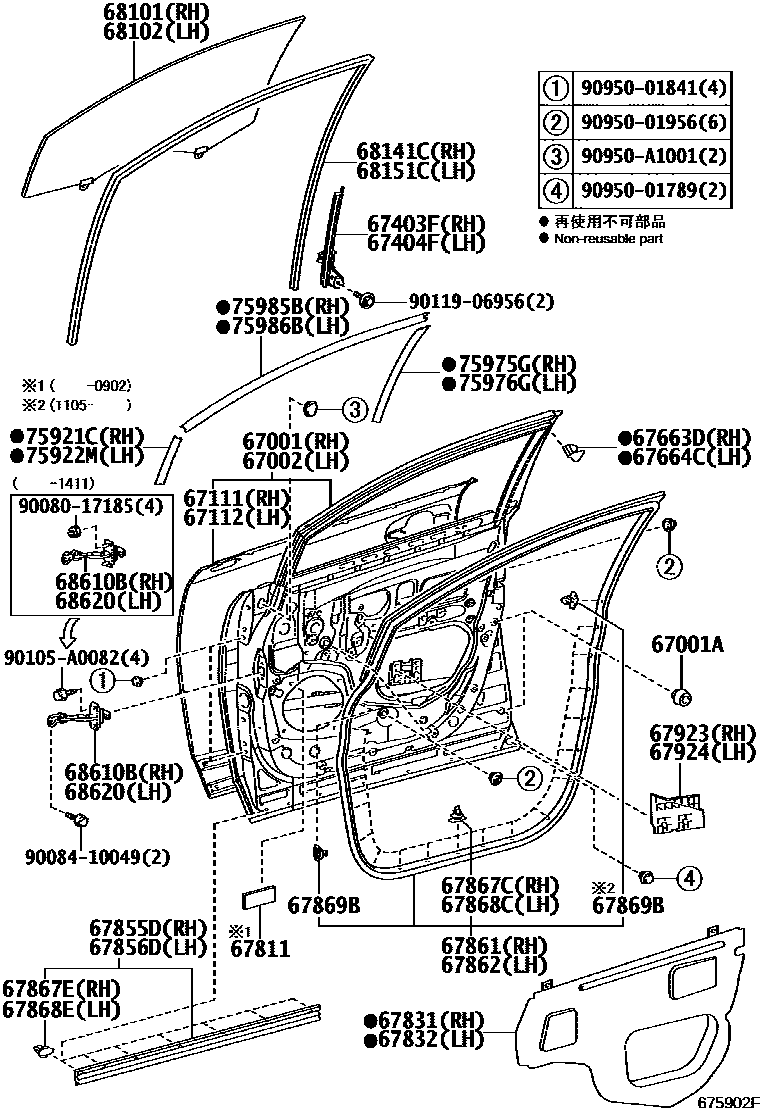

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0T020iAGV1#,GGV1#200811-200909

main67001-0T021iAGV1#,GGV1#200910-201106

main67001-0T022iAGV1#,GGV1#201106-201205

67001ACUSHION, FRONT DOOR PANEL

main90084-54012×4iAGV1#,GGV1#201205

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0T020iAGV1#,GGV1#200811-200909

main67002-0T021iAGV1#,GGV1#200910-201106

main67002-0T022iAGV1#,GGV1#201106-201205

67111PANEL, FRONT DOOR, OUTER RH

main67111-0T010iAGV1#,GGV1#201205

67112PANEL, FRONT DOOR, OUTER LH

main67112-0T010iAGV1#,GGV1#201205

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0T010iAGV1#,GGV1#201205-201505

main67403-0T011iAGV1#,GGV1#201506

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0T010iAGV1#,GGV1#201205-201505

main67404-0T011iAGV1#,GGV1#201506

67663DGARNISH, DOOR FRAME, RH

main67663-06010iAGV1#,GGV1#200811-201205

67664CGARNISH, DOOR FRAME, LH

main67664-06010iAGV1#,GGV1#200811-201205

67811PAD, FRONT DOOR SILENCER

main67811-AA040×2iAGV1#,GGV1#200811-200902

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0T011iAGV1#,GGV1#200811-201007

main67831-0T012iAGV1#,GGV1#201008-201109

main67831-0T013iAGV1#,GGV1#201110-201205

main67831-0T020iAGV1#,GGV1#201205

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0T011iAGV1#,GGV1#200811-201007

main67832-0T012iAGV1#,GGV1#201008-201109

main67832-0T013iAGV1#,GGV1#201110-201205

main67832-0T020iAGV1#,GGV1#201205

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-0T010iAGV1#,GGV1#200811-201205

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-0T010iAGV1#,GGV1#200811-201205

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0T010iAGV1#,GGV1#200811-200911

main67861-0T011iAGV1#,GGV1#200912-201105

main67861-0T012iAGV1#,GGV1#201105-201205

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0T010iAGV1#,GGV1#200811-200911

main67862-0T011iAGV1#,GGV1#200912-201105

main67862-0T012iAGV1#,GGV1#201205

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iAGV1#,GGV1#200901-201205

main67868-02020×17iGGV1#200811-200901

67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH

main67867-12150×7iAGV1#,GGV1#201205

main67868-02020×7iGGV1#200811-200901

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iAGV1#,GGV1#200811-201205

67868ERETAINER, FRONT DOOR LOWER PROTECTOR, LH

main67867-12150×7iAGV1#,GGV1#201205

main67868-02020×7iAGV1#,GGV1#200811-201205

67869BCLIP, FRONT DOOR WEATHERSTRIP

main90467-A0027×2iAGV1#,GGV1#200811-201105

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-06090iAGV1#,GGV1#200811-201205

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-06020iAGV1#,GGV1#201205

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0T010iAGV1#,GGV1#200811-201205

*HSEA,T=5.0,GREEN

main68101-0T011iAGV1#,GGV1#201206

*HSEAL,T=4.96,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0T010iAGV1#,GGV1#200811-201205

*HSEA,T=5.0,GREEN

main68102-0T011iAGV1#,GGV1#201206

*HSEAL,T=4.96,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-0T010iAGV1#,GGV1#200811-201205

68151CRUN, FRONT DOOR GLASS, LH

main68151-0T010iAGV1#,GGV1#200811-201205

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0T010iAGV1#,GGV1#200811-201205

main68610-0T011iAGV1#,GGV1#201411

68620CHECK ASSY, FRONT DOOR, LH

main68620-0T010iAGV1#,GGV1#200811-201205

main68620-0T011iAGV1#,GGV1#201411

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0T010iAGV1#,GGV1#200811-201205

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0T010iAGV1#,GGV1#200811-201205

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-0T010iAGV1#,GGV1#200811-201205

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-0T010iAGV1#,GGV1#200811-201205

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-0T010iAGV1#,GGV1#200811-201205

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-0T010iAGV1#,GGV1#200811-201205

9008017185

main90080-17185

9008410049

main90084-10049

90105A0082

main90105-A0082

9011906956

main90119-06956

9095001789

main90950-01789

9095001841

main90950-01841

9095001956

main90950-01956

90950A1001

main90950-A1001

43 parts on this diagram · 2 diagrams in section
