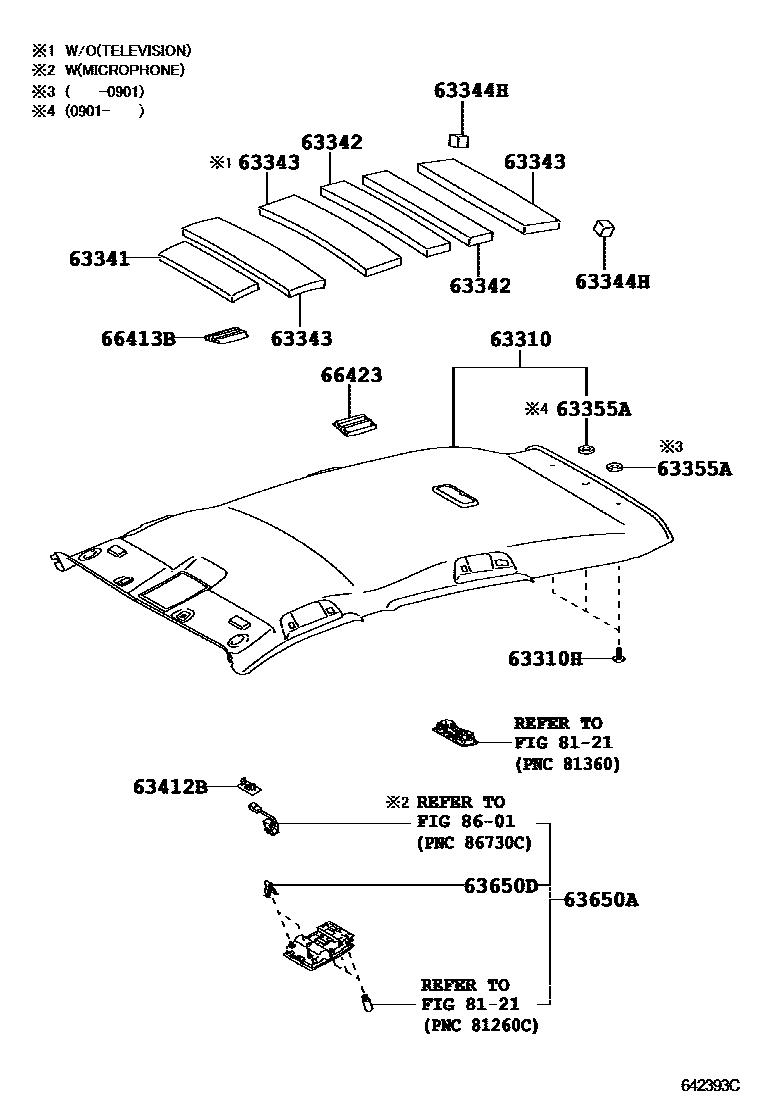

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-0T020-A0supersedes 63310-0T032-A0i200811-200907

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#; CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0#

main63310-0T020-B0supersedes 63310-0T011-B0i200811-200907

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1#; CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1#

main63310-0T021-A0supersedes 63310-0T032-A0i200908-200910

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#; CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0#

main63310-0T021-B0supersedes 63310-0T011-B0i200908-200910

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1#; CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1#

main63310-0T022-A0supersedes 63310-0T012-A0i200911-201205

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#; CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0#

main63310-0T022-B0supersedes 63310-0T012-B0i200911-201205

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1#; CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1#

main63310-0T023-A0supersedes 63310-0T032-A0i201207-201612

MOON ROOF-WITH,IVORY,TRIM0#

main63310-0T023-B0supersedes 63310-0T032-B0i201207-201612

MOON ROOF-WITH,GRAY,TRIM1#,2#

main63310-0T030-A0supersedes 63310-0T032-A0i200811-200907

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#; CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0#

main63310-0T030-B0supersedes 63310-0T011-B0i200811-200907

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1#; CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1#

main63310-0T031-A0supersedes 63310-0T032-A0i200908-200910

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#; CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0#

main63310-0T031-B0supersedes 63310-0T011-B0i200908-200910

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1#; CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1#

main63310-0T032-A0supersedes 63310-0T012-A0i200911-201205

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#; CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0#

main63310-0T032-B0supersedes 63310-0T012-B0i200911-201205

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1#; CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1#

main63310-0T040-A0supersedes 63310-0T032-A0i200811-200907

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0#

main63310-0T040-B0supersedes 63310-0T011-B0i200811-200907

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1#

main63310-0T041-A0supersedes 63310-0T032-A0i200908-200910

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0#

main63310-0T041-B0supersedes 63310-0T011-B0i200908-200910

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1#

main63310-0T042-A0supersedes 63310-0T012-A0i200911-201205

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0#

main63310-0T042-B0supersedes 63310-0T012-B0i200911-201205

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-A0×3i200811-201205

IVORY,TRIM0#

main90467-05164-B0×3i200811-201205

LT.GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63344-0T020i200811-201205

63342PAD, ROOF SILENCER, NO.2

main63342-0T020×2i200811-201205

63343PAD, ROOF SILENCER, NO.3

main63344-0T010×2i200811-201205

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V)

63344HPAD, ROOF SILENCER, NO.4

main63344-0T050×2supersedes 63344-0T040i200811-201205

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH

63355APAD, ROOF SILENCER, NO.14

main63355-0T010i200811-201205

63412BRETAINER, ROOF CONSOLE

main63412-33010i201205

63650ABOX ASSY, ROOF CONSOLE

main63650-0T020-A0supersedes 63650-0T010-A0i200911-201205

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#; CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0#

main63650-0T020-B0supersedes 63650-0T011-B0i200811-200911

CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,LT.GRAY,TRIM1#

main63650-0T030-A0supersedes 63650-0T011-A0i200811-200911

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#

main63650-0T030-B0supersedes 63650-0T011-B0i200811-200911

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1#

main63650-0T040-A0supersedes 63650-0T010-A0i200911-201205

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#; CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0#

main63650-0T040-B0supersedes 63650-0T021-B0i201205-201206

MOON ROOF-WITH,LT.GRAY,TRIM1#,2#

main63650-0T041-A0supersedes 63650-0T021-A0i201206-201612

MOON ROOF-WITH,IVORY,TRIM0#

main63650-0T041-B0supersedes 63650-0T021-B0i201206-201612

MOON ROOF-WITH,LT.GRAY,TRIM1#,2#

main63650-0T050-A0supersedes 63650-0T021-A0i200811-200911

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0#

main63650-0T050-B0supersedes 63650-0T010-B0i200811-200911

CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1#

main63650-0T060-A0i201205-201506

KOREA SPEC&MOON ROOF-WITH&AUDIO-AVX JBL 13SPEAKER,IVORY,TRIM0#

main63650-0T060-B0i201205-201506

KOREA SPEC&MOON ROOF-WITH&AUDIO-AVX JBL 13SPEAKER,LT.GRAY,TRIM1#,2#

63650DCLIP(FOR ROOF CONSOLE BOX)

main90468-05125×2i201205

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0T010i201205

66423SPACER, SIDE RAIL, FRONT LH

main66423-0T010i200811-201205

8121INTERIOR LAMP

→ Go to FIG 81-21

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

14 parts on this diagram · 2 diagrams in section
