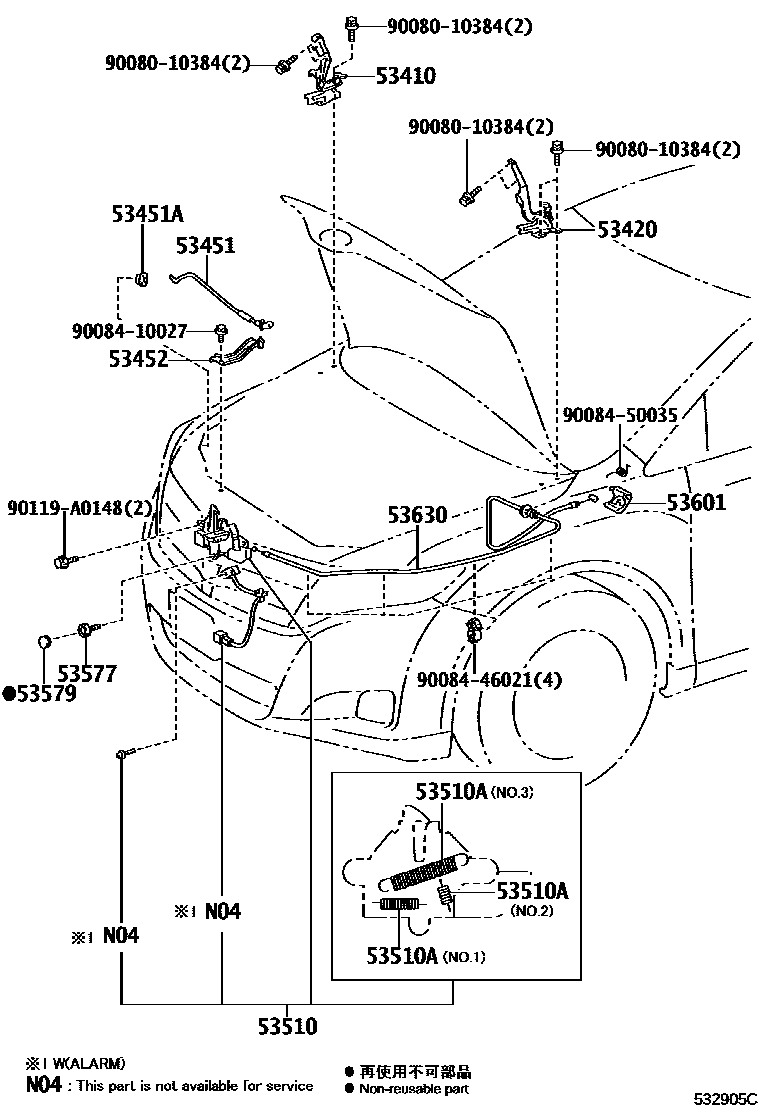

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0T010iAGV1#,GGV1#200811-201205

53420HINGE ASSY, HOOD, LH

main53420-0T010iAGV1#,GGV1#200811-201205

53451ROD, HOOD SUPPORT

main53440-0T010iAGV1#,GGV1#200811-201205

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15027iAGV1#,GGV1#200811-201205

53452HOLDER, HOOD STAY

main53452-0T010iAGV1#,GGV1#200811-201205

53510LOCK ASSY, HOOD

main53510-0T020supersedes 53510-0T010iAGV1#,GGV1#200811-201003

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

main53510-0T021supersedes 53510-0T010iAGV1#,GGV1#201004-201010

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

main53510-0T022supersedes 53510-0T010iAGV1#,GGV1#201011-201205

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAGV1#,GGV1#200811-201205

WD=0.9,CW=21,NO.1

main90506-12063iAGV1#,GGV1#201205

WD=1.2,CW=8.5,NO.2

main90506-18067iAGV1#,GGV1#200811-201205

WD=1.8,CW=13,NO.3

53577BOLT, HOOD LOCK

main53577-33010iAGV1#,GGV1#201205

53579CAP, HOOD LOCK NUT

main53579-0E010iAGV1#,GGV1#200811-201205

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-AA010-A0iAGV1#,GGV1#201205-201612

IVORY,TRIM0#

main53611-AA010-B3iAGV1#,GGV1#200811-201205

LT.GRAY,TRIM1#

main53611-AA010-C0iAGV1#,GGV1#201205-201612

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0T010iAGV1#,GGV1#200811-201205

9008010384

main90080-10384

9008410027

main90084-10027

9008446021

main90084-46021

9008450035

main90084-50035

90119A0148

main90119-A0148

16 parts on this diagram · 1 diagram in section
