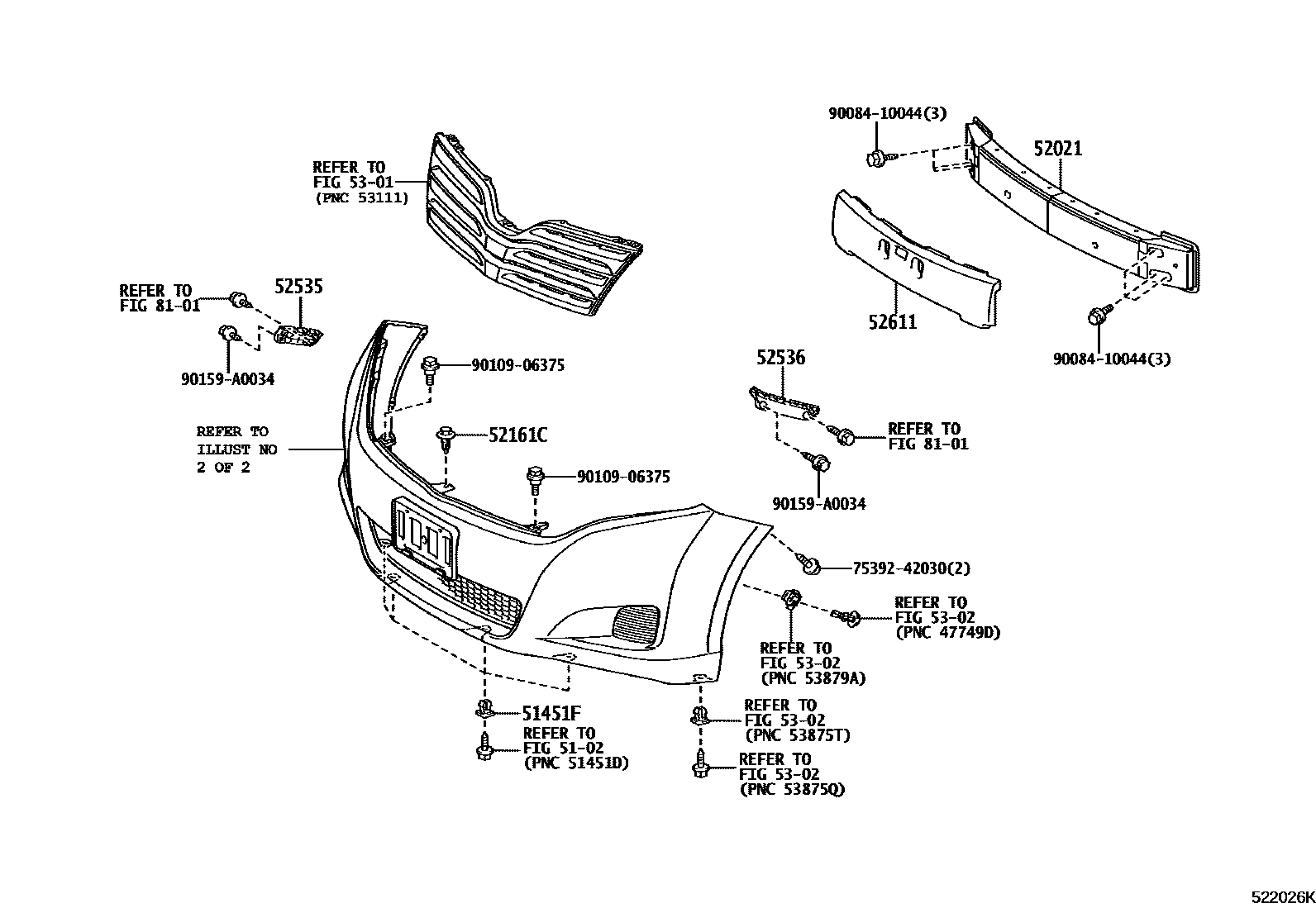

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451FGROMMET, NO.1

main90189-06193×4iAGV1#,GGV1#201205-201612

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06041iAGV1#,GGV1#200811-201205

52161CPIECE, FRONT BUMPER

main52161-02020iAGV1#,GGV1#200811-201205

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0T010iAGV1#,GGV1#200811-201205

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0T010iAGV1#,GGV1#200811-201205

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0T010iAGV1#,GGV1#201205

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

8101HEADLAMP

→ Go to FIG 81-01

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9008410044

main90084-10044

9010906375

main90109-06375

90159A0034

main90159-A0034

14 parts on this diagram · 4 diagrams in section
