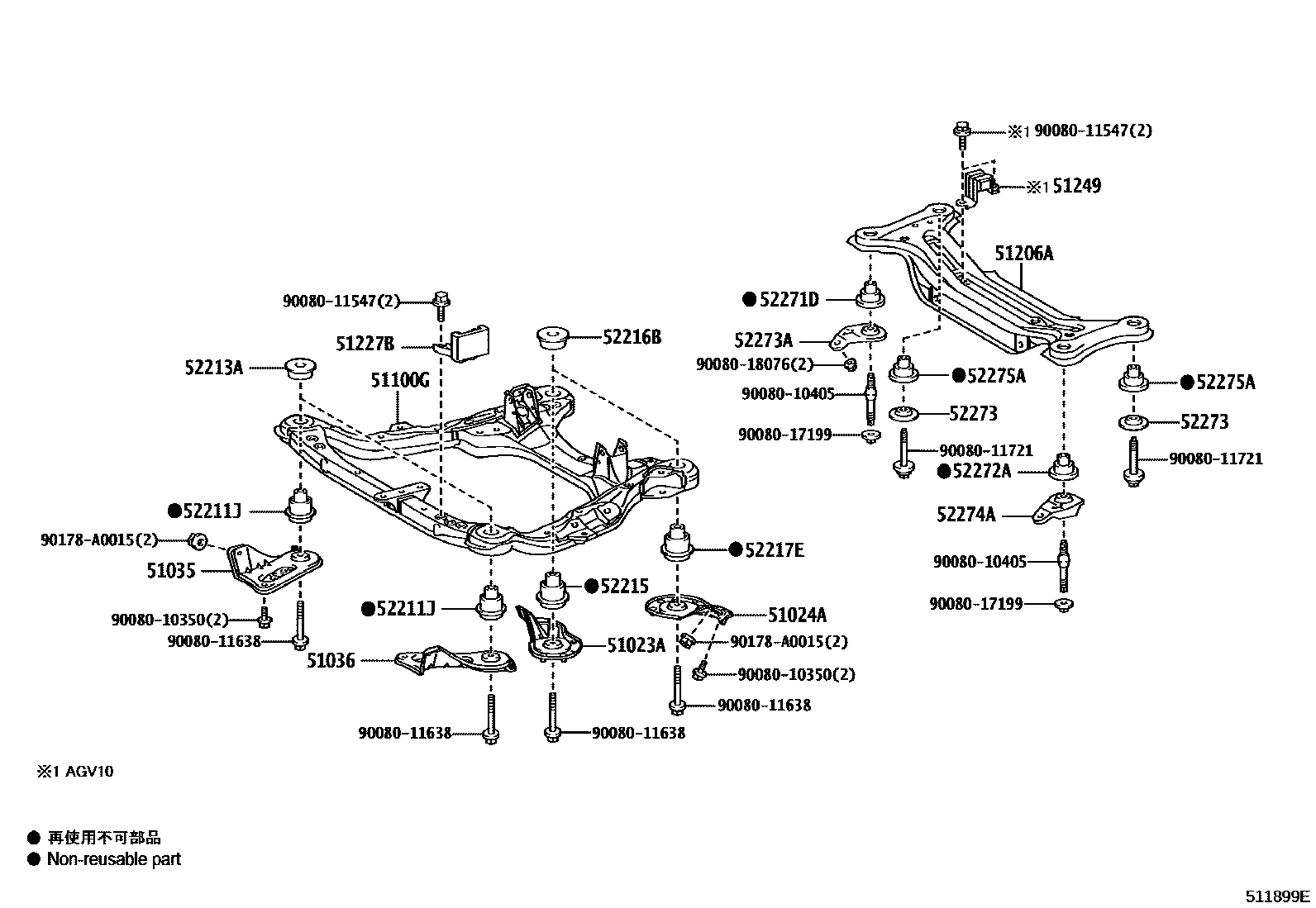

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1ENGINE UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-0T010iAGV1#,GGV1#200811-201205

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-0T010iAGV1#,GGV1#200811-201205

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0T010iAGV1#,GGV1#200811-201205

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0T010iAGV1#,GGV1#200811-201205

51100GFRAME ASSY, FRONT

main51100-0T010iAGV1#,GGV1#200811-201103

main51100-0T020iAGV1#,GGV1#201103-201205

main51100-0T021iAGV1#,GGV1#201305-201403

main51100-0T022iAGV1#,GGV1#201403-201411

main51100-0T023iAGV1#,GGV1#201412-201612

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06102iAGV10,GGV10200811-201007

main51206-06103iAGV10,GGV10201008-201205

main51206-06104iAGV10,GGV10201205-201303

main51206-06105iAGV10,GGV10201304

main51206-0T020iAGV15,GGV15200811-201205

main51206-0T021iAGV15,GGV15201308

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iAGV10,GGV10200811-201205

51249DAMPER, REAR SUSPENSION MEMBER

main51249-06050iAGV10200901-201004

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-0E010×2iAGV1#,GGV1#200811-201205

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-0E010×2iAGV1#,GGV1#200811-201205

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-08020iAGV1#,GGV1#200811-201205

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-08020×2iAGV1#,GGV1#200811-201205

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-08010iAGV1#,GGV1#200811-201205

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06050iAGV10,GGV10200811-201103

main52271-06051iAGV10,GGV10201104-201205

main52271-0E010×2iAGV15,GGV15200811-201205

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-0E010×2iAGV15,GGV15200811-201205

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-06040iAGV10,GGV10200811-201103

main52272-06041iAGV10,GGV10201104-201205

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010×2iAGV10,GGV10200811-201205

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-0E010iAGV10,GGV10200811-201205

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-0E010iAGV10,GGV10200811-201205

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06050×2iAGV10,GGV10200811-201103

main52275-06051×2iAGV10,GGV10201104-201205

main52275-0E010×2iAGV15,GGV15200811-201205

9008010350

main90080-10350

9008010405

main90080-10405

9008011547

main90080-11547

9008011638

main90080-11638

9008011721

main90080-11721

9008017199

main90080-17199

9008018076

main90080-18076

90178A0015

main90178-A0015

28 parts on this diagram · 3 diagrams in section
