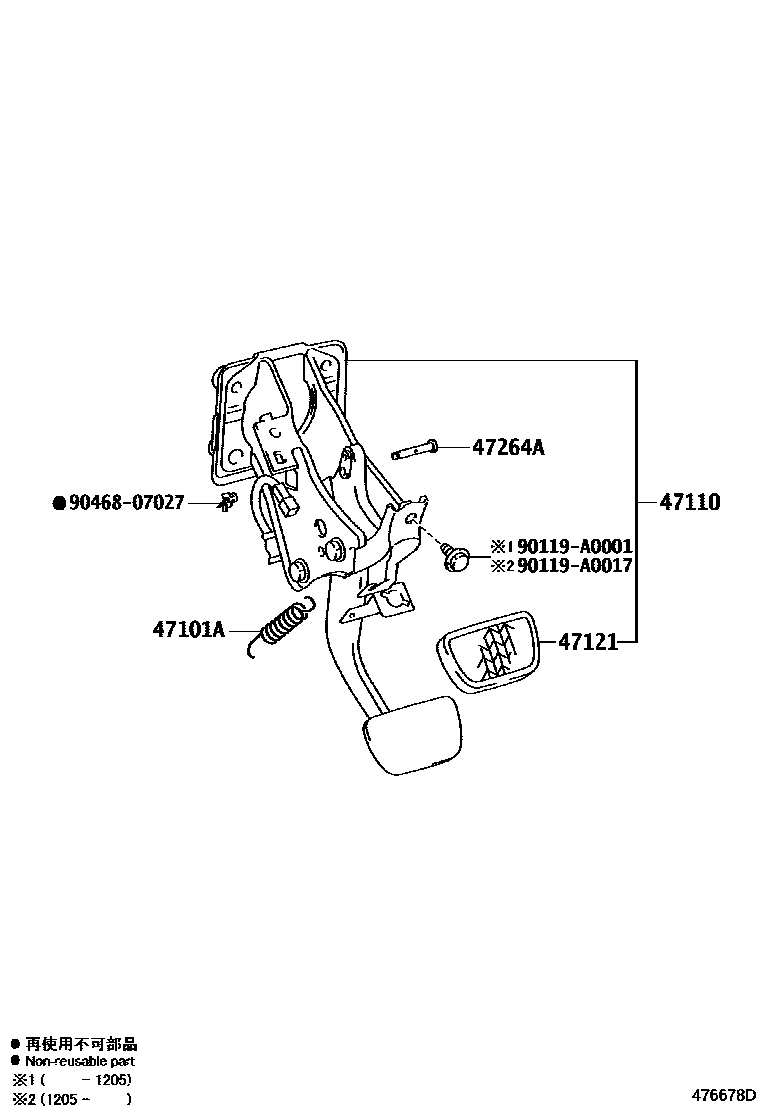

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15003iAGV1#,GGV1#200811-201205

main90507-15006iAGV1#,GGV1#201205

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0T011iAGV1#,GGV1#200811-201205

47121PAD, BRAKE PEDAL

main47121-0E010iAGV1#,GGV1#200811-201205

47264APIN(FOR PUSH ROD)

main90249-06180iAGV1#,GGV1#200811-201205

90119A0001

main90119-A0001

90119A0017

main90119-A0017

9046807027

main90468-07027

7 parts on this diagram · 1 diagram in section
