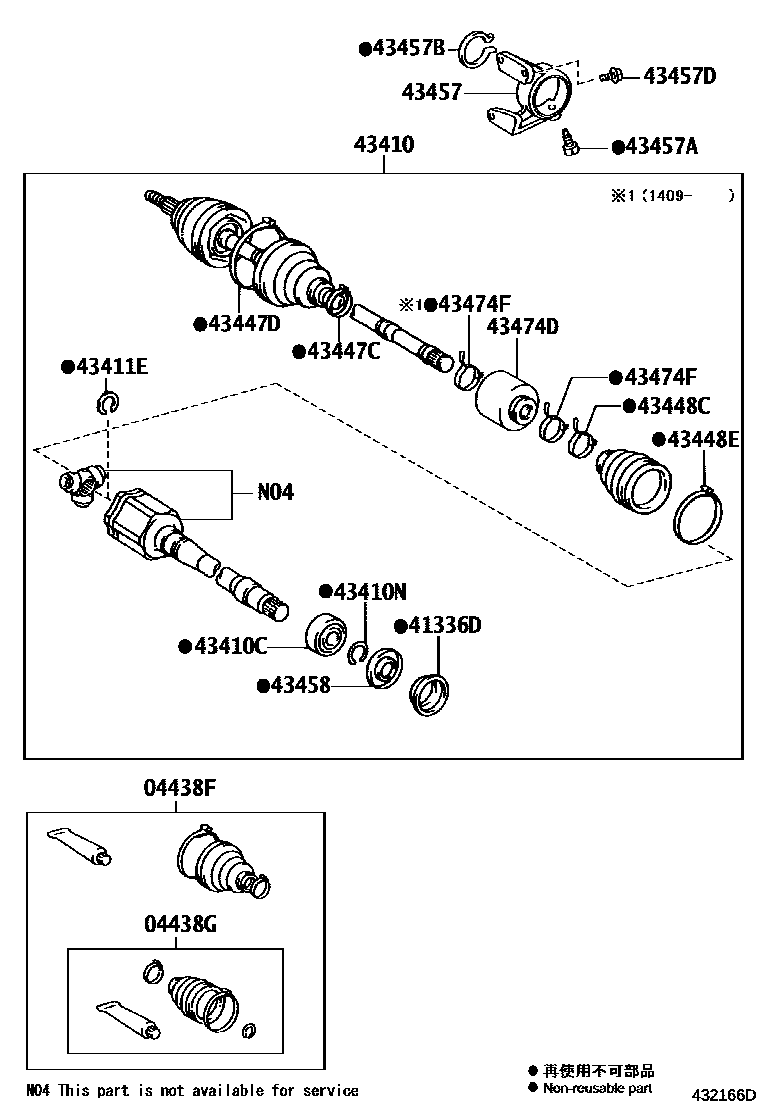

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06500iAGV10201205-201507

main04427-06550iAGV10201507

main04427-0E030iGGV1#200811-201205

sub04428-0E060

main04427-0T030iAGV1#200901-201205

main04427-0T060iAGV15201205-201507

main04427-0T080iAGV15201507

main04428-06570iGGV1#201507

main04428-0W070iGGV1#201205-201507

main04427-0T070iGGV15201205-201507

KOREA SPEC

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-06270iAGV10201205

main04437-0T030iAGV1#200901-201205

main04437-0T040iAGV15201205

main04438-08130iGGV1#201205

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iAGV10,GGV10201205

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0T010iGGV10201205-201506

main43410-0T011iGGV10201507

main43410-0T020iAGV10201205-201506

main43410-0T021iAGV10201507

sub43410-0T022

main43410-0T030iGGV15201205-201506

main43410-0T031iGGV15201507

main43410-0T040iAGV15201205-201506

main43410-0T041iAGV15201507

main43410-0T060iAGV10201205-201507

KOREA SPEC

main43410-0T080iGGV15201205-201507

KOREA SPEC

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iAGV10,GGV10201205

main90363-36006iAGV15,GGV15200811-200902

main90363-A0007iAGV15,GGV15200903-201205

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iAGV10,GGV10200811-201205

main90080-52054iAGV15,GGV15200811-201205

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iAGV1#,GGV1#200811-201205

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iAGV1#,GGV1#200811-201205

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06250iAGV1#,GGV1#200811-201205

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08070iGGV1#200811-201205

main42345-0T060iAGV1#200901-201205

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06240iGGV1#201205

main42345-0T050iAGV1#200901-201205

43457BRACKET, DRIVE SHAFT BEARING

main43457-0T010iAGV10200901-201205

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iAGV10,GGV10201205

*10-1.25PX19.8-8.3

main90901-19060iAGV15,GGV15201205

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-73001iAGV15,GGV15200811-201205

main90521-78002iAGV10,GGV10200811-201205

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iAGV10200901-201205

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iAGV10,GGV10201205

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06300iAGV1#,GGV1#201507

sub43474-06540

main43474-0W030iAGV1#,GGV1#200811-201205

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iAGV1#,GGV1#200811-201205

main42345-06790×2iAGV1#,GGV1#201507

18 parts on this diagram · 4 diagrams in section
