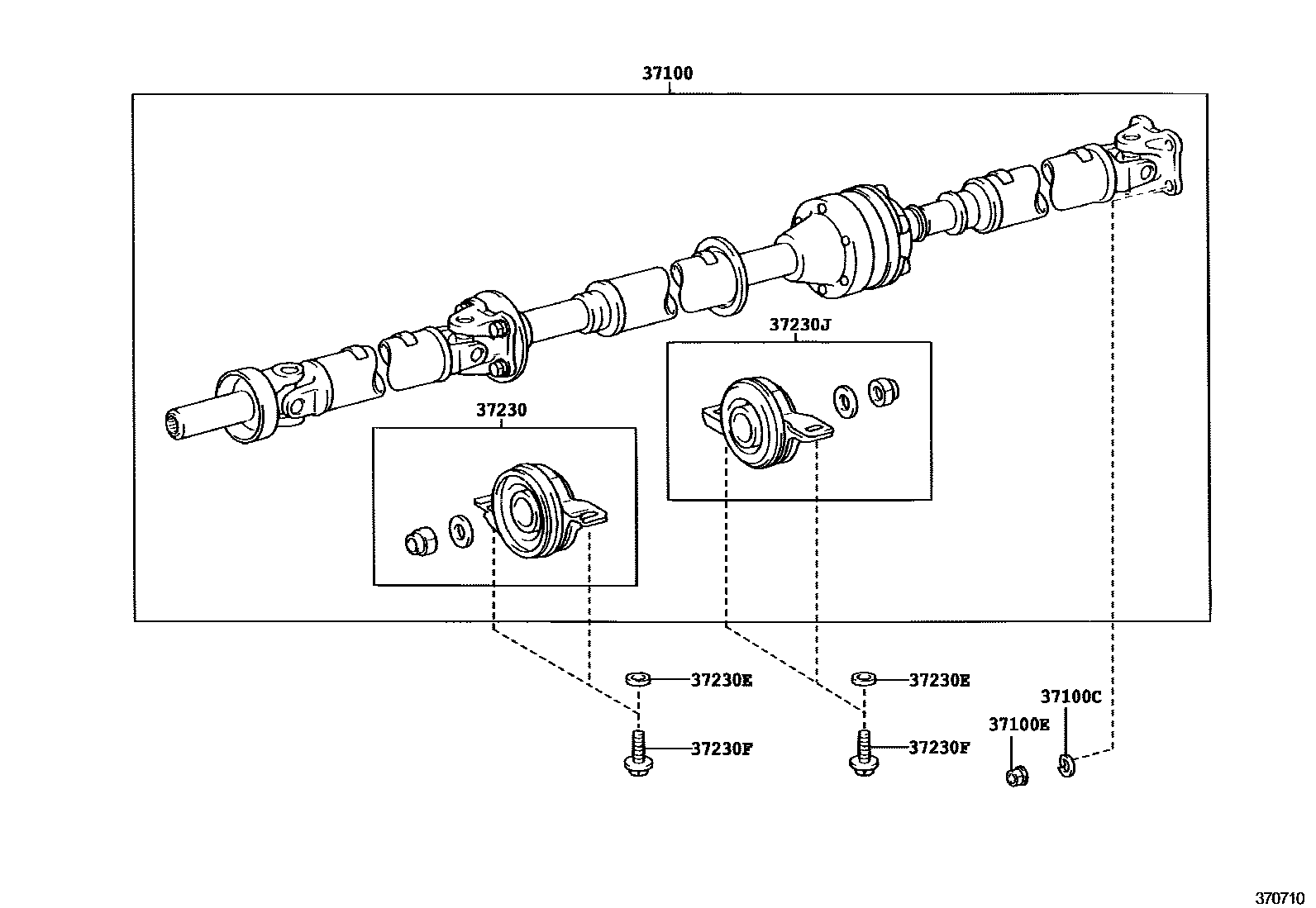

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-33030iAGV15,GGV15201205

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90560-10102×4iAGV15,GGV15200811-201205

37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08268×4iAGV15,GGV15200811-201205

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-39015iAGV15,GGV15200811-201205

37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)

main90201-10081iAGV15,GGV15201205

T=4.5

main90201-10083iAGV15,GGV15200811-201205

T=6.5

main90201-10084iAGV15,GGV15200811-201205

T=9.0

main90201-10095iAGV15,GGV15201205

T=3.2

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-A0246×4iAGV15,GGV15200811-201205

*10-1.25PX35-35

37230JBEARING ASSY, CENTER SUPPORT, NO.2

main37230-39105iAGV15,GGV15201205

7 parts on this diagram · 1 diagram in section
