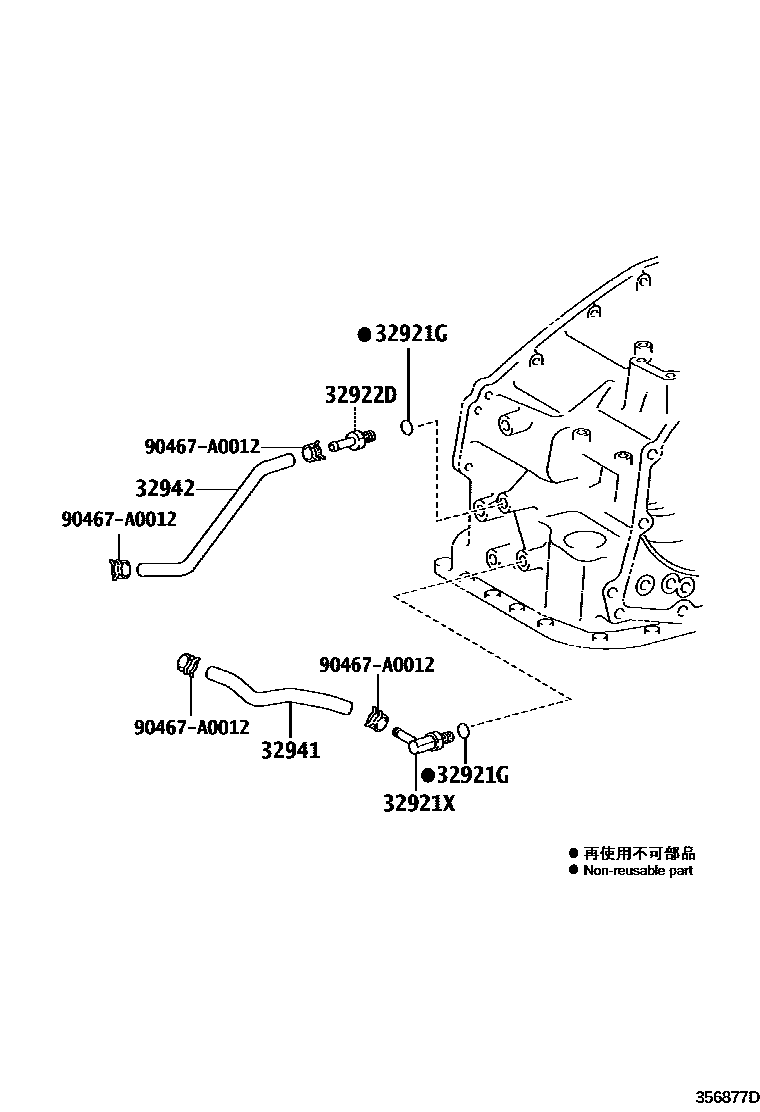

OIL COOLER & TUBE (ATM)

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iAGV1#200901-201108

main90301-11031×2iAGV1#201108-201205

main90301-A0022×2iGGV1#200811-201205

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iAGV1#,GGV1#201606

main90404-A0002iAGV1#,GGV1#201506-201606

main90407-14032iGGV1#201205-201309

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027iAGV1#,GGV1#201606

main90404-A0002iAGV1#,GGV1#201506-201606

32941HOSE, OIL COOLER INLET, NO.1

main32941-06060iAGV1#,GGV1#200811-201205

main32941-07020iAGV1#,GGV1#201308

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0T010iAGV1#,GGV1#200811-201001

main32942-0T011iAGV1#,GGV1#201205-201308

main32942-0T020iAGV1#,GGV1#201308

90467A0012

main90467-A0012

6 parts on this diagram · 1 diagram in section
