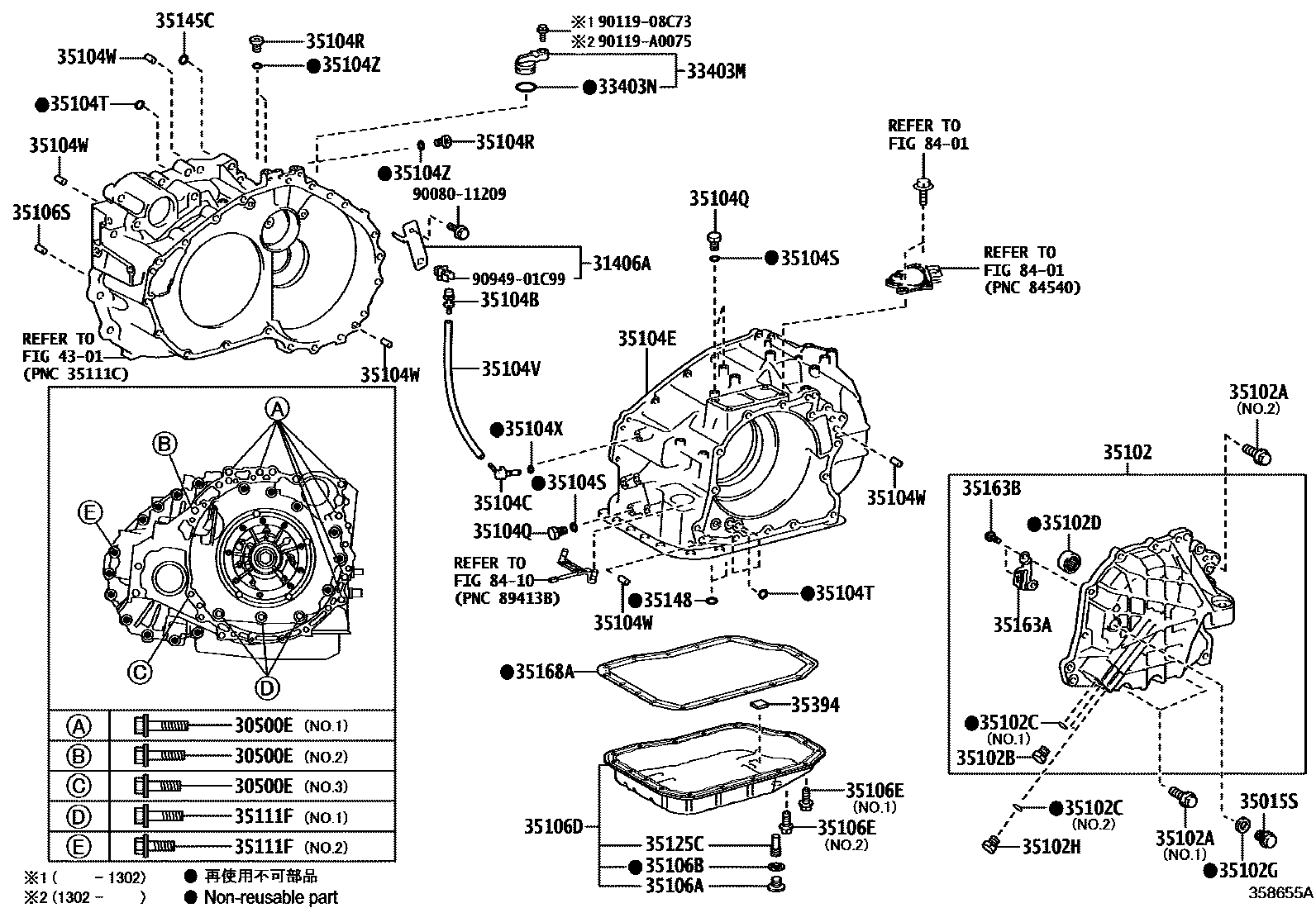

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX50-30,NO.1
*10-1.25PX41-30,NO.3
*12-1.25PX55-30,NO.1
*12-1.25PX55-30,NO.2
*12-1.25PX50-30,NO.2
31406ABRACKET SUB-ASSY, FLEXIBLE HOSE
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,NO.2
*8-1.25PX28-22,NO.2
35102BPLUG(FOR TRANSAXLE REAR COVER)
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
NO.1
(L),NO.1
NO.2
(J),NO.1
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
35102GGASKET (FOR TRANSAXLE REAR COVER )
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
(L)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104VHOSE (FOR BREATHER PLUG)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
NO.2
NO.1
35106SPIN, RING (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,(L),NO.1
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,(L),NO.2
*8-1.25PX45-22,NO.2
*8-1.25PX45-22,NO.2
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
35145CGASKET, TRANSAXLE CASE
(L)
35148GASKET, GOVERNOR APPLY, NO.1
35163APLATE, TRANSAXLE REAR COVER
(L)
(J)
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
(L)
(J)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
4301FRONT AXLE HOUSING & DIFFERENTIAL
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9008011209
main90080-11209
9011908C73
main90119-08C73
90119A0075
main90119-A0075
9094901C99
main90949-01C99
43 parts on this diagram · 2 diagrams in section
