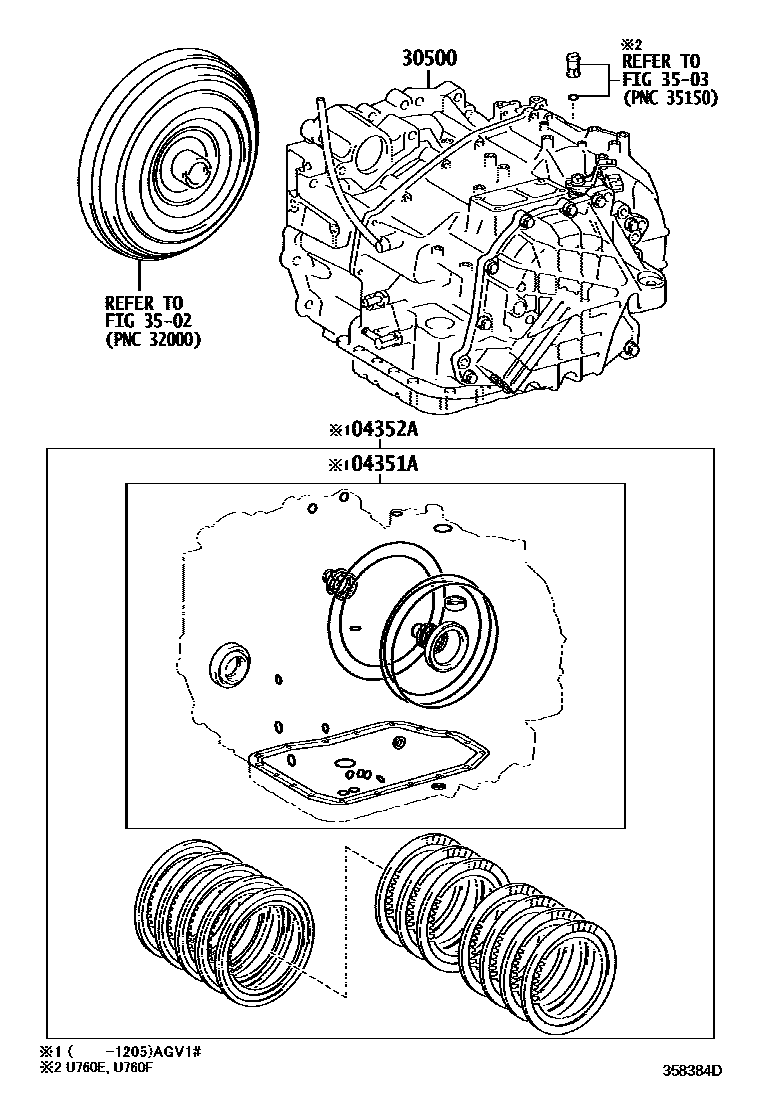

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48180iAGV10200901-201106

main04351-48182iAGV10201106-201205

main04351-73010iAGV15200901-201106

main04351-73012iAGV15201106-201205

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-48250iAGV10200901-201106

main04352-48252iAGV10201106-201205

main04352-73010iAGV15200901-201106

main04352-73012iAGV15201106-201205

30500TRANSAXLE ASSY, AUTOMATIC

main30500-0T010iGGV10200811-201205

U660E

main30500-0T011iGGV10201205-201309

U660E

main30500-0T012iGGV10201309

U660E

main30500-0T021iGGV15200811-201205

U660F

main30500-0T022iGGV15201205-201309

U660F

main30500-0T023iGGV15201309

U660F

main30500-0T030iAGV10201308

U760E,(L)

main30500-0T040iAGV15201308

U760F,(L)

main30500-73010iAGV10200901-200902

U760E

main30500-73011iAGV10201205-201308

U760E,(J)

main30500-73020iAGV15200901-201205

U760F

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

5 parts on this diagram · 1 diagram in section
