SHORT BLOCK ASSEMBLY

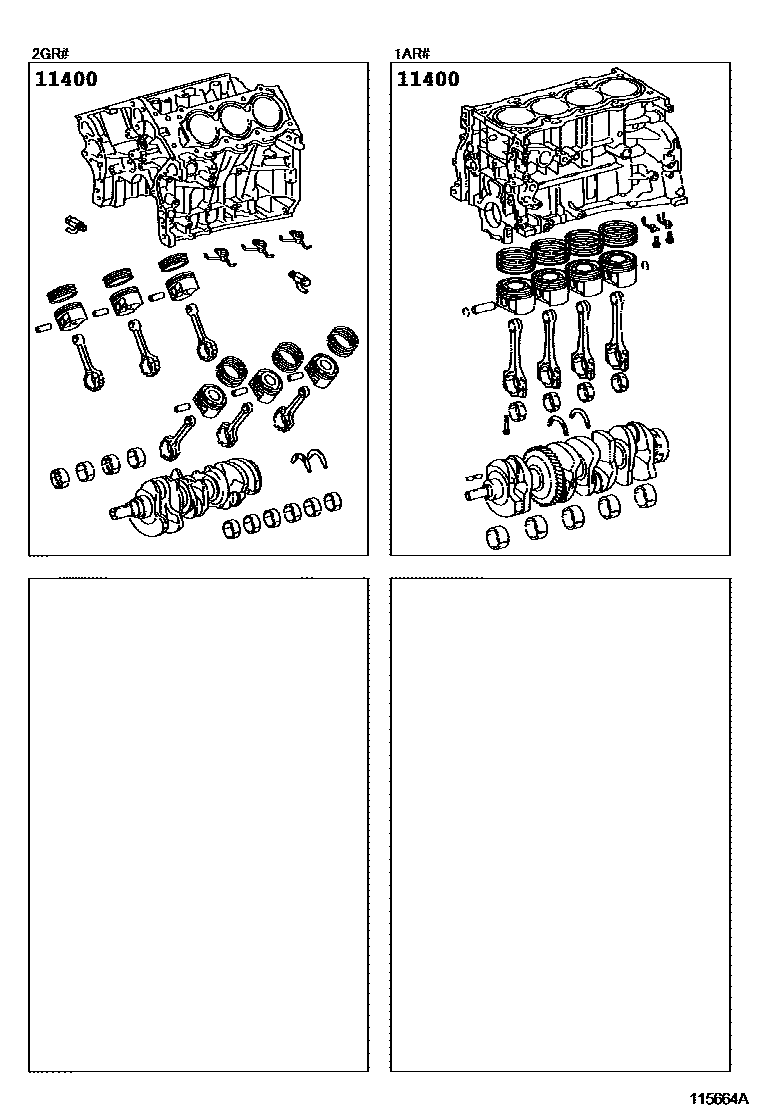

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0P050i200811-201205

(L)

main11400-0P051i201409-201509

(L)

main11400-0P052i201509

(L)

main11400-0V020i201408

(L)

main11400-31161i200811-200905

(J)

main11400-31163i201205-201210

(J)

main11400-36050i201004-201205

(J)

1 parts on this diagram · 1 diagram in section
