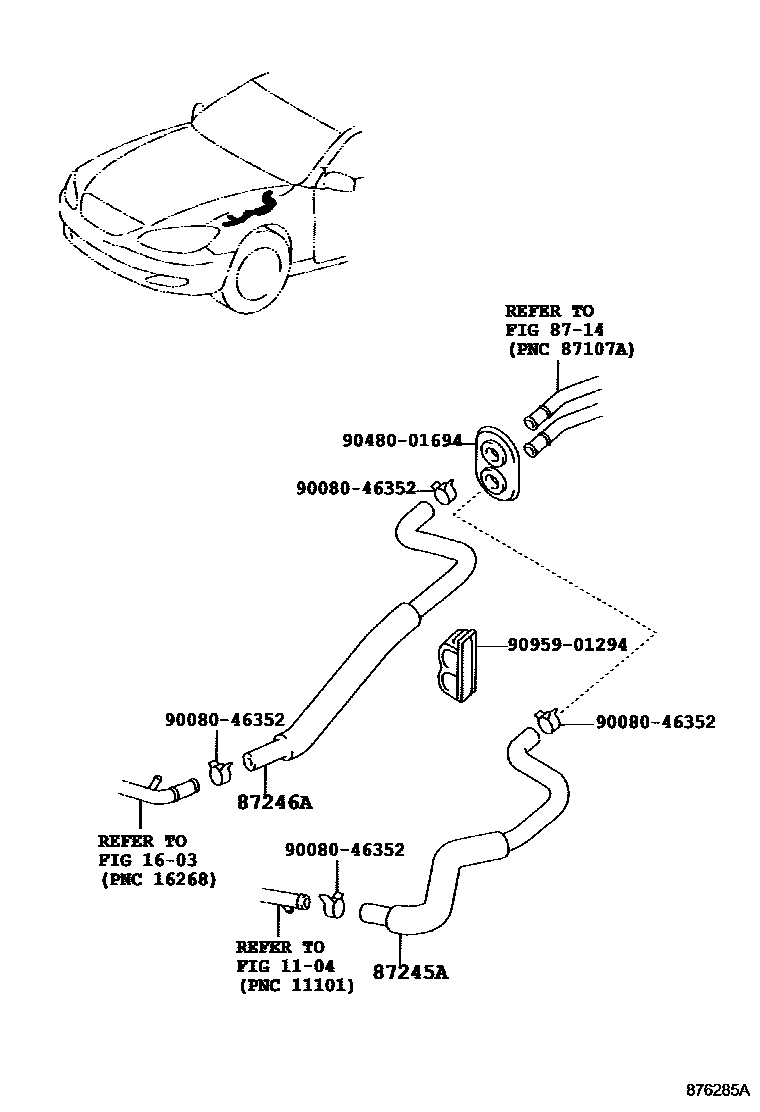

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-06380iMCV31200307-200605

87245AHOSE, HEATER WATER, INLET A

main87245-06160iACV30200307-200605

87246HOSE, HEATER WATER, OUTLET

main87245-06390iMCV31200307-200605

87246AHOSE, HEATER WATER, OUTLET A

main87245-06170iACV30200307-200605

9008046352

main90080-46352

9048001694

main90480-01694

9095901294

main90959-01294

10 parts on this diagram · 2 diagrams in section
