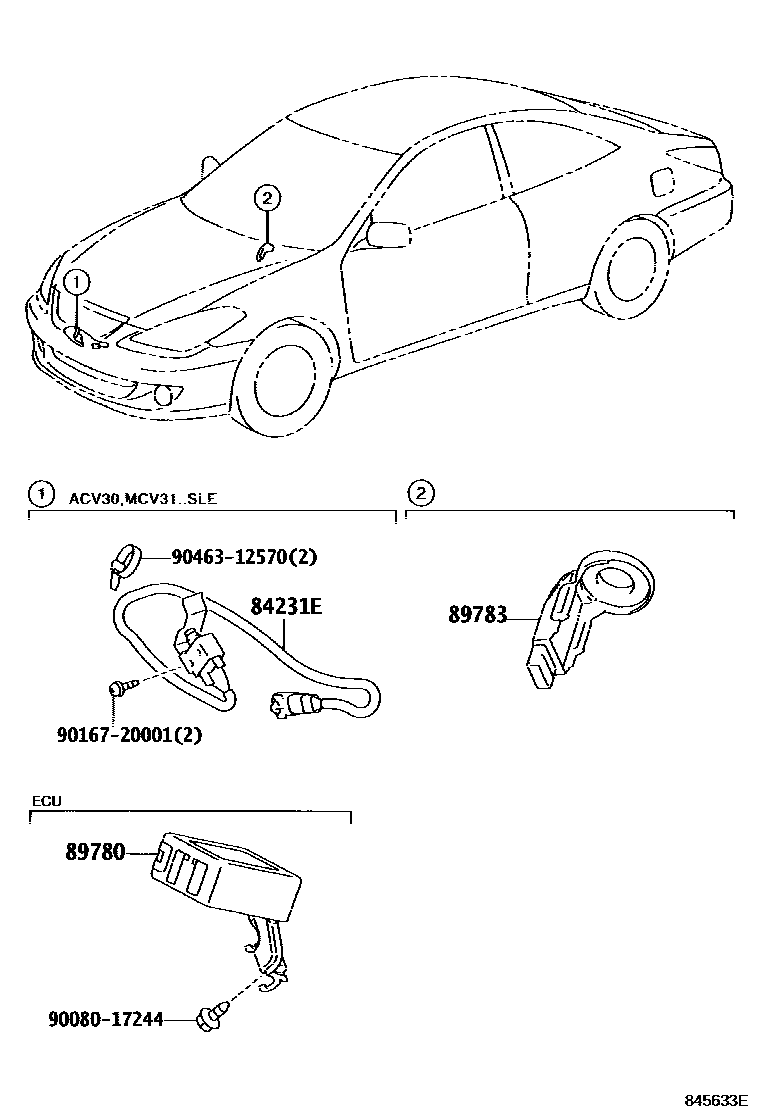

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-33090iACV30,MCV31..SLE200307-200605

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-06030iACV30,MCV31..CP200707-200808

main89780-AA010iACV30,MCV31200605-200707

89783AMPLIFIER, TRANSPONDER KEY

main89783-AA010iACV30,MCV31200307-200605

9008017244

main90080-17244

9016720001

main90167-20001

9046312570

main90463-12570

6 parts on this diagram · 1 diagram in section
