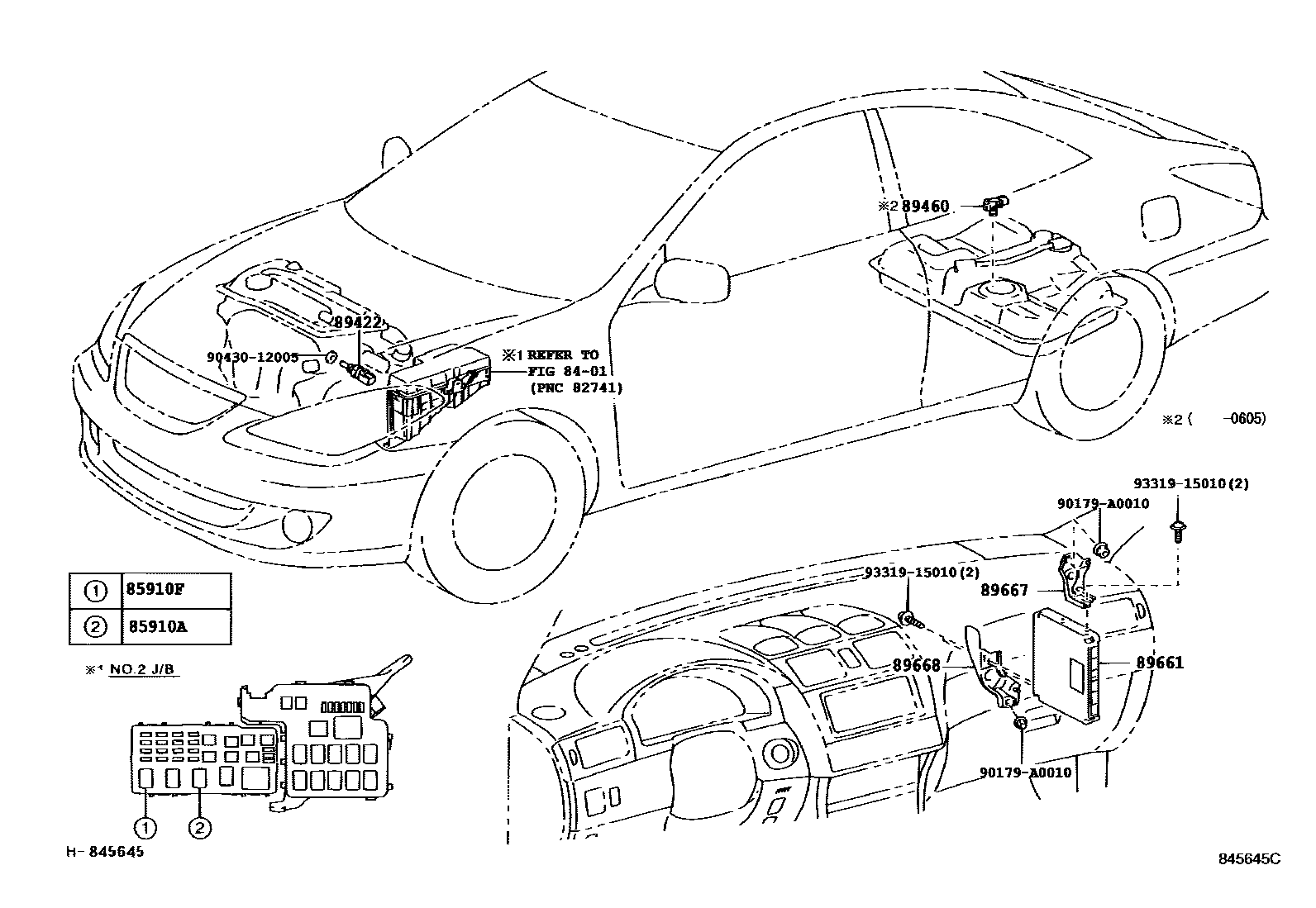

ELECTRONIC FUEL INJECTION SYSTEM
8401SWITCH & RELAY & COMPUTER
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
(L)
P/N LABEL=8942233020
(J)
P/N LABEL=8942235010
89460SENSOR ASSY, VAPOR PRESSURE
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
90179A0010
main90179-A0010
9043012005
main90430-12005
9331915010
main93319-15010
11 parts on this diagram · 2 diagrams in section
