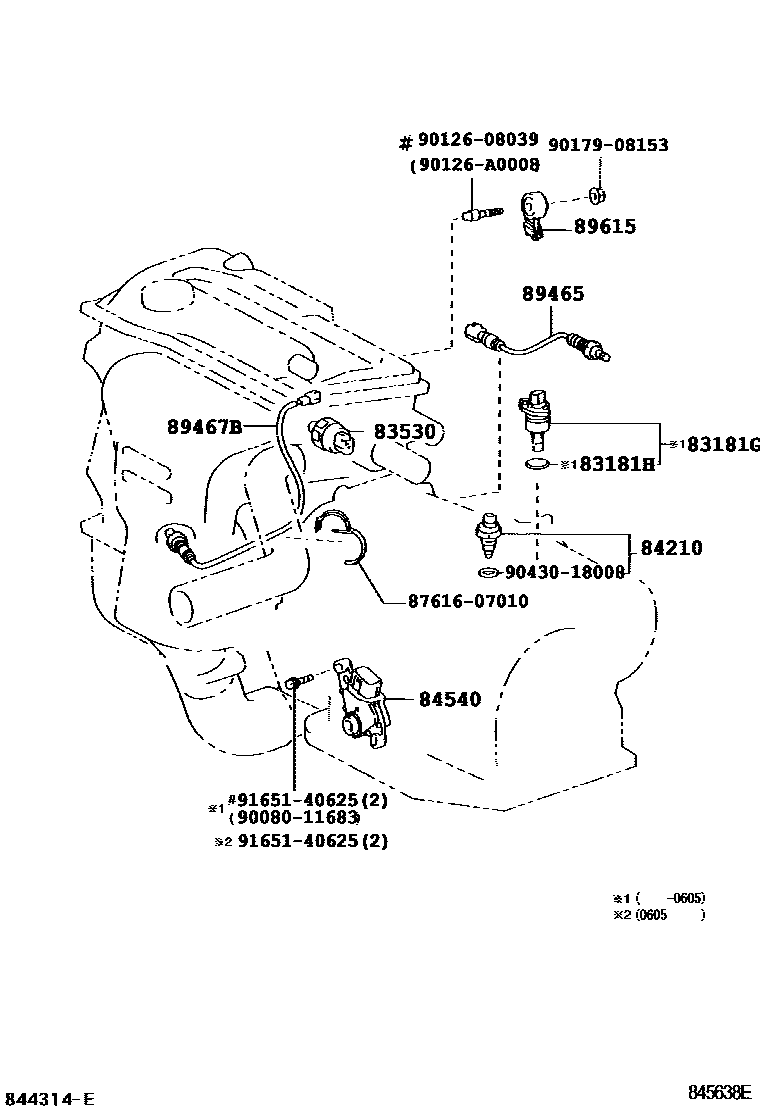

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1IGNITION & COMBINATION SWITCH0009 1IGNITION & COMBINATION SWITCH0010 1DOOR,ROOF,FLOOR,SEAT & LUGGAG0011 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

83181GSENSOR, SPEEDOMETER

main83181-12030iACV30..5F200307-200605

main83181-12040iACV30..4FC200307-200503

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iACV30200307-200503

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iACV30,MCV31200603-200605

DENSO

main83530-0E010iACV30,MCV31200605-200812

(L),DENSO

main83530-28020iACV30,MCV31200307-200603

DENSO

main83530-28020iACV30,MCV31200607-200812

(J),DENSO

main83530-AA011iACV30,MCV31200307-200812

FASCO

sub83530-0E010

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACV30..5F200307-200808

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-0E010iACV30,MCV31..5FC200307-200605

main84540-0E010iACV30..4FC200403-200812

(L)

main84540-48010iACV30..4FC200307-200808

main84540-48010iACV30..4FC200403-200812

(J)

89465SENSOR, OXYGEN

main89465-06120iACV30..4FC200307-200605

main89465-06130iMCV31..CVT200307-200808

main89465-06200iACV30200605-200808

89467BSENSOR, AIR FUEL RATIO

main89467-06010iMCV31..CVT200605-200808

main89467-06010iMCV31200407-200605

(L)

main89467-06030iACV30..4FC200407-200605

(L)

main89467-06030iACV30200605-200703

main89467-06070iACV30200704-200808

main89467-33080iACV30..4FC200407-200605

(J)

main89467-33080iACV30200307-200407

main89467-33100iMCV31200307-200407

main89467-33100iMCV31200407-200605

(J)

89615SENSOR, KNOCK CONTROL

main89615-06010iACV30..5F200406-200812

(L)

main89615-20090iACV30..5F,5FC200406-200812

(J)

main89615-20090iACV30200307-200406

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

9008011683

main90080-11683

9012608039

main90126-08039

90126A0008

main90126-A0008

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

15 parts on this diagram · 11 diagrams in section
