Toyota 284460 — WIRING & CLAMP

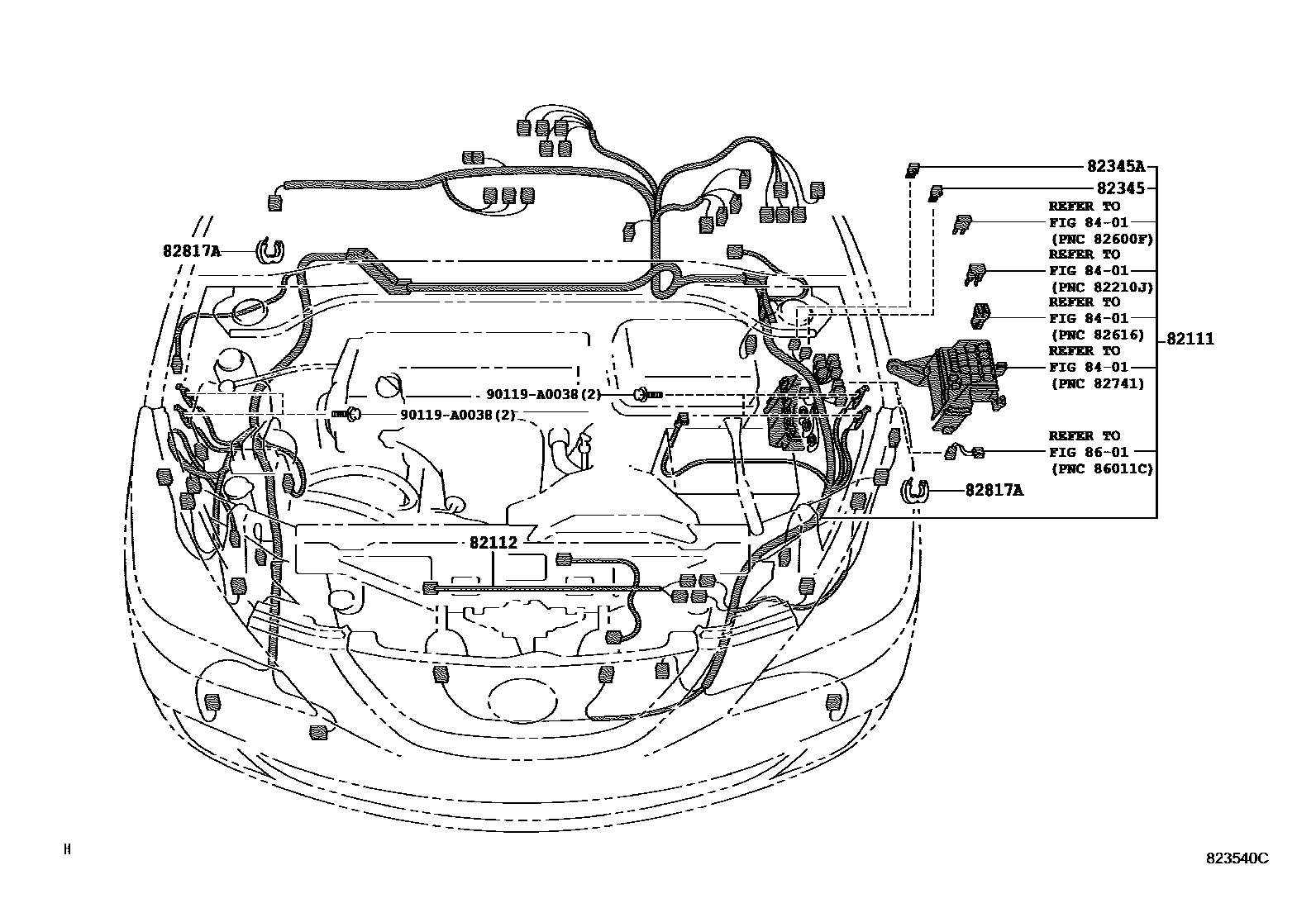

Parts diagram

82112WIRE, ENGINE ROOM, NO.2

82345DIODE

82345ADIODE

82817APROTECTOR, WIRING HARNESS, NO.2

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

90119A0038

8 parts on this diagram · 11 diagrams in section

WIRING & CLAMP for Toyota 284460

This section contains 95 genuine Toyota parts for the WIRING & CLAMP system of the Toyota 284460. Key components include: CABLE, BOND, NO.1, CABLE, BOND, NO.2, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE ROOM, NO.2, WIRE, ENGINE.
