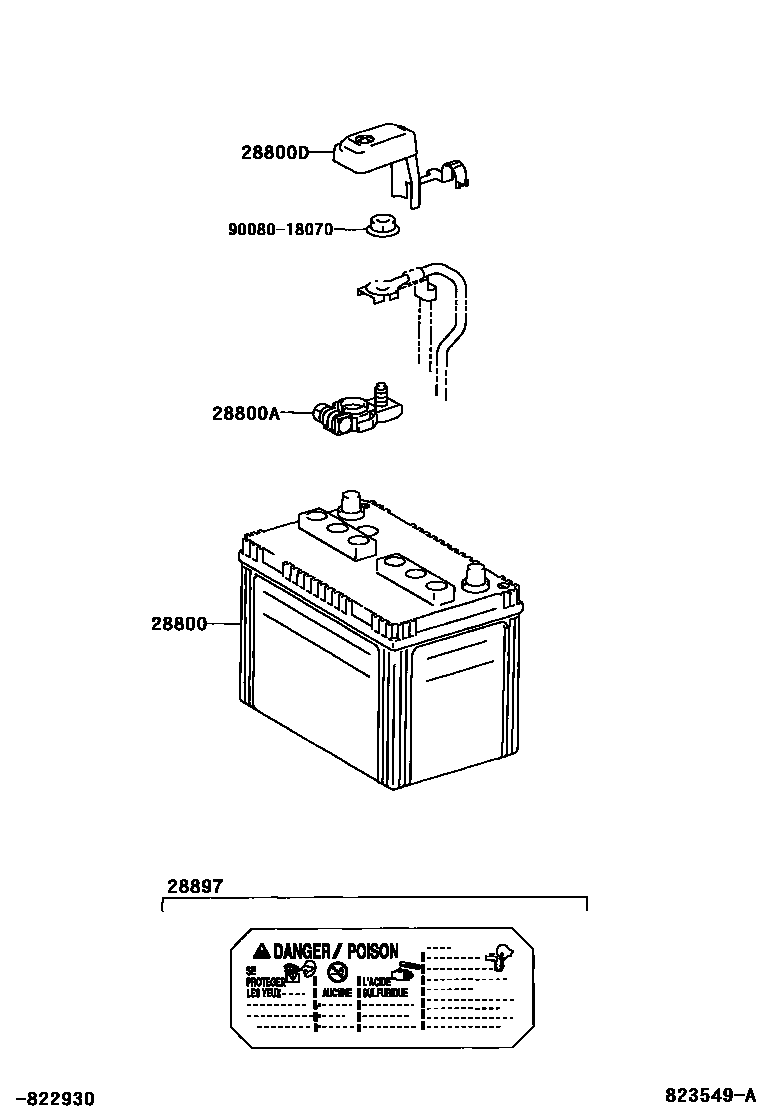

BATTERY & BATTERY CABLE

28800BATTERY

main28800-03044i2AZFE,3MZFE..ACV30,MCV31200605

80D26L,JOHNSON

main28800-07010i2AZFE,3MZFE..ACV30,MCV31200307-200605

80D26L,DELPHI

main28800-AA041i2AZFE,3MZFE..ACV30,MCV31200307-200605

80D26L,GNB

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i3MZFE..MCV31..CVT200605

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-06040i2AZFE,3MZFE..ACV30,MCV31..CP200605-200808

main82821-12490i2AZFE,3MZFE..ACV30,MCV31200307-200405

28897PLATE, BATTERY CAUTION

main28897-AA010i2AZFE,3MZFE..ACV30,MCV31..5FC200605

CANADA SPEC

9008018070

main90080-18070

5 parts on this diagram · 1 diagram in section
