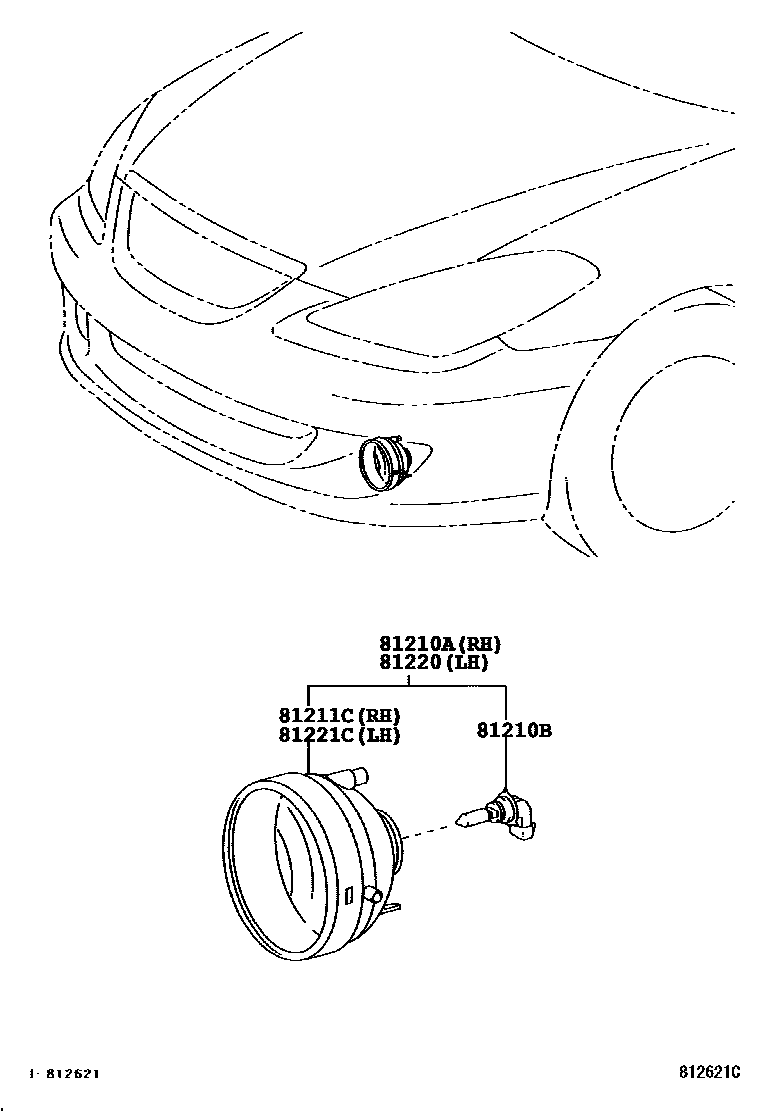

FOG LAMP

0001 1 0002 1

81210ALAMP ASSY, FOG, RH

main81210-06070iACV30,MCV31..CP200605-200808

main81210-AA030iACV30,MCV31200307-200605

81210BBULB, FOG LAMP

main90981-AD002×2iACV30,MCV31..5F,5FC200307-200605

12V 45W

main90981-AD006iMCV31..CVT200605

12V 55W

81211CLAMP UNIT, FOG LAMP, RH

main81211-AA030iACV30..4FC200307-200503

81220LAMP ASSY, FOG, LH

main81210-AA030iACV30,MCV31200307-200605

main81220-06070iACV30,MCV31..CP200605-200808

81221CLAMP UNIT, FOG LAMP, LH

main81211-AA030iACV30..4FC200307-200503

5 parts on this diagram · 2 diagrams in section
