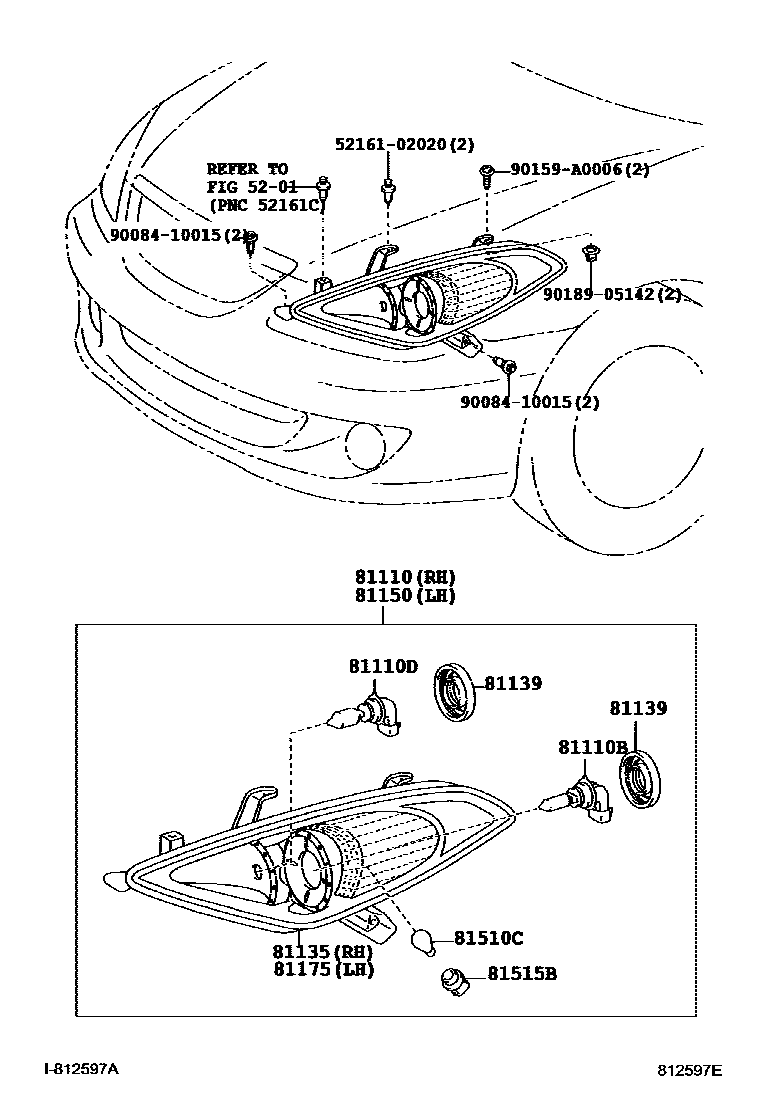

HEADLAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81110HEADLAMP ASSY, RH

main81110-06420iACV30,MCV31200605-200710

main81110-06421iACV30,MCV31200711-200803

main81110-06422iMCV31..CVT200804

main81110-AA080iACV30,MCV31200307-200605

main81110-06430iACV30,MCV31..SLE200605-200710

HEADLAMP-LOW:HID HI:HALOGEN

main81110-06431iACV30,MCV31..SLE200711-200803

HEADLAMP-LOW:HID HI:HALOGEN

main81110-06432iMCV31..CVT..SLE200804

HEADLAMP-LOW:HID HI:HALOGEN

main81110-06440iACV30,MCV31..SE200605-200710

SPORT PACKAGE(HID HEAD LAMP)

main81110-06441iACV30,MCV31..SE200711-200803

SPORT PACKAGE(HID HEAD LAMP)

main81110-06442iMCV31..CVT..SE200804

SPORT PACKAGE(HID HEAD LAMP)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-AD001×2iACV30..4FC200307-200503

12V 55W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iACV30..4FC200307-200503

12V 65W

main90981-13066×2iACV30,MCV31..CP200605-200808

12V 65W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-06420iMCV31..CVT200605

main81130-AA080iACV30,MCV31..5F,5FC200307-200605

main81130-06430iMCV31..CVT..SLE200605

HEADLAMP-LOW:HID HI:HALOGEN

main81130-06440iMCV31..CVT..SE200605

SPORT PACKAGE(HID HEAD LAMP)

81139COVER, HEADLAMP SOCKET

main90069-91008×2iACV30,MCV31..CP200605-200808

81150HEADLAMP ASSY, LH

main81150-06420iACV30,MCV31200605-200710

main81150-06421iACV30,MCV31200711-200803

main81150-06422iMCV31..CVT200804

main81150-AA080iACV30,MCV31200307-200605

main81150-06430iACV30,MCV31..SLE200605-200710

HEADLAMP-LOW:HID HI:HALOGEN

main81150-06431iACV30,MCV31..SLE200711-200803

HEADLAMP-LOW:HID HI:HALOGEN

main81150-06432iMCV31..CVT..SLE200804

HEADLAMP-LOW:HID HI:HALOGEN

main81150-06440iACV30,MCV31..SE200605-200710

SPORT PACKAGE(HID HEAD LAMP)

main81150-06441iACV30,MCV31..SE200711-200803

SPORT PACKAGE(HID HEAD LAMP)

main81150-06442iMCV31..CVT..SE200804

SPORT PACKAGE(HID HEAD LAMP)

81175UNIT ASSY, HEADLAMP, LH

main81170-06420iACV30,MCV31..CP200605-200808

main81170-AA080iACV30..4FC200307-200503

main81170-06430iACV30,MCV31..CP..SLE200605-200808

HEADLAMP-LOW:HID HI:HALOGEN

main81170-06440iACV30,MCV31..CP..SE200605-200808

SPORT PACKAGE(HID HEAD LAMP)

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-AF001×2iACV30,MCV31200605-200710

12V 30/8W

main90981-AF004×2iMCV31..CVT200711

12V 30/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81003×2iACV30,MCV31..CP200605-200808

main90075-60060×2iACV30..4FC200307-200503

5216102020CUSHION, REAR BUMPER GUARD, NO.1

main52161-02020

9008410015

main90084-10015

90159A0006

main90159-A0006

9018905142

main90189-05142

14 parts on this diagram · 2 diagrams in section
