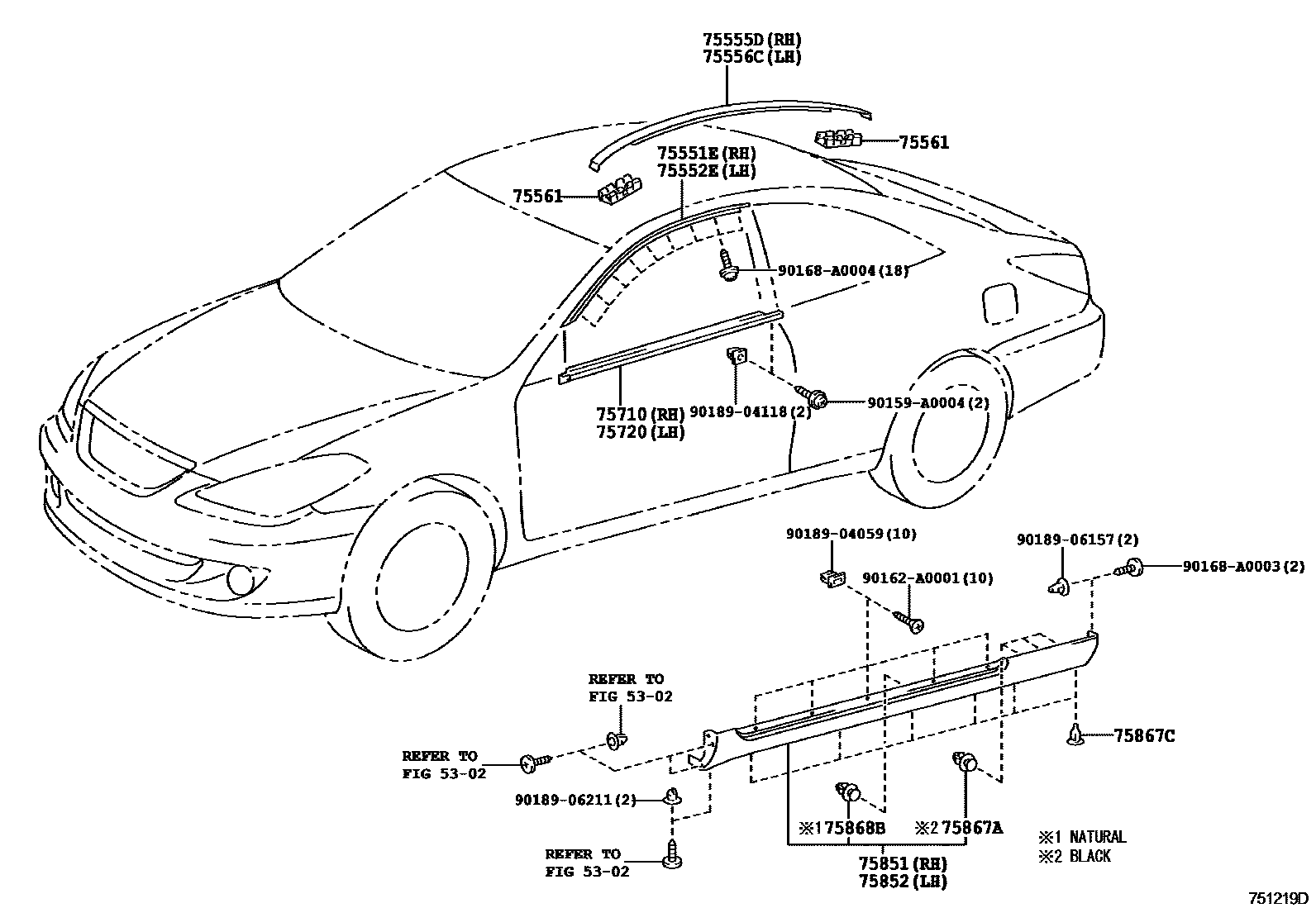

SIDE MOULDING

0001 1 0002 1

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-06030iMCV31..CVT200402-200605

main75551-AA020iACV30,MCV31..CP200605-200808

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-06030iMCV31..CVT200402-200605

main75552-AA020iACV30,MCV31..CP200605-200808

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-AA020iACV30..4FC200307-200503

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-AA020iACV30..4FC200307-200503

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iACV30..4FC200307-200503

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-06060iMCV31..CVT200605-200812

main75710-AA040iACV30,MCV31..CP200605-200808

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-06060iMCV31..CVT200605-200812

main75720-AA050iACV30,MCV31..CP200605-200808

75851MOULDING, ROCKER PANEL, RH

main75851-AA030-A0iACV30..4FC; ACV30..4FC..SE200307-200503

SPORT PACKAGE,WHITE PEARL CS.,071; WHITE PEARL CS.,071

main75851-AA030-A1iACV30,MCV31..CP200605-200808

WHITE PEARL CS.,070

main75851-AA030-B0iACV30,MCV31..5F,5FC; ACV30,MCV31..CP..(5F,5FC)..SE200307-200605

SILVER ME.,1C8; SPORT PACKAGE,SILVER ME.,1C8

main75851-AA030-B1iACV30,MCV31200605-200707

SILVER ME.,1D4

main75851-AA030-B2iMCV31..CVT200605

GRAY ME.,1G3

main75851-AA030-B3iACV30,MCV31..CP200707-200808

SILVER ME.,1F7

main75851-AA030-C0iACV30,MCV31..5F,5FC; ACV30,MCV31..CP..(5F,5FC)..SE200307-200605

BLACK,202; SPORT PACKAGE,BLACK,202

main75851-AA030-D0iACV30,MCV31..5F,5FC; ACV30,MCV31..CP..(5F,5FC)..SE200307-200605

SPORT PACKAGE,SUPER RED 5,3P0; SUPER RED 5,3P0

main75851-AA030-E0iACV30..4FC; ACV30..4FC..SE200307-200503

BEIGE M. M.,4Q2; SPORT PACKAGE,BEIGE M. M.,4Q2

main75851-AA030-J0iACV30..4FC; ACV30..4FC..SE200307-200503

BLUE ME.,8Q5; SPORT PACKAGE,BLUE ME.,8Q5

main75851-AA030-J1iACV30..4FC; ACV30..4FC..SE200307-200503

DK.BLUE M.M.,8R9; SPORT PACKAGE,DK.BLUE M.M.,8R9

main75851-AA030-J2iACV30,MCV31..CP200612-200808

BLUE ME.,8T7

main75851-AA030-J3iMCV31200810-200812

DK.BLUE MC.,8T5

main75851-06909iACV30,MCV31..CP..SE200605-200808

SPORT PACKAGE(HID HEAD LAMP)

75852MOULDING, ROCKER PANEL, LH

main75852-AA030-A0iACV30..4FC; ACV30..4FC..SE200307-200503

SPORT PACKAGE,WHITE PEARL CS.,071; WHITE PEARL CS.,071

main75852-AA030-A1iACV30,MCV31..CP200605-200808

WHITE PEARL CS.,070

main75852-AA030-B0iACV30,MCV31..5F,5FC; ACV30,MCV31..CP..(5F,5FC)..SE200307-200605

SILVER ME.,1C8; SPORT PACKAGE,SILVER ME.,1C8

main75852-AA030-B1iACV30,MCV31200605-200707

SILVER ME.,1D4

main75852-AA030-B2iMCV31..CVT200605

GRAY ME.,1G3

main75852-AA030-B3iACV30,MCV31..CP200707-200808

SILVER ME.,1F7

main75852-AA030-C0iACV30,MCV31..5F,5FC; ACV30,MCV31..CP..(5F,5FC)..SE200307-200605

BLACK,202; SPORT PACKAGE,BLACK,202

main75852-AA030-D0iACV30..4FC; ACV30..4FC..SE200307-200503

SPORT PACKAGE,SUPER RED 5,3P0; SUPER RED 5,3P0

main75852-AA030-E0iACV30,MCV31..5F,5FC; ACV30,MCV31..CP..(5F,5FC)..SE200307-200605

BEIGE M. M.,4Q2; SPORT PACKAGE,BEIGE M. M.,4Q2

main75852-AA030-J0iACV30,MCV31..5F,5FC; ACV30,MCV31..CP..(5F,5FC)..SE200307-200605

BLUE ME.,8Q5; SPORT PACKAGE,BLUE ME.,8Q5

main75852-AA030-J1iACV30;MCV31..SE;MCV31..CP..SLE200605-200612

DK.BLUE M.M.,8R9

main75852-AA030-J2iACV30,MCV31..CP200612-200808

BLUE ME.,8T7

main75852-AA030-J3iMCV31200810-200812

DK.BLUE MC.,8T5

main75852-06909iACV30,MCV31..CP..SE200605-200808

SPORT PACKAGE(HID HEAD LAMP)

75867ACLIP, ROCKER PANEL MOULDING

main75867-AA010×6iACV30,MCV31..5F,5FC; ACV30,MCV31..CP..(5F,5FC)..SE200307-200605

SPORT PACKAGE

75867CCLIP, ROCKER PANEL MOULDING

main75867-06020×12iMCV31..CVT200402-200601

main75867-30110×12iACV30,MCV31..CP; ACV30,MCV31..CP..SE200307-200602

SPORT PACKAGE

main75867-30120×12iMCV31..CVT200605

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75868-06020×2iACV30,MCV31..CP200605-200808

90159A0004

main90159-A0004

90162A0001

main90162-A0001

90168A0003

main90168-A0003

90168A0004

main90168-A0004

9018904059

main90189-04059

9018904118

main90189-04118

9018906157

main90189-06157

9018906211

main90189-06211

21 parts on this diagram · 2 diagrams in section
