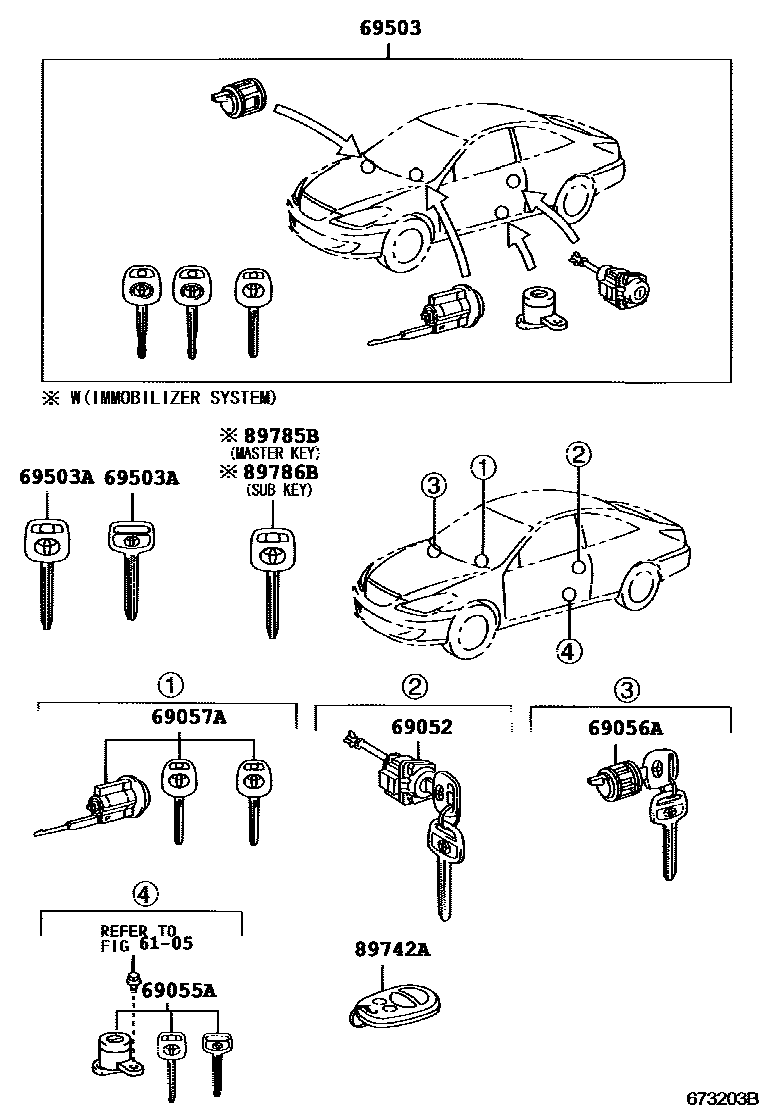

LOCK CYLINDER SET

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-AA010iACV30..4FC200307-200503

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69053-AA010iACV30,MCV31200307-200605

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-AE010iACV30..4FC200307-200503

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-AA010iACV30..4FC200307-200503

69503CYLINDER SET, LOCK

main69005-AA010iACV30..4FC200307-200503

69503AKEY, BLANK

main90999-00186iACV30..4FC200307-200503

MASTER KEY

main90999-00199iACV30..4FC200307-200503

MASTER KEY,W(*68)

89742ATRANSMITTER, DOOR CONTROL

main89742-AA040iACV30..4FC200307-200503

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08020iACV30..4FC200307-200503

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08020iACV30..4FC200307-200503

BLANK KEY

10 parts on this diagram · 1 diagram in section
