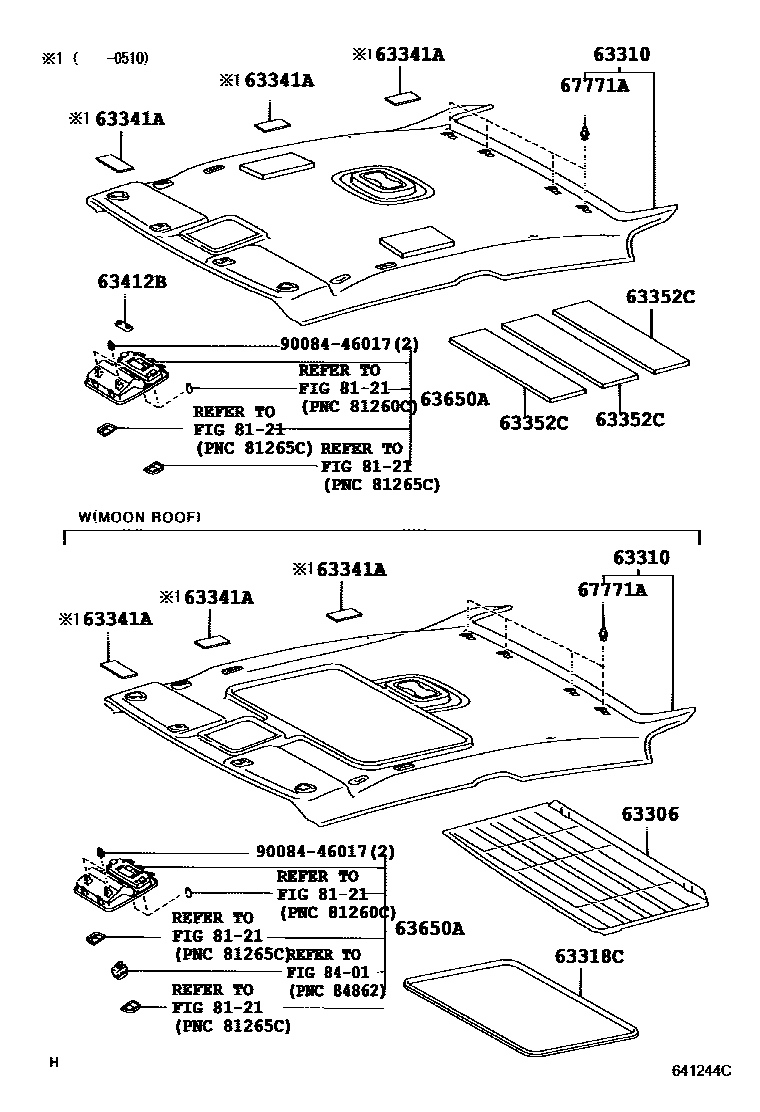

ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
IVORY,TRIM0#; SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),IVORY,TRIM0#
STONE,TRIM1#; SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),STONE,TRIM1#
IVORY,TRIM0#; WITH(MOON ROOF),IVORY,TRIM0#
STONE,TRIM1#; WITH(MOON ROOF),STONE,TRIM1#
IVORY,TRIM0#; WITH(MOON ROOF),IVORY,TRIM0#
STONE,TRIM1#; WITH(MOON ROOF),STONE,TRIM1#
63310HEADLINING ASSY, ROOF
IVORY,TRIM0#
DK.GRAY,TRIM1#; DK.GRAY,TRIM10,11
CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),IVORY,TRIM0#; IVORY,TRIM0#; SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),IVORY,TRIM0#
main63311-AA140-B0supersedes 63311-AA150-B0iACV30,MCV31..CP..(5F,5FC)..SE; ACV30,MCV31..CP..5FC..SE; ACV30,MCV31..CP..5FC..SLE200307-200605
CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),STONE,TRIM10,11; STONE,TRIM1#; SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),STONE,TRIM10,11
CANADA SPEC&SRS AIR BAG-W/CURTAIN,IVORY,TRIM0#; SRS AIR BAG-W/CURTAIN,IVORY,TRIM0#
CANADA SPEC&SRS AIR BAG-W/CURTAIN,STONE,TRIM10,11; SRS AIR BAG-W/CURTAIN,STONE,TRIM10,11
main63311-AA160-A0supersedes 63311-AA150-A0iACV30,MCV31..CP..5FC..SE; ACV30,MCV31..CP..SE; ACV30,MCV31..CP..SLE200605-200808
CANADA SPEC&WITH(MOON ROOF)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,IVORY,TRIM0#; CANADA SPEC&WITH(MOON ROOF),IVORY,TRIM0#; IVORY,TRIM0#; WITH(MOON ROOF)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,IVORY,TRIM0#; WITH(MOON ROOF),IVORY,TRIM0#
CANADA SPEC&WITH(MOON ROOF)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,STONE,TRIM10,11; CANADA SPEC&WITH(MOON ROOF),STONE,TRIM10,11; STONE,TRIM1#; WITH(MOON ROOF)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,STONE,TRIM10,11; WITH(MOON ROOF),STONE,TRIM10,11
63318CMOULDING, SUN ROOF OPENING TRIM
L=2375,CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE)&SRS AIR BAG-W/CURTAIN,IVORY,TRIM0#; L=2375,CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),IVORY,TRIM0#; L=2375,IVORY,TRIM0#; L=2375,SRS AIR BAG-W/CURTAIN,IVORY,TRIM0#; L=2375,SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE)&SRS AIR BAG-W/CURTAIN,IVORY,TRIM0#; L=2375,SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),IVORY,TRIM0#
main63318-0E010-B1iACV30,MCV31..CP..(5F,5FC)..SE; ACV30,MCV31..CP..5FC..SE; ACV30,MCV31..CP..5FC..SLE200307-200605
L=2375,CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE)&SRS AIR BAG-W/CURTAIN,STONE,TRIM10,11; L=2375,CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),STONE,TRIM10,11; L=2375,SRS AIR BAG-W/CURTAIN,STONE,TRIM1#; L=2375,STONE,TRIM1#; L=2375,SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE)&SRS AIR BAG-W/CURTAIN,STONE,TRIM10,11; L=2375,SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),STONE,TRIM10,11
63341ASILENCER, ROOF, NO.1
CANADA SPEC&WITH(MOON ROOF); CANADA SPEC&WITH(MOON ROOF)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER; WITH(MOON ROOF); WITH(MOON ROOF)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER
main63341-AA030×14iACV30,MCV31..CP..(4FC,5FC)..SE; ACV30,MCV31..CP..SE; ACV30,MCV31..CP..SLE200307-200510
CANADA SPEC; CANADA SPEC&SRS AIR BAG-W/CURTAIN; CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE); CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE)&SRS AIR BAG-W/CURTAIN; SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE); SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE)&SRS AIR BAG-W/CURTAIN
63352CPAD, ROOF HEADLINING, END
63412BRETAINER, ROOF CONSOLE
63650ABOX ASSY, ROOF CONSOLE
IVORY,TRIM0#
DARK STONE,TRIM1#
SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),IVORY,TRIM0#
SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE),STONE,TRIM1#
67771ARETAINER, ROOF HEADLINING
8121INTERIOR LAMP
9008446017
main90084-46017
10 parts on this diagram · 2 diagrams in section
