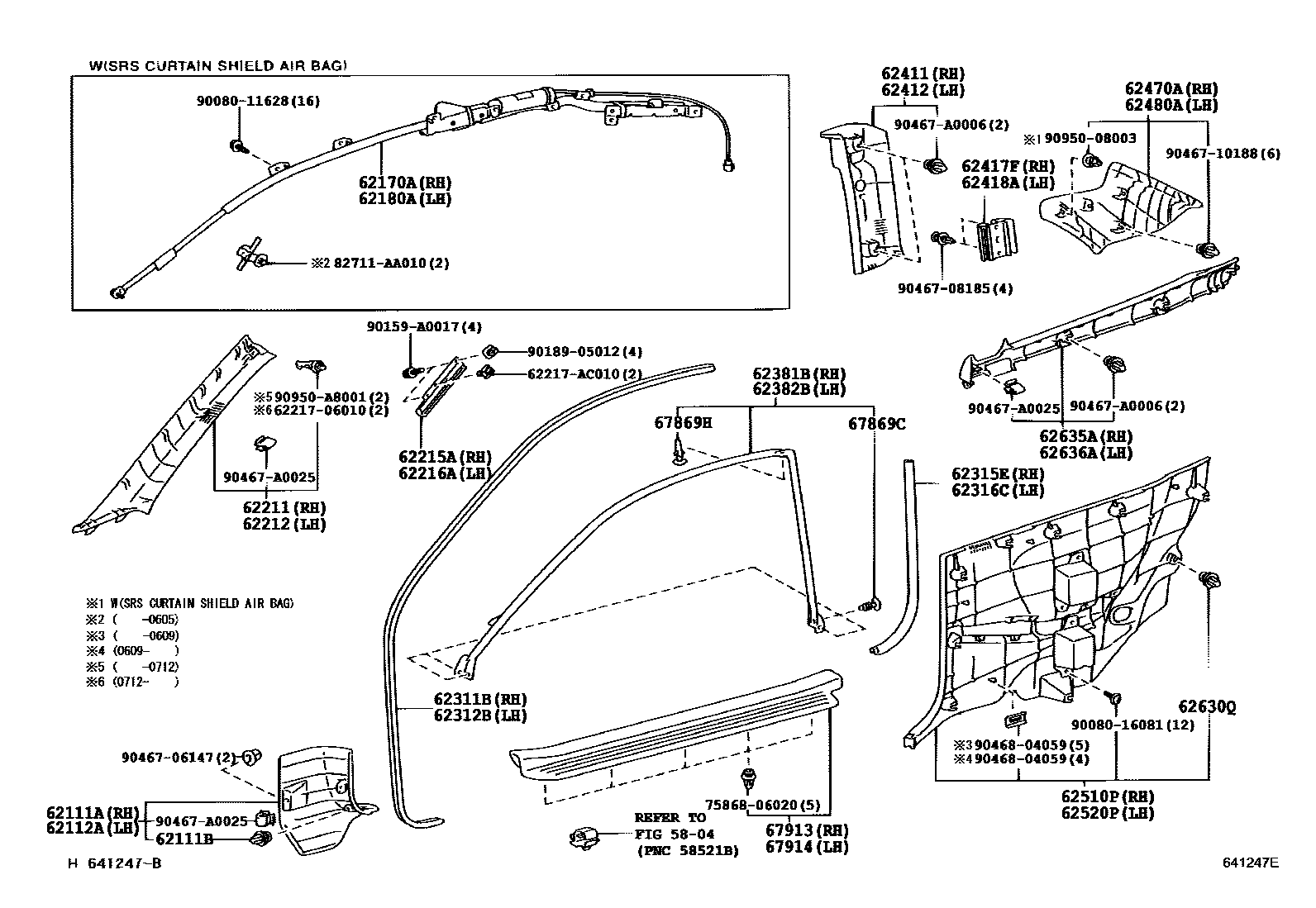

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

5804

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-AA030-A0iACV30..4FC200307-200808

IVORY,TRIM0#

main62101-AA030-B0iACV30,MCV31..(5F,5FC)..SE200307-200808

DK. STONE,TRIM1#

main62101-AA030-B0iACV30,MCV31..(5F,5FC)..SE200307-200808

DK. STONE,TRIM10

main62101-AA030-B1iACV30,MCV31..(5F,5FC)..SE200307-200808

DK.GRAY,TRIM11

62111BCLIP(FOR COWL SIDE TRIM)

main90467-A0006iACV30..4FC200307-200808

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-AA030-A0iACV30..4FC200307-200808

IVORY,TRIM0#

main62102-AA030-B0iACV30..4FC..SE200307-200808

DK. STONE,TRIM10

main62102-AA030-B0iACV30..SLE200307-200808

DK. STONE,TRIM1#

main62102-AA030-B1iACV30..4FC..SE200307-200808

DK.GRAY,TRIM11

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-AA013iACV30,MCV31..CP200605-200808

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-AA013iACV30,MCV31..CP200605-200808

62211GARNISH, FRONT PILLAR, RH

main62210-AA060-A1iACV30,MCV31..5F,5FC200307-200712

IVORY,TRIM0#

sub62210-AA061

sub62217-06010

main62210-AA060-B1iACV30,MCV31..CP..SLE200605-200712

STONE,TRIM10,11

sub62210-AA061

sub62217-06010

main62210-AA060-B1iACV30..4FC200307-200605

DARK STONE,TRIM1#

sub62210-AA061

sub62217-06010

main62210-AA060-B1iACV30,MCV31..CP..SE200605-200712

STONE,TRIM1#

sub62210-AA061

sub62217-06010

main62210-AA060-B2iMCV31..CVT..SE200402-200712

DK.GRAY,TRIM1#

sub62210-AA061

sub62217-06010

main62210-AA060-B2iMCV31..CVT..SE200605-200712

DK.GRAY,TRIM10,11

sub62210-AA061

sub62217-06010

main62210-AA061-A1iMCV31..CVT200712-200808

IVORY,TRIM0#

main62210-AA061-B1iACV30,MCV31..CP..SE200712-200808

STONE,TRIM1#

main62210-AA061-B1iACV30,MCV31..CP..SLE200712-200808

STONE,TRIM10,11

main62210-AA061-B2iMCV31..CVT..SE200712

DK.GRAY,TRIM1#

main62210-AA061-B2iMCV31..CVT..SE200712

DK.GRAY,TRIM10,11

62212GARNISH, FRONT PILLAR, LH

main62220-AA060-A1iACV30..4FC200307-200712

IVORY,TRIM0#

sub62220-AA061

sub62217-06010

main62220-AA060-B1iACV30,MCV31..CP..SE200605-200712

STONE,TRIM10,11

sub62220-AA061

sub62217-06010

main62220-AA060-B1iACV30,MCV31..5F,5FC200307-200605

DARK STONE,TRIM1#

sub62220-AA061

sub62217-06010

main62220-AA060-B1iACV30,MCV31..CP..SLE200605-200712

STONE,TRIM1#

sub62220-AA061

sub62217-06010

main62220-AA060-B2iMCV31..CVT..SLE200402-200712

DK.GRAY,TRIM1#

sub62220-AA061

sub62217-06010

main62220-AA060-B2iMCV31..CVT..SE200605-200712

DK.GRAY,TRIM10,11

sub62220-AA061

sub62217-06010

main62220-AA061-A1iACV30,MCV31..CP200712-200808

IVORY,TRIM0#

main62220-AA061-B1iACV30,MCV31..CP..SLE200712-200808

STONE,TRIM10,11

main62220-AA061-B1iACV30,MCV31..CP..SLE200712-200808

STONE,TRIM1#

main62220-AA061-B2iMCV31..CVT..SE200712

DK.GRAY,TRIM10,11

main62220-AA061-B2iMCV31..CVT..SE200712

DK.GRAY,TRIM1#

62215AINSERT, FRONT PILLAR GARNISH, RH

main62215-AA020iACV30,MCV31200307-200312

sub62215-AA021

main62215-AA021iACV30,MCV31..5F,5FC200312-200605

main62215-AA030iACV30,MCV31..CP200605-200808

62216AINSERT, FRONT PILLAR GARNISH, LH

main62216-AA020iACV30,MCV31200307-200312

sub62216-AA021

main62216-AA021iACV30..4FC200312-200605

main62216-AA030iACV30,MCV31..CP200605-200808

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06070-A0iMCV31..CVT200402-200605

IVORY,TRIM0#

main62311-06070-B1iMCV31..CVT..SE200402-200605

DK.GRAY,TRIM1#

main62311-06070-B1iMCV31..CVT..SLE200605

DK.GRAY,TRIM10,11

main62311-AA040-A0iACV30,MCV31..CP200307-200808

IVORY,TRIM0#

main62311-AA040-B0iACV30,MCV31..CP..SE200307-200808

DK. STONE,TRIM10

main62311-AA040-B0iACV30,MCV31..CP..SE200307-200808

DK. STONE,TRIM1#

main62311-AA040-B1iACV30,MCV31..CP..SE200307-200808

DK.GRAY,TRIM11

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06070-A0iMCV31..CVT200402-200605

IVORY,TRIM0#

main62312-06070-B1iMCV31..CVT..SLE200402-200605

DK.GRAY,TRIM1#

main62312-06070-B1iMCV31..CVT..SE200605

DK.GRAY,TRIM10,11

main62312-AA040-A0iACV30,MCV31..CP200307-200808

IVORY,TRIM0#

main62312-AA040-B0iACV30,MCV31..CP..SLE200307-200808

DK. STONE,TRIM1#

main62312-AA040-B0iACV30,MCV31..CP..SE200307-200808

DK. STONE,TRIM10

main62312-AA040-B1iACV30,MCV31..CP..SE200307-200808

DK.GRAY,TRIM11

62315EWEATHERSTRIP, FRONT DOOR OPENING TRIM, REAR RH

main62315-AA020iACV30..4FC200307-200808

62316CWEATHERSTRIP, FRONT DOOR OPENING TRIM, REAR LH

main62316-AA020iACV30,MCV31..CP..(5F,5FC)200307-200808

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-AA030iACV30,MCV31..CP..(5F,5FC)200307-200808

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-AA030iACV30,MCV31..CP..(5F,5FC)200307-200808

62411GARNISH, CENTER PILLAR, RH

main62410-AA030-A1iACV30,MCV31..CP..(5F,5FC)200307-200808

IVORY,TRIM0#

main62410-AA030-B1iACV30,MCV31..CP..(5F,5FC)..SE200307-200808

DARK STONE,TRIM10,11

main62410-AA030-B1iACV30,MCV31..CP..(5F,5FC)..SE200307-200808

DARK STONE,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62420-AA030-A1iACV30..4FC200307-200808

IVORY,TRIM0#

main62420-AA030-B1iACV30,MCV31..CP..SLE200307-200808

DARK STONE,TRIM1#

main62420-AA030-B1iACV30..SLE200307-200808

DARK STONE,TRIM10,11

62417FPAD, CENTER PILLAR GARNISH, RH

main62417-AA020iACV30..4FC200307-200808

62418APAD, CENTER PILLAR GARNISH, LH

main62417-AA020iACV30..4FC200307-200808

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-AA050-A1iACV30..4FC200307-200605

IVORY,TRIM0#

main62470-AA050-B1iACV30,MCV31..CP..(5F,5FC)..SE200307-200605

DARK STONE,TRIM10,11

main62470-AA050-B1iACV30,MCV31..CP..(5F,5FC)..SE200307-200605

DARK STONE,TRIM1#

main62470-AA061-A1iACV30,MCV31..CP200605-200808

IVORY,TRIM0#

main62470-AA061-B1iACV30,MCV31..CP..SE200605-200808

STONE,TRIM1#

main62470-AA061-B1iACV30,MCV31..CP..SE200605-200808

STONE,TRIM10,11

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-AA050-A1iACV30,MCV31..CP..(5F,5FC)200307-200605

IVORY,TRIM0#

main62480-AA050-B1iACV30..SLE200307-200605

DARK STONE,TRIM10,11

main62480-AA050-B1iACV30..4FC..SE200307-200605

DARK STONE,TRIM1#

main62480-AA061-A1iACV30,MCV31..CP200605-200808

IVORY,TRIM0#

main62480-AA061-B1iACV30,MCV31..CP..SE200605-200808

STONE,TRIM10,11

main62480-AA061-B1iACV30,MCV31..CP..SE200605-200808

STONE,TRIM1#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-AA100-A1iACV30,MCV31..CP..(5F,5FC)200307-200808

IVORY,TRIM0#

main62510-AA100-B1iACV30..4FC..SE200307-200808

DARK STONE,TRIM1#

main62510-AA100-B1iACV30..4FC..SE200307-200808

DARK STONE,TRIM10

main62510-AA100-B2iACV30..4FC..SE200307-200808

DK.GRAY,TRIM11

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-AA100-A1iACV30,MCV31..CP..(5F,5FC)200307-200808

IVORY,TRIM0#

main62520-AA100-B1iACV30..4FC..SE200307-200808

DARK STONE,TRIM10

main62520-AA100-B1iACV30..SLE200307-200808

DARK STONE,TRIM1#

main62520-AA100-B2iACV30,MCV31..CP..SE200307-200808

DK.GRAY,TRIM11

62630QCLIP (FOR QUARTER TRIM)

main90467-10188iACV30,MCV31..CP200310-200808

BLUE

main90467-A0006iACV30,MCV31..CP200307-200808

NATURAL

62635APANEL, QUARTER TRIM, UPPER RH

main62635-AA010-B0iACV30..4FC..SE200307-200808

DK.GRAY,TRIM10,11

main62635-AA010-B0iACV30..SLE200307-200808

DK.GRAY,TRIM1#

main62635-AA010-E0iACV30..4FC200307-200808

ORCHID BROWN,TRIM0#

62636APANEL, QUARTER TRIM, UPPER LH

main62636-AA010-B0iACV30,MCV31..CP..SLE200307-200808

DK.GRAY,TRIM10,11

main62636-AA010-B0iACV30..SLE200307-200808

DK.GRAY,TRIM1#

main62636-AA010-E0iACV30,MCV31..CP200307-200808

ORCHID BROWN,TRIM0#

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-20030iACV30..4FC200307-200808

67869HCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-20070iACV30,MCV31..CP..(5F,5FC)200307-200808

67913PLATE, FRONT DOOR SCUFF, RH

main67913-AA030-A0iACV30..4FC200307-200808

IVORY,TRIM0#

main67913-AA030-B0iACV30..4FC..SE200307-200808

DK. STONE,TRIM10

main67913-AA030-B0iACV30..SLE200307-200808

DK. STONE,TRIM1#

main67913-AA030-B1iACV30,MCV31..CP..SE200307-200808

DK.GRAY,TRIM11

67914PLATE, FRONT DOOR SCUFF, LH

main67914-AA040-A0iACV30,MCV31..5F,5FC200307-200808

IVORY,TRIM0#

main67914-AA040-B0iACV30..4FC..SE200307-200808

DK. STONE,TRIM1#

main67914-AA040-B0iACV30..4FC..SE200307-200808

DK. STONE,TRIM10

main67914-AA040-B1iACV30,MCV31..CP..SE200307-200808

DK.GRAY,TRIM11

6221706010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-06010

62217AC010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-AC010

7586806020ORNAMENT, BACK DOOR OUTSIDE, RH

main75868-06020

82711AA010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-AA010

9008011628

main90080-11628

9008016081

main90080-16081

90159A0017

main90159-A0017

9018905012

main90189-05012

9046706147

main90467-06147

9046708185

main90467-08185

9046710188

main90467-10188

90467A0006

main90467-A0006

90467A0025

main90467-A0025

9046804059

main90468-04059

9095008003

main90950-08003

90950A8001

main90950-A8001

47 parts on this diagram · 2 diagrams in section
