RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

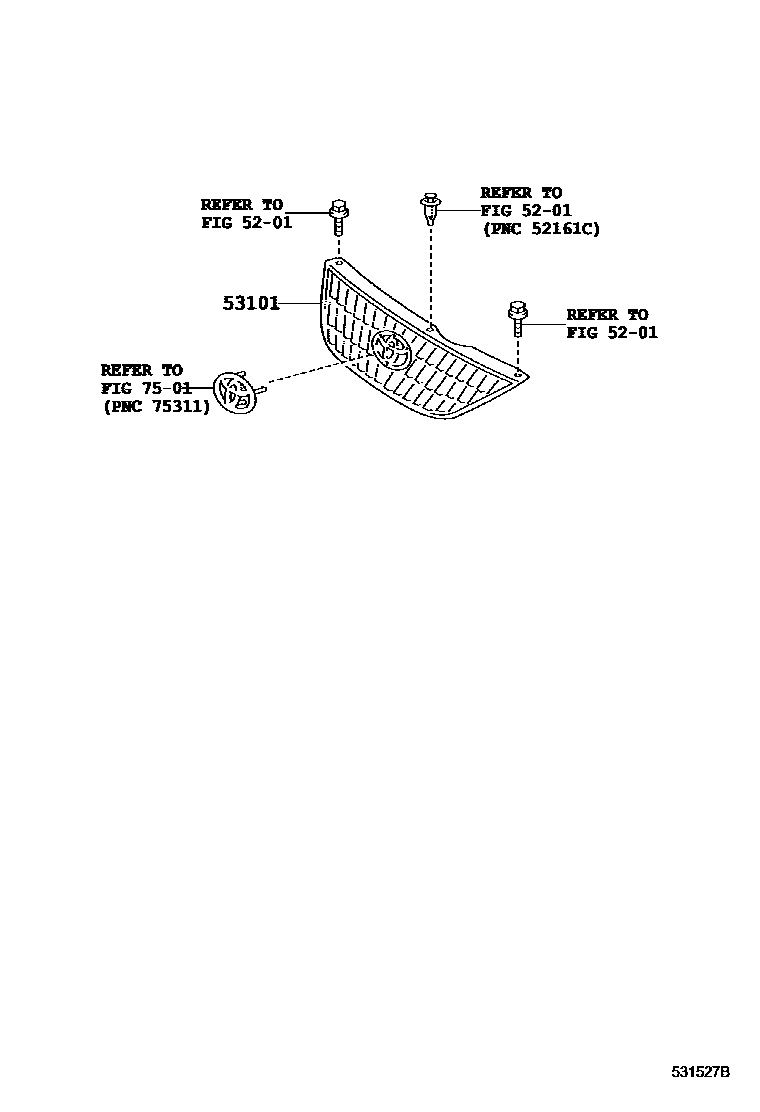

53101GRILLE SUB-ASSY, RADIATOR

main53111-06220iACV30,MCV31200605-200812

NO PAINT REQ.

main53111-AA070iACV30,MCV31200307-200605

NO PAINT REQ.

main53111-06230iACV30,MCV31..SE200605-200812

NO PAINT REQ.,SPORT PACKAGE(HID HEAD LAMP)

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

3 parts on this diagram · 1 diagram in section
